Product Description

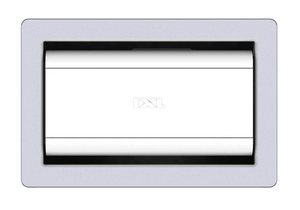

Tastic Luminate Vent module features a sleek and contemporary fascia design, with powerful 400m3/hr airflow extraction. Proudly designed and manufactured in Australia.

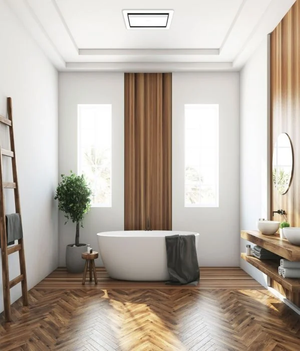

Tastic Luminate Vent module is suitable for above shower installation with an IPX4 rating. Position it over the shower, in the bathroom, laundry, toilet or powder room to banish odours and water vapour effectively, without the need for a bulky extraction fan.
This product is a ventilation fan only. There is no heat or light.
Tastic Luminate is compliant with NCC in Australia, and G4 Building Codes and Healthy Home Standard for bathrooms and kitchens in New Zealand.
DESCRIPTION:
- Powerful Extraction: 400m3/hr Airflow
- Suitable for above shower installation: IPX4
- Designed and manufactured in Australia
- Exhaust Fan with 6m Duct and Exterior Outlet Vent
SPECIFICATIONS:
- UPC: 9332048028892
- Finish/Colours: Silver
- Airflow Extraction (m3/h): 400
- Ducted: Yes
- Back Draught Flaps: Yes
- Clearance Required above Unit (mm): 15
- Current Ratings (Amps): 0.3
- Cutout Size (mm): 214 x 332
- Exhaust Capacity (l/s): 111
- Exhaust Capacity (m3/h): 400
- Fan Size (mm): 170
- Fascia Dimensions (mm): 243W x 367D
- Inline Fan Ducted to Outside: Yes (6m of ducting included)
- IP Rating: IPX4
- Made in Australia: Yes
- Max. Height of Unit (mm): 230
- Supply (Volts): 240
- Area Suitability in Room without Shower: 20.8m2
- Area Suitability in Room with Shower: 8.3m2
- Total Ceiling Cavity Required (mm): 245
- Watts (Fan in Brackets): 0 (75)
- Weight of Unit (kg): 4.2
- Power Cable Length (m): 1.2
- Unit Dimensions (mm): 367 W x 243L x 200D
WARRANTY:
- 5 Year In-Home Warranty.
- 2-Year Replacement Warranty on In-Line Exhaust.
