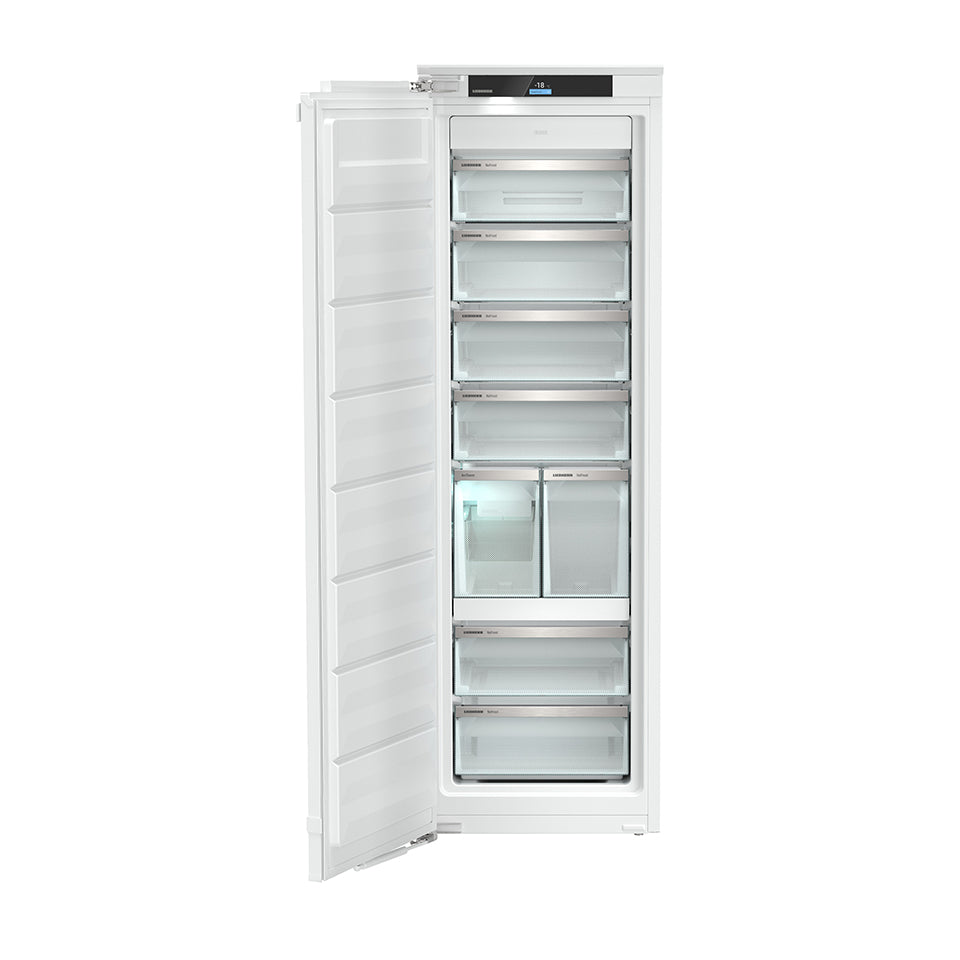

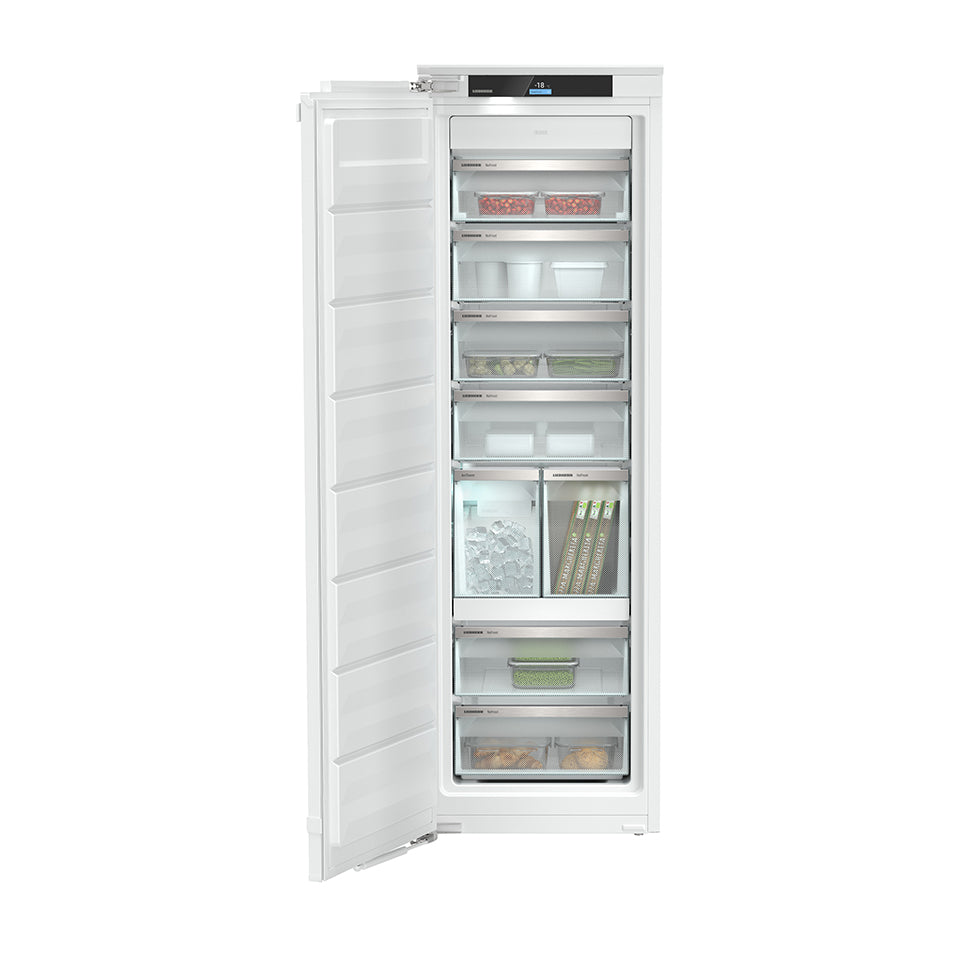

Liebherr SIFNh 5188 Integrated 'Peak' Freezer

Product Description

• Integrierbarer Gefrierschrank mit NoFrost und IceTower
• Aperture dimensions height/width/depth: 177.2 - 178.8 / 56 - 57 / 55.0 cm
• Noise level: 35 dB

FEATURES:

• Touch & Swipe display: Control of your Liebherr at your fingertips: thanks to the Touch & Swipe display, you can operate your refrigerator intuitively and with ease. Simply select functions such as SuperCool on the colour display by tapping and swiping. The temperature is controlled just as easily. And, what if you are not actively using the display? Well, it then shows you the actual temperature.

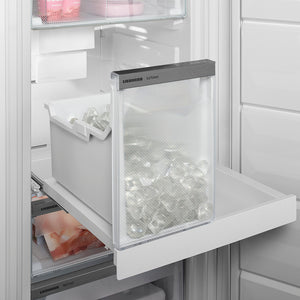

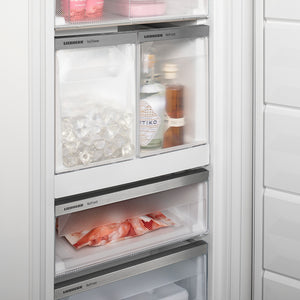

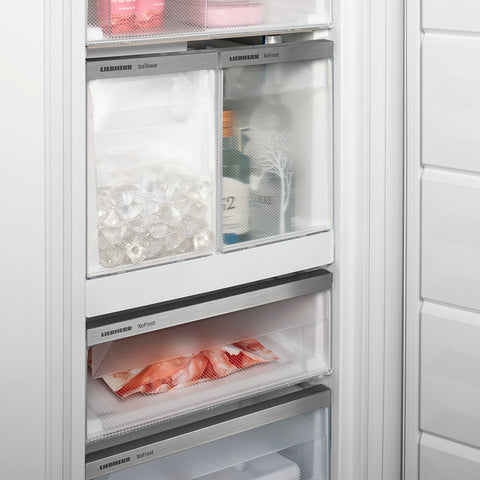

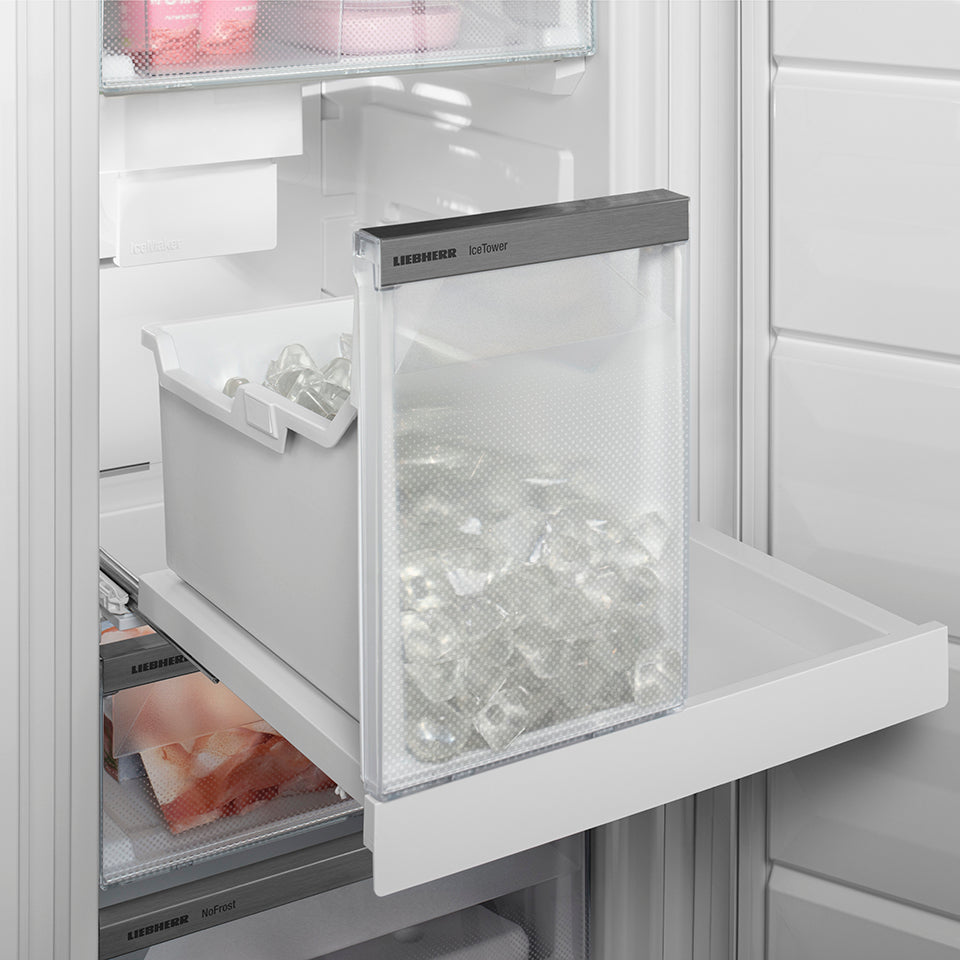

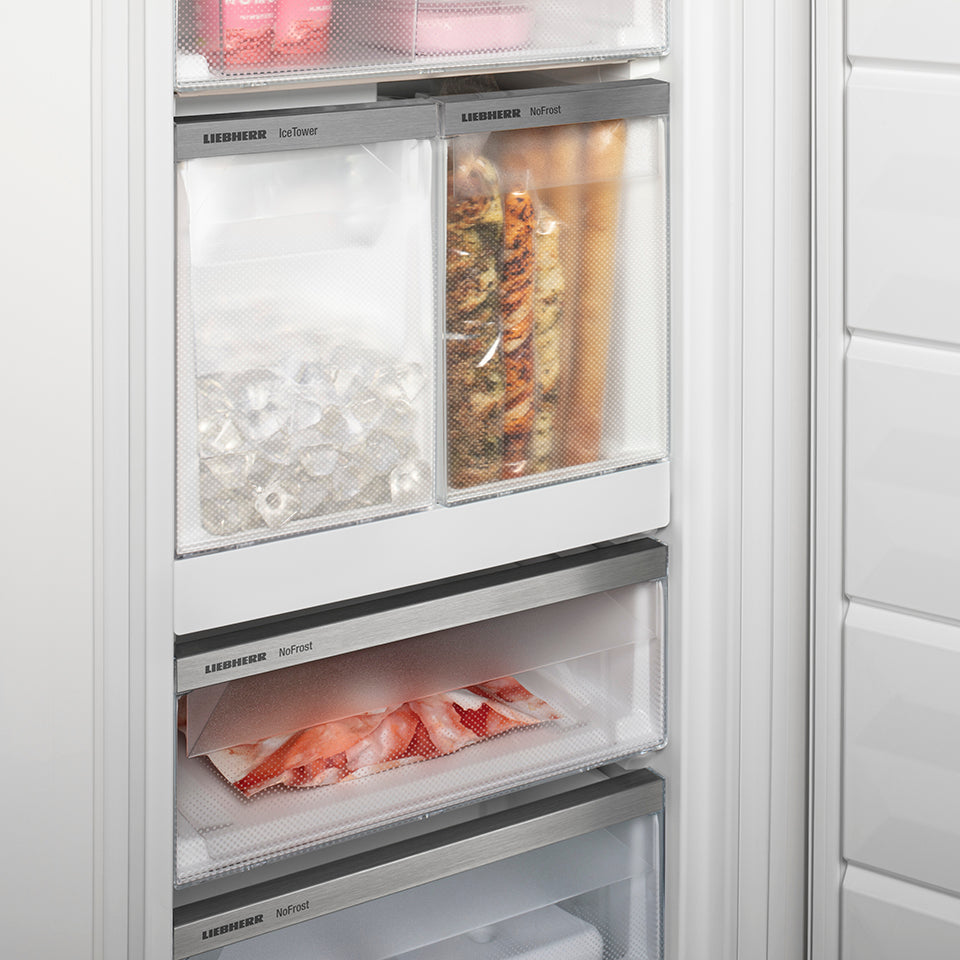

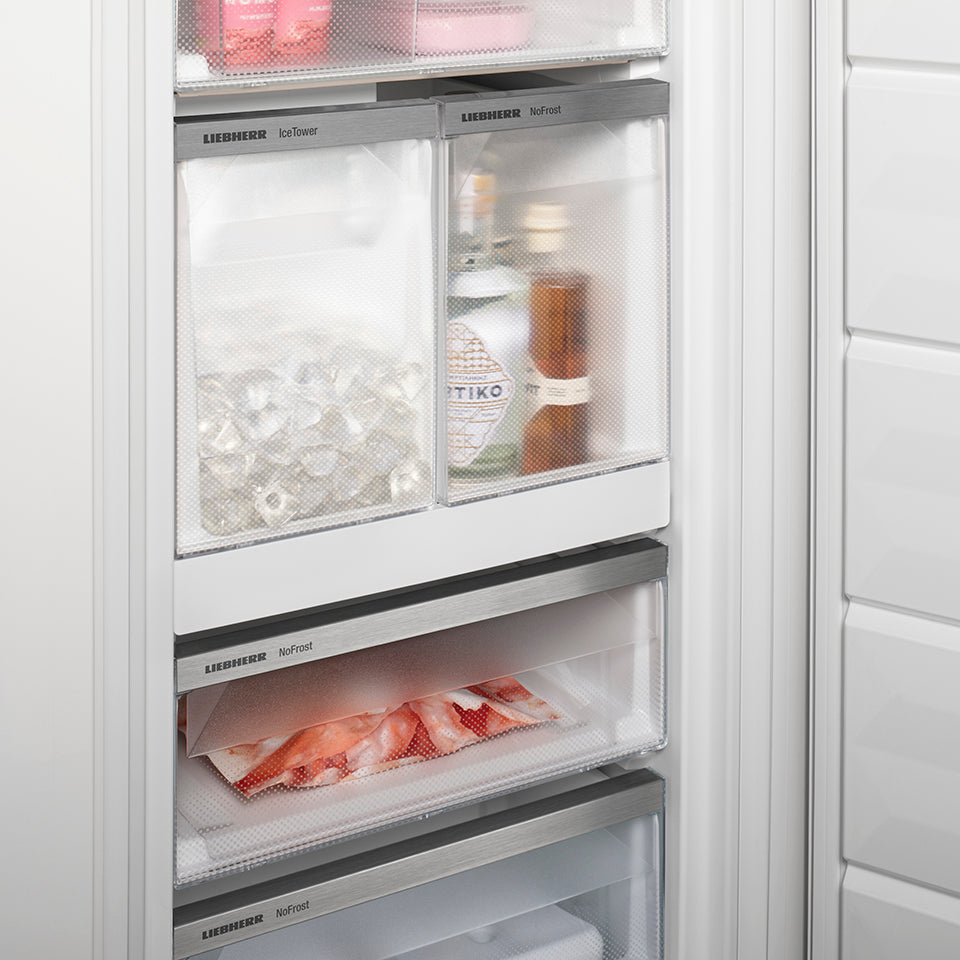

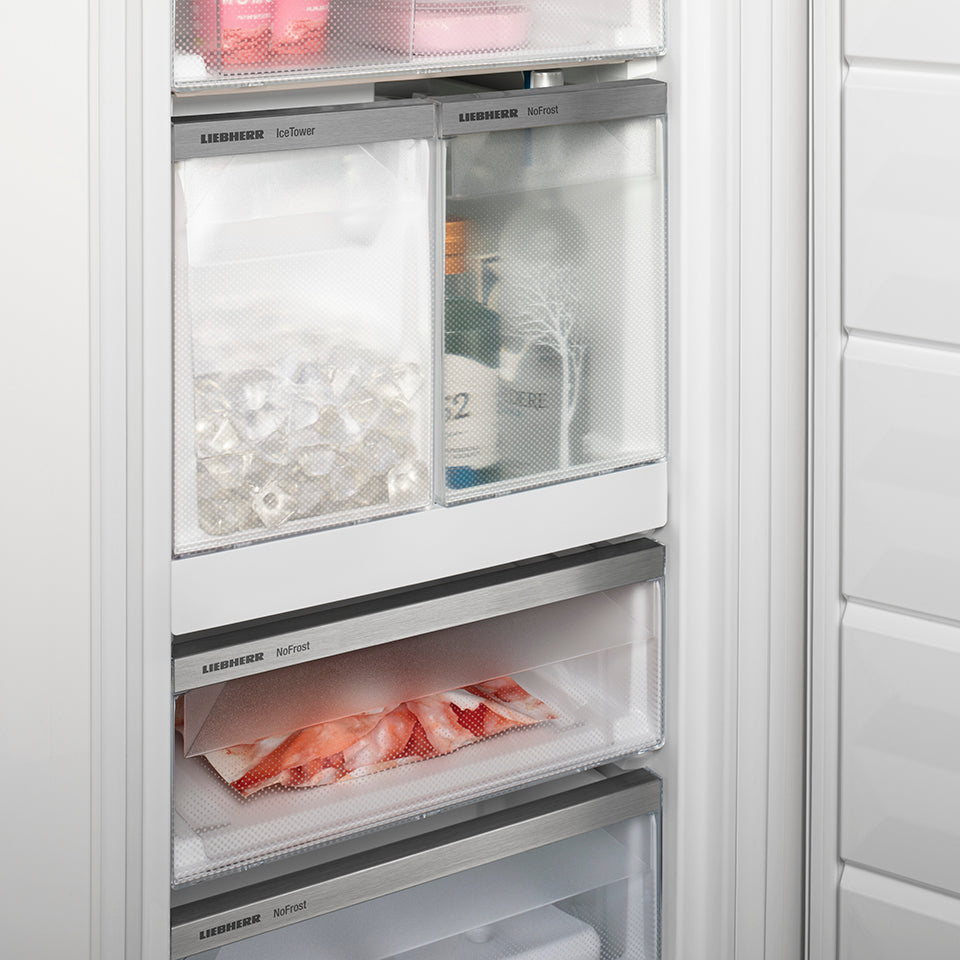

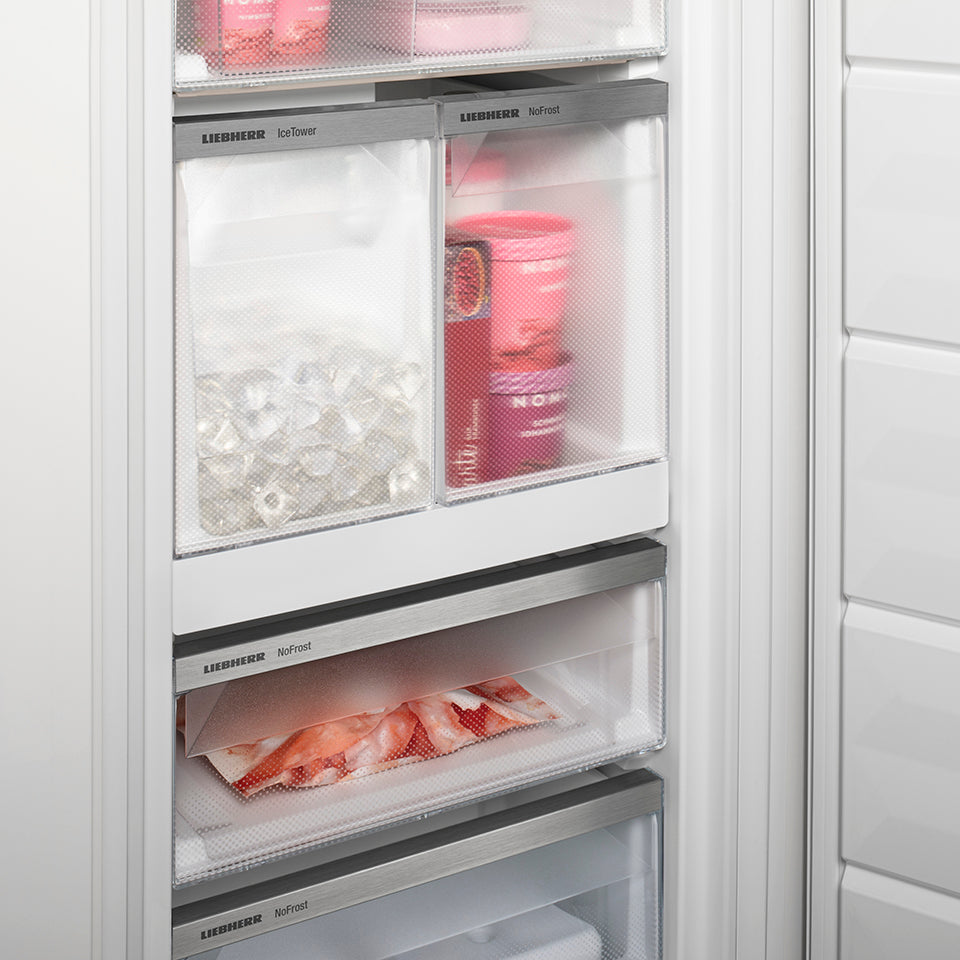

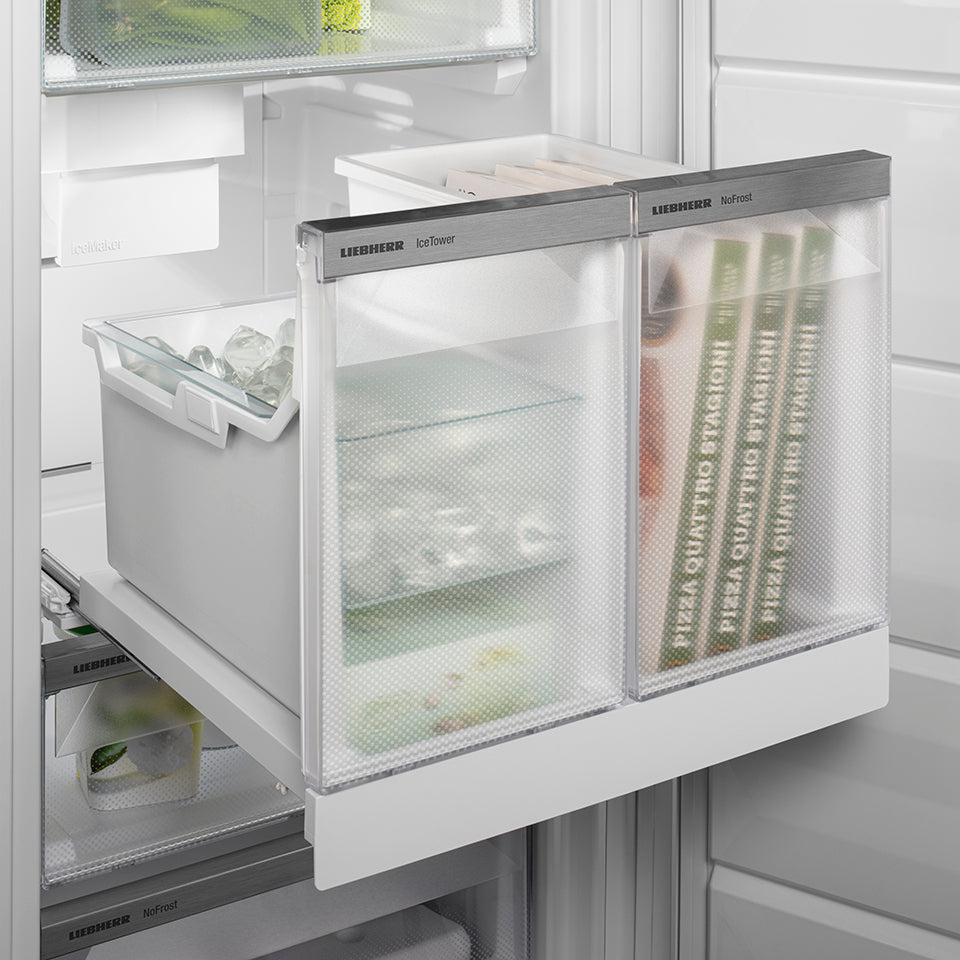

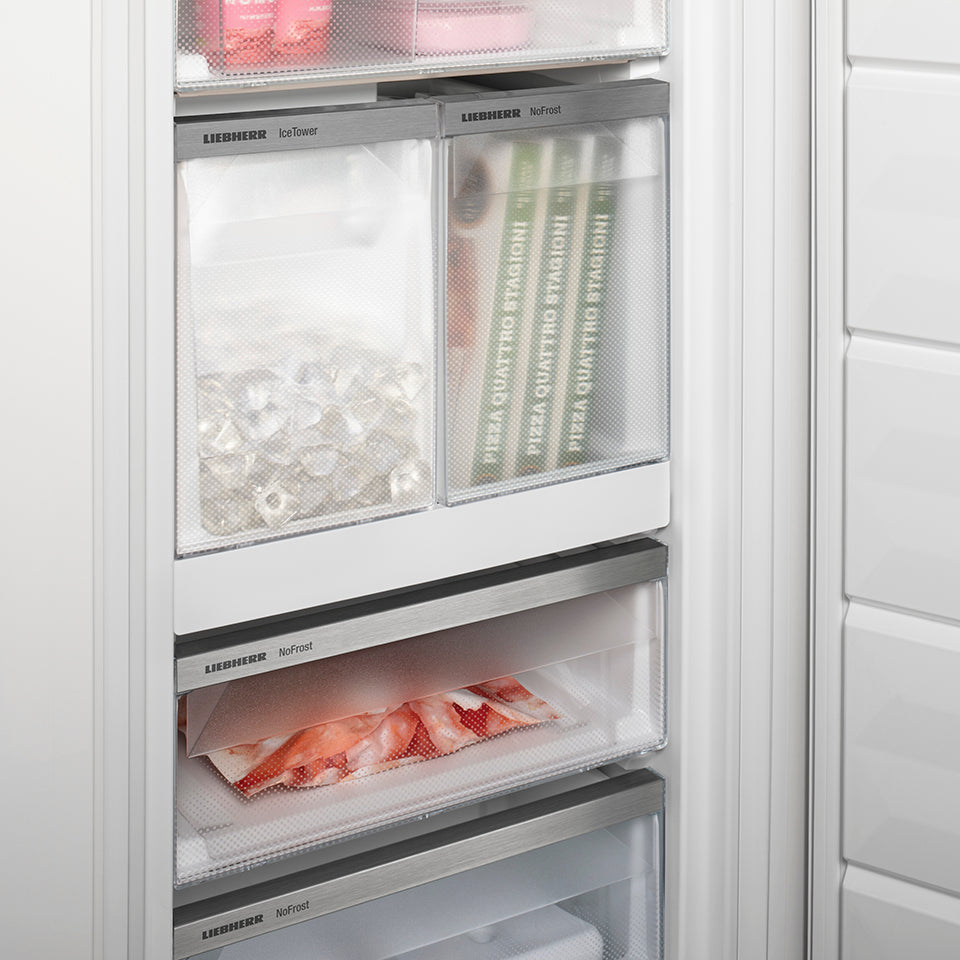

• IceTower: You will never run out of cold drinks at your party. The IceTower, which holds 5.7 kg of ice cubes, makes sure of that. The ice cube scoop and the pull-out tray on telescopic rails allow easy access to the ice cubes. An extra insert tray means you can also store less ice and make room for frozen food underneath. The adjacent drawer provides storage space for frozen goods.
• LED IceMaker lighting: Allow yourself a small moment of happiness every day – by simply taking a look at your fresh ice cubes. The IceMaker lighting coolly places your ice cubes centre stage. The LED lighting activates automatically when the door is opened. The illuminated ice cubes are fun to look at – and whet your appetite for an ice-cold drink.
• SoftSystem: From breakfast to a midnight snack – a fridge needs to be open and closed on many occasions. And your Liebherr makes this is a lot of fun. With the SoftSystem, your fridge door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place – nothing rattles or wobbles.
• VarioSpace: Looking for somewhere to safely store a multi-tiered ice cream cake until the summer party? No problem for your Liebherr freezer: it knows that sometimes you just need more space. Thanks to VarioSpace, you can simply remove individual freezer drawers – and voilà: here’s your extra-high storage space!
• SuperSilent: Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.
• LED freezer compartment lighting: When you open the drawers in your Liebherr freezer, not only are you welcomed by the sight of your food, but also by the attractive lighting. This is provided by powerful, long-life, environmentally-friendly LEDs. The lighting makes it even easier to see all of the contents and is also a unique design element.

• Freezer tray: Do you want your frozen berries to be fresh and firm after defrosting – and to not turn into a compote? The freezer tray is ideal for this type of delicate food. When spread out well on the plastic tray, fruits and herbs freeze quickly and without being squashed. You can easily insert the freezer tray in the freezer drawer and remove it again.
• Drawer: Convenient to pull out and push in: the drawer has plenty of extra space. And when you pull it out, it slides out gently, as it rests on telescopic rails. The drawer slides back in just as gently and quietly.
• Ice cube scoop: The Liebherr ice scoop makes portioning and transporting ice easy. Thanks to the slanted tip and the ergonomic handle, ice cubes can make it from your IceTower into your drinks quickly and easily. The robust ice scoop made of sturdy plastic is also pleasing to the eye thanks to its satin surface in transparent glacier green.
• Replaceable door seal: Do you think the door seal on your Liebherr needs to be replaced after a few years? This is very easy to do yourself. The replaceable door seal can be removed in a few simple steps – and the new seal is just as easy to insert. As a result, this part of the refrigerator is always spotless and hygienically clean.
• Side-by-side concept: Whether they’re next to or on top of one another, you can position your modular Liebherr appliances however you want. Create your own personal freshness centre from a combination of fridge, freezer, wine storage cabinets or full-space BioFresh. Typical Liebherr quality: A special technology in the ceiling and the side walls prevents condensation between the appliances – keeping the furniture fully protected.
• Dishwasher-safe features: The features of your Liebherr are practical in two ways: Not only do they simplify everyday use, they are also very easy to clean. Want to clean the easily removable drawers? Just put them in the dishwasher. Then you’ll have more time for other things.

TECHNICAL DATA:

GENERAL PRODUCT INFORMATION:

• Model type: Integrierbarer Gefrierschrank mit NoFrost und IceTower

• GTIN: 4016803115816

• Series: peak

OUTPUT & CONSUMPTION:

• Climate class: SN-T

• Humidity range: Yes

• Noise level: 35 dB

• Voltage: 220-240 V ~

• Frequency: 50-60 Hz

• Connection rating: 1.3 A 186 W

• Energy consumption per year: 207 kWh/a

• Energy rating: 4

CONTROL & FUNCTIONS:

• Control: 2,4“ TFT colour display, Touch & Swipe display

• Control unit: Touch & Swipe

• Number of temperature zones: 1

• Number of regulated refrigeration circuits: 1

• Temperature display: Freezer

• Front frame heating: Refrigerator and freezer compartment

• BottleTimer: —

FREEZER COMPARTMENT:

• Temperature range freezer compartment: -15 °C to -28 °C

• Defrosting method: automatic

• Storage time in case of fault according to GS *: 9 h

• Freezing capacity in 24 hours according to GS *: 12.00 kg / 24h

• No. of drawers in freezer compartment: 8

• FrostSafe: Drawers closed on all sides with transparent front

• Drawer pull-out system, freezer compartment: Partially extendible telescopic rails

• Interior light, freezer compartment: LED light

• VarioSpace: Yes

• Type of hose: Mains water hose with WaterStop

• IceMaker safe lighting: Yes

• Ice cube production: 1.2 kg / 24h

• Ice cube storage: 5.7 kg

• IceTower: Yes

• Ice cube tray: —

• Number of ice cube trays: 0

• Number of water filters: 0

• Freezer tray: 1

• Star-rating: 4

DESIGN & MATERIALS:

• Dry rear panel: —

• Inner back wall material: —

• Inner door décor: —

• Material of adjustable shelves in the freezer compartment: Glass

SETUP & INSTALLATION:

• Type of installation: Designed for integrated use

• Door assembly: Fixed door

• Max. kitchen unit door weight: 26

• Door hinges: Left

• Door hinge replacement: Possible for customer

• Door opening angle: 115°

• Door seal: Replaceable

• Height-adjustable feet: 2

• Levelling bars: Yes

• Number of levelling bars: 2

• Ventilation: Ventilation grates

• Plug type: Australia

• Connector cable (length): 2,200 mm

SPECIFICATIONS:

• Total volume: 213 l

• Dimensions H/W/D: 177 / 55.9 / 54.6 cm

• Volume, freezer compartments: 213 l

• Of which 4-star compartment: 213.3 l

• Aperture dimensions height/width/depth: 177.2 - 178.8 / 56 - 57 / 55.0 cm

• Height / Width / Depth (with packaging): 1,877.0 / 575.0 / 622.0 mm

• Weight (without packaging): 74 kg

• Weight (with packaging): 77.7 kg

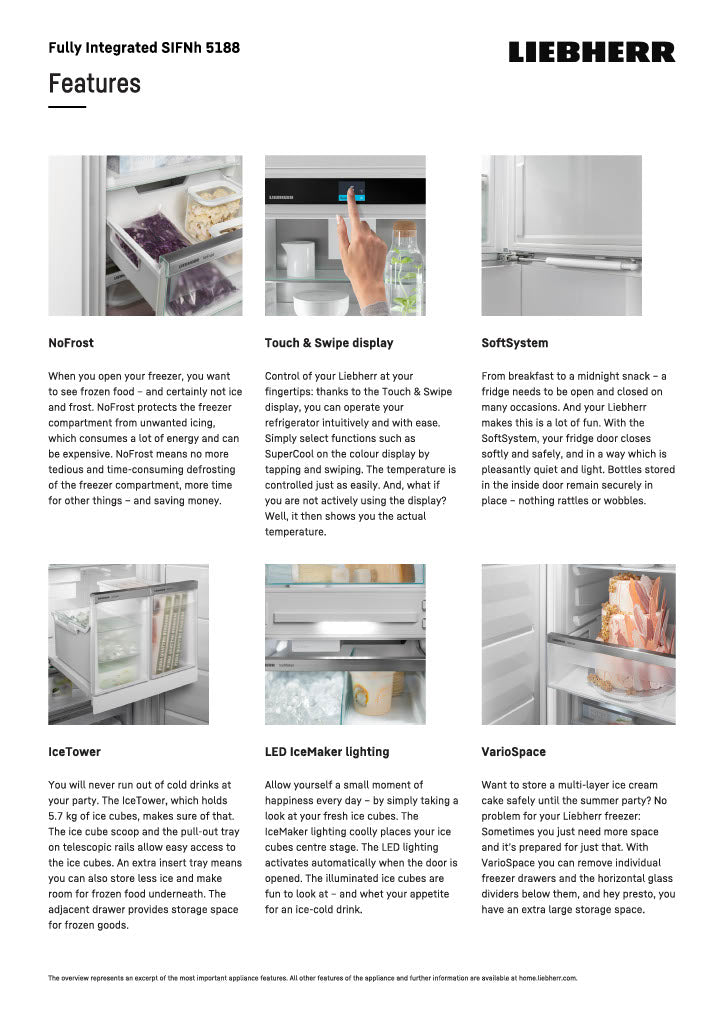

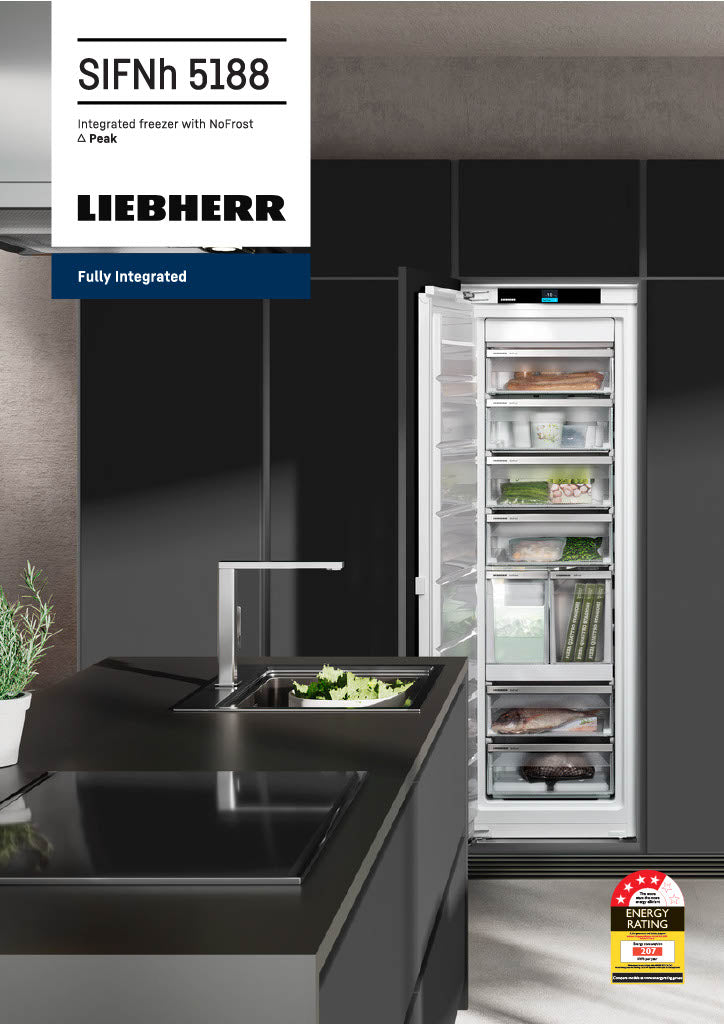

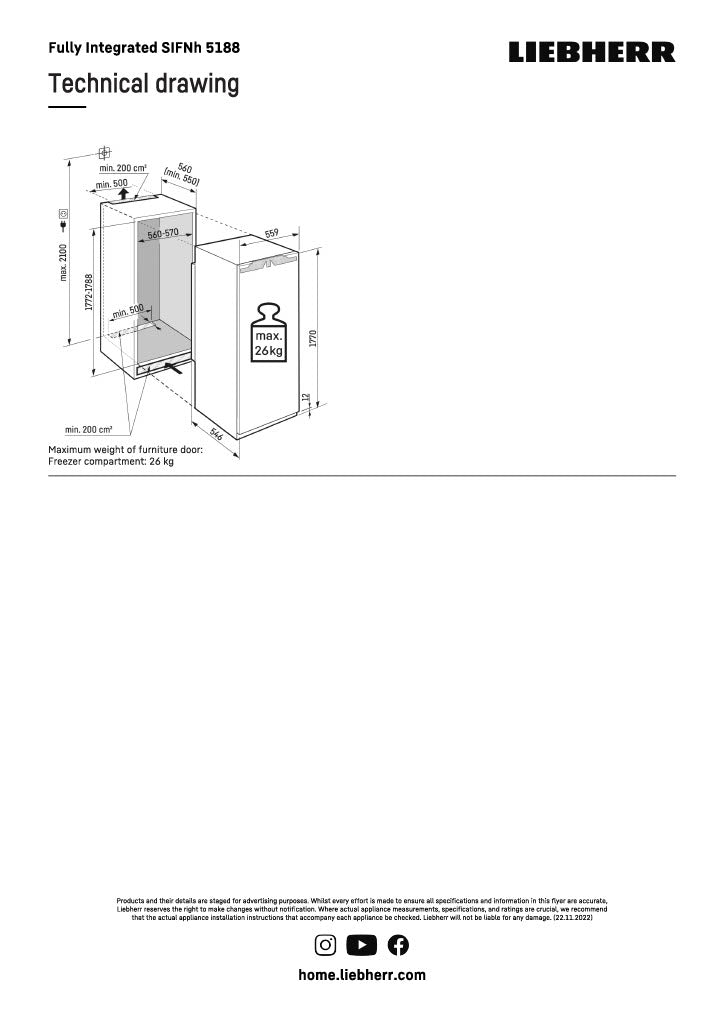

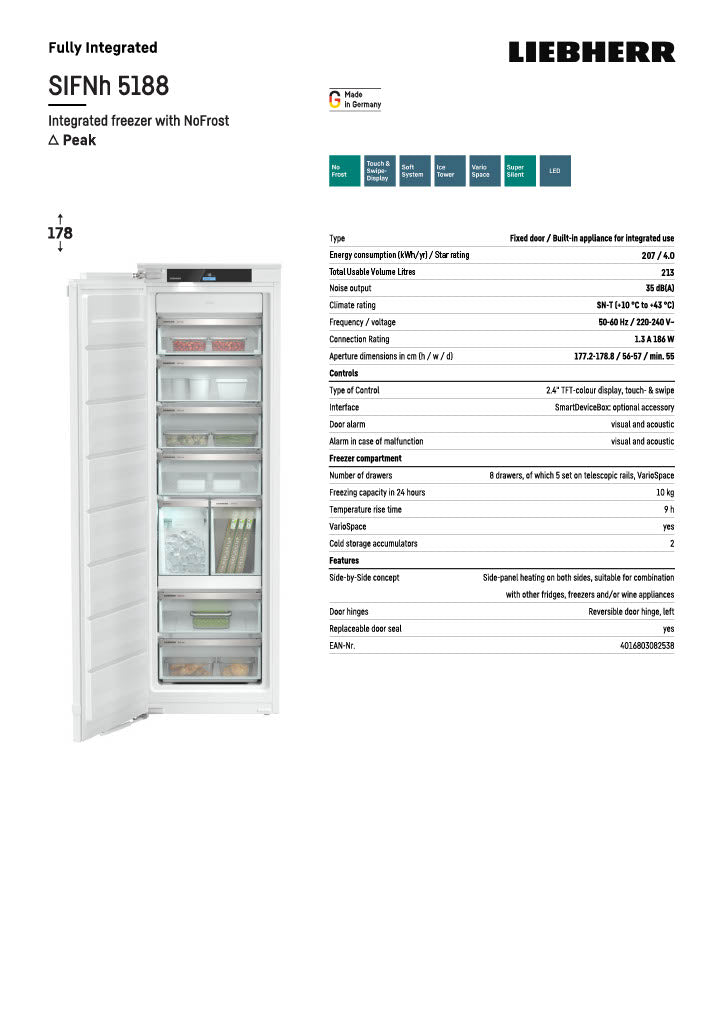

SPECIFICATIONS SHEET 1
