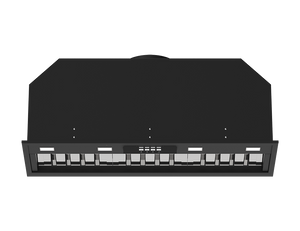

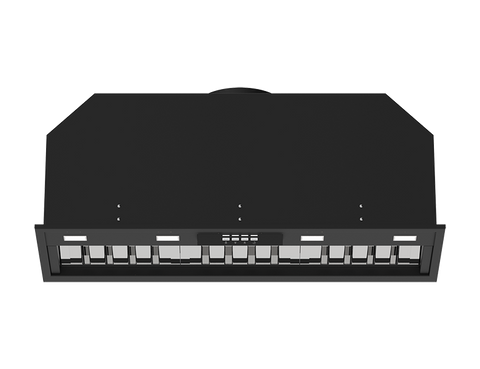

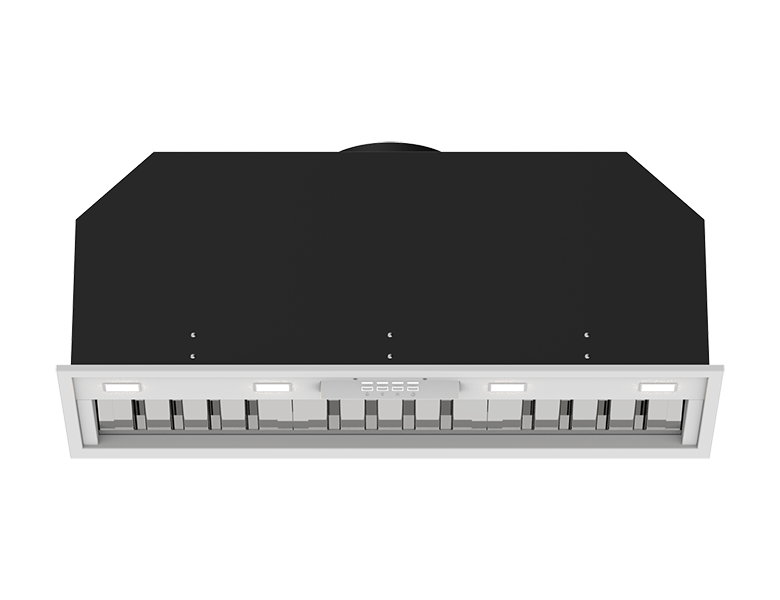

Whispair X3M08S5 Monte Carlo 80cm Undermount Rangehood

Product Description

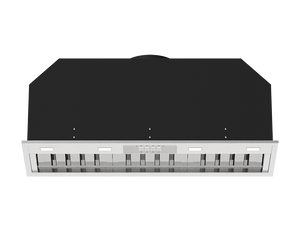

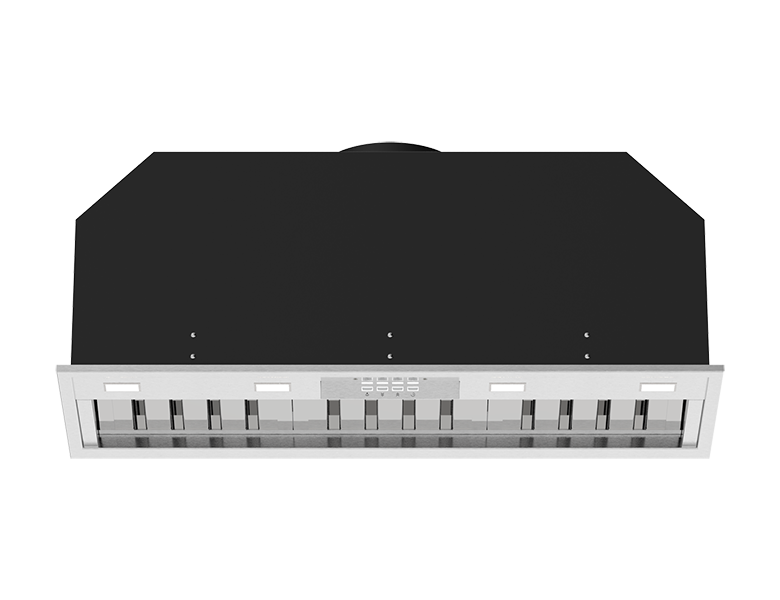

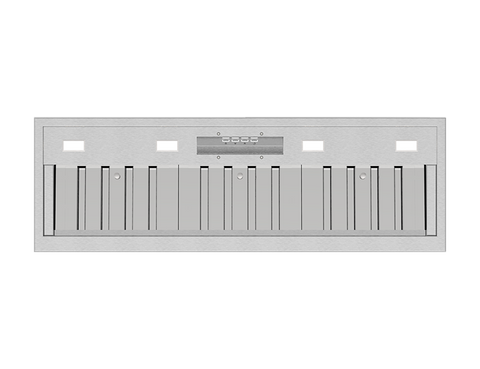

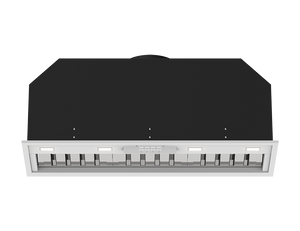

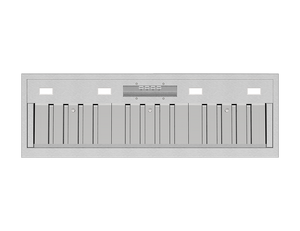

Monte Carlo 80 Undermount

Model Number – X3M08S

• The Whispair Monte Carlo 80 undermount rangehood is ideal for cooking surface 60cm to 90cm in width. Designed to fit in an ‘Australian standard’ (900mm wide x 300mm Deep) overhead cupboard.

Product Specifications:

• Hood Mounting: Built In (Under Mount)
• Cooking Coverage: Suits 60cm – 90cm cooking surfaces

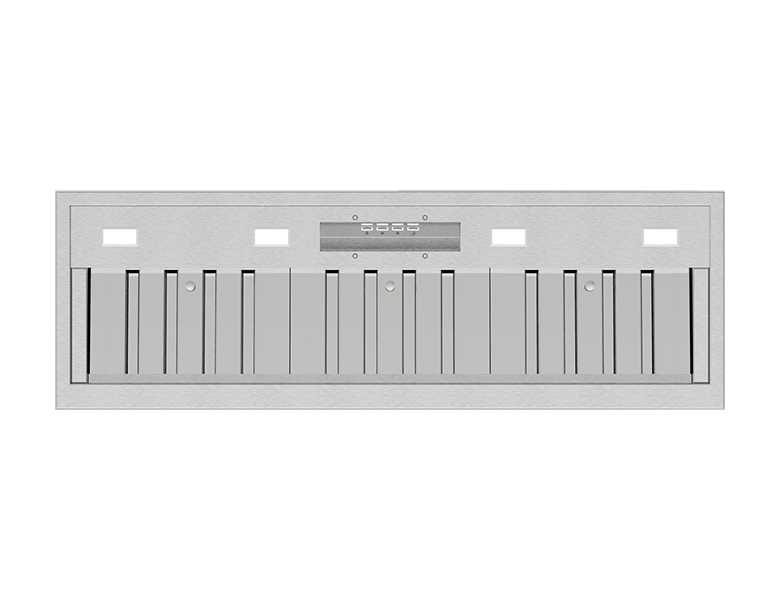

• Filtration: Baffle Filters 3x (H-25)
• Finish: AISI304 1.2mm High Grade Stainless Steel
• Controls: LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator
• Speed Settings: 3 Speed + Boost Mode
• Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
• Hood Width: 760mm
• Hood Depth: 280mm
• Hood Height: 330mm (plus 25mm Top Outlet)
• Ducting (Remote)
• Ducting (On Board): Power Motor – Dia. 150mm (Recommended), Ultra Motor – Dia. 200mm (Recommended)

Sound Pressure Levels (Nominal):

Hood on Boost (Max) Speed Level

On Board Motor Solutions

• Power 1,020 Motor: 53.9dB(A)
• Ultra 1,680 Motor: 56.5dB(A)

Remote (External or Inline) Motor Solutions

• Lite 800 Motor: 39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
• Pro 1140 Motor: 49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
• Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)

Product Variations:

• X3M08S5.IL - Remote Motor – Inline Lite 800m3/hr - Through Wall or Eave
• X3M08S5.EL - Remote Motor – External Lite 800m3/hr - Through Roof or Wall
• X3M08S5.IP - Remote Motor – Inline Pro 1140m3/hr - Through Wall or Eave
• X3M08S5.EP - Remote Motor – External Pro 1140m3/hr - Through Roof or Wall
• X3M08S5.EPP - Remote Motor – External Pro Plus 2010m3/hr - Through Roof or Wall
• X3M08S5.OP/T - On Board - Power 1020m3/hr - Top Ducted
• X3M08S5.OP/B - On Board - Power 1020m3/hr - Rear Ducted
• X3M08S6.OU/T - On Board - Ultra 1680m3/hr - Top Ducted
• X3M08S6.OU/B - On Board - Ultra 1680m3/hr - Rear Ducted

For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

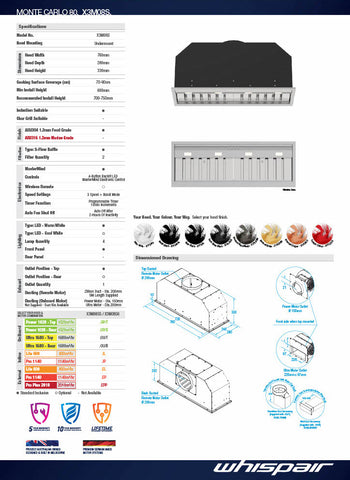

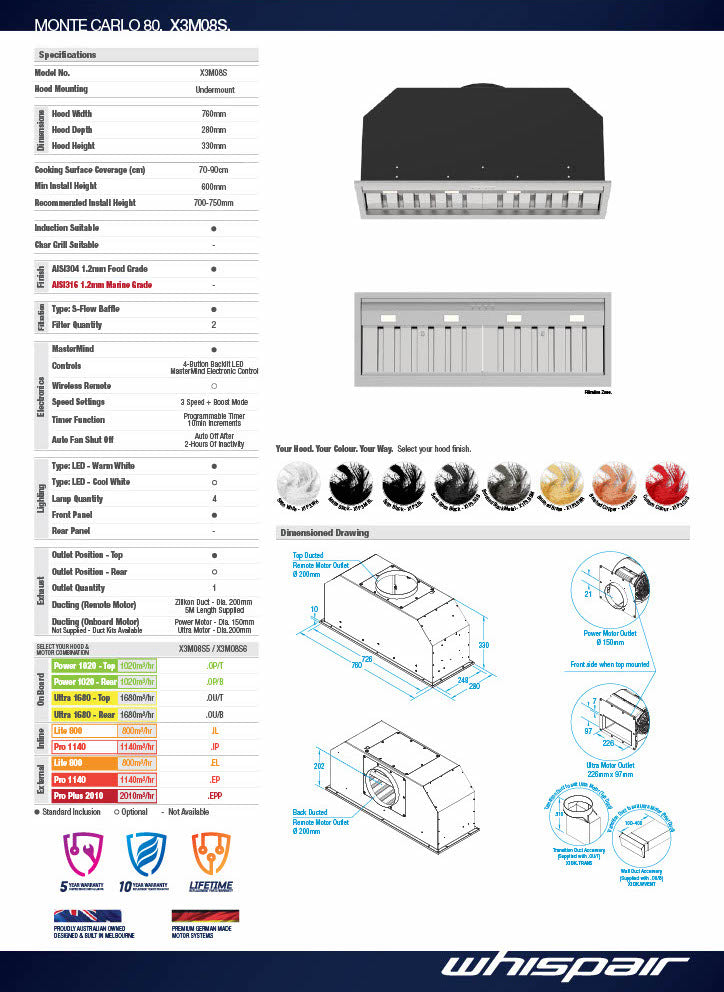

SPECIFICATIONS SHEET

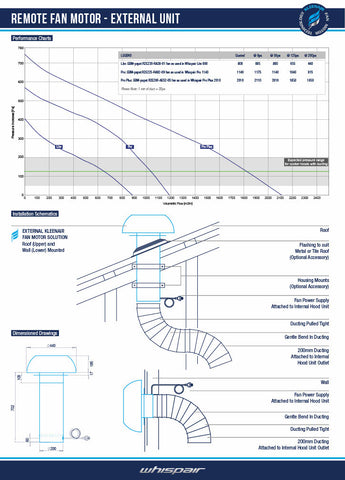

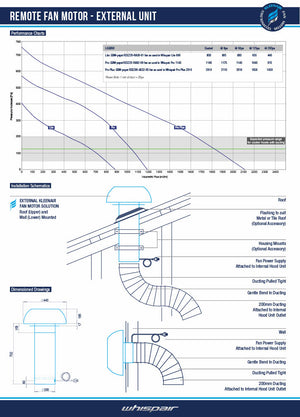

EXTERNAL REMOTE MOTOR SPEC SHEET 1
EXTERNAL REMOTE MOTOR SPEC SHEET 2
INLINE REMOTE MOTOR SPEC SHEET 1
INLINE REMOTE MOTOR SPEC SHEET 2
