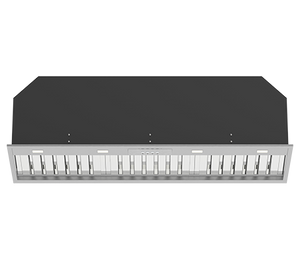

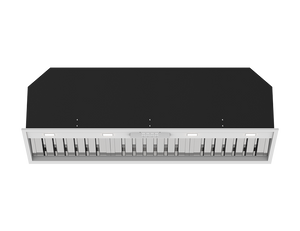

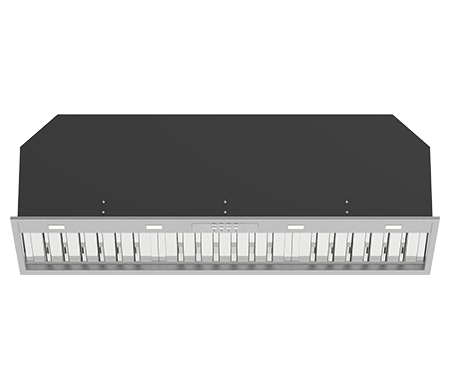

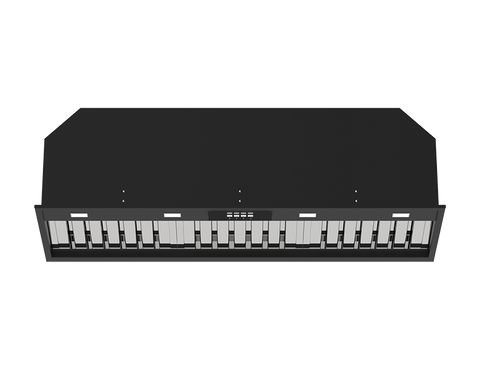

Whispair X3W12S5 Washington 120cm Alfresco BBQ Undermount Rangehood

Product Description

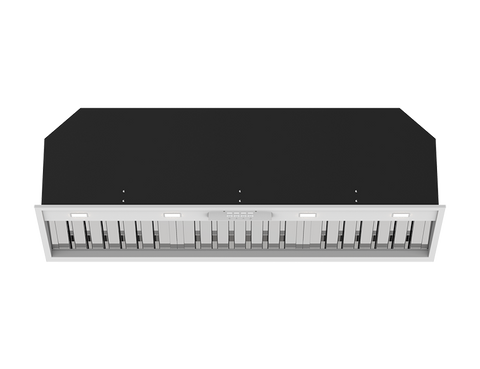

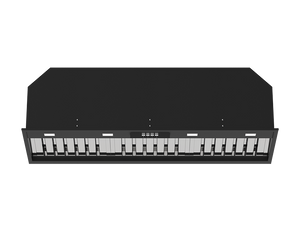

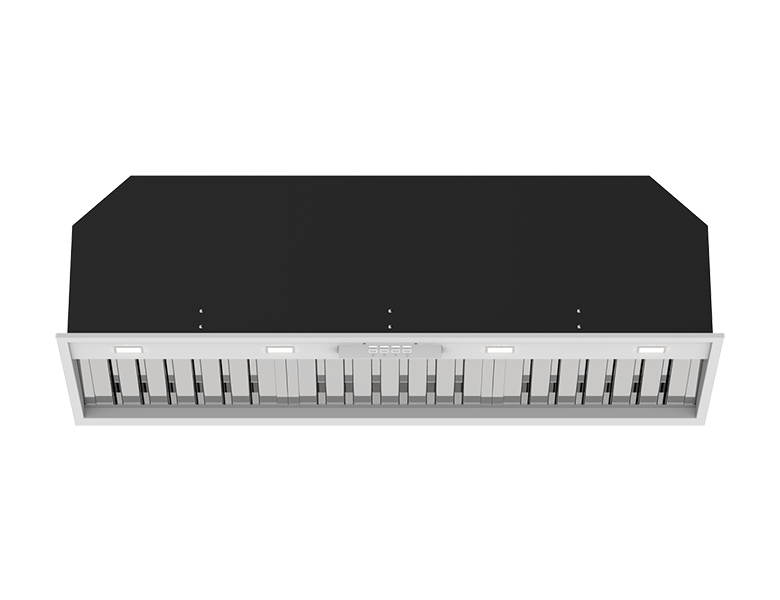

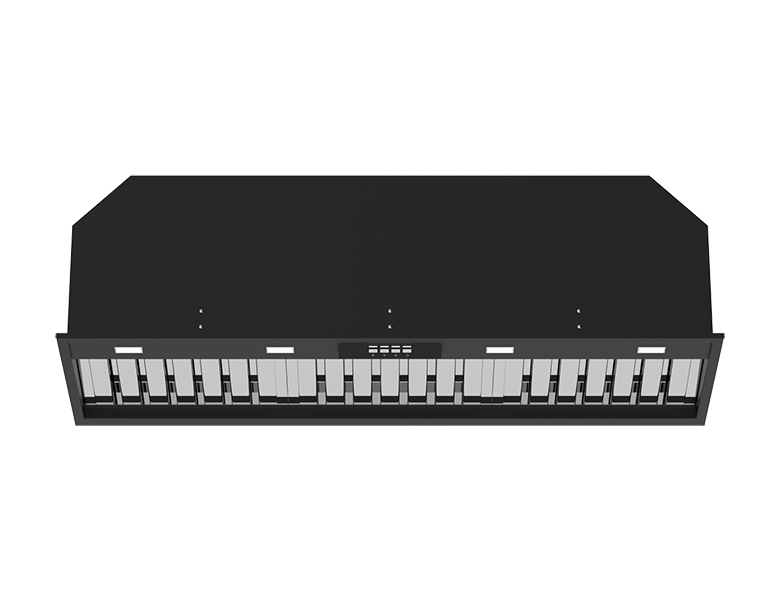

Washington 120 Undermount Alfresco

Model Number – X3W12S

• The Whispair Washington 120 alfresco (BBQ) undermount rangehood is designed for use over a BBQ and is ideal for cooking surfaces 100cm to 120cm in width. Designed to fit in a deeper (500mm) overhead cupboard or bulkhead. Offering additional front-to-rear coverage for use over a BBQ. All Whispair alfresco (BBQ) hoods AISI316 ‘marine-grade’ stainless steel which will ensure even in coastal conditions your hood will stand the test of time.

Product Specifications:

• Hood Mounting: Built In (BBQ Under Mount)
• Cooking Coverage: Suits 100cm – 120cm cooking surfaces
• Filtration: Baffle Filters 3x (H-25)
• Finish: AISI316 1.2mm High Grade Stainless Steel
• Controls: LED Backlit 4 Button mastermind Electronic Control with LED Speed Indicator
• Speed Settings: 3 Speed + Boost Mode
• Timer Function: Programmable timer (10min Increments) + Auto Shut Off After 2Hrs Of Inactivity
• Ducting (Remote)
• Hood Width: 1160mm
• Hood Depth: 480mm
• Hood Height: 330mm (plus 25mm Top Outlet)

Sound Pressure Levels (Nominal):

Hood on Boost (Max) Speed Level

On Board Motor Solutions

• Power 1,020 Motor: 53.9dB(A)
• Ultra 1,680 Motor: 56.5dB(A)

Remote (External or Inline) Motor Solutions

• Lite 800 Motor: 39.3dB(A) / 52.7dB(A) (Indoor / Outdoor)
• Pro 1140 Motor: 49.6dB(A) / 58.5dB(A) (Indoor / Outdoor)
• Pro Plus 2010 Motor: 56.6dB(A) / 62.8dB(A) (Indoor / Outdoor)

Product Variations:

• X3W12S5.EPP - Remote Motor – External - Pro Plus 2010m3/hr - Through Roof or Wall
• X3W12S5.2IP - Remote Motor – Inline - "Twin" Pro 1140m3/hr - Through Wall or Eave

• X3W12S5.2EP - Remote Motor – External - "Twin" Pro 1140m3/hr - Through Roof or Wall
• X3W12S5.2EPP - Remote Motor – External - "Twin" Pro Plus 2010m3/hr - Through Roof or Wall

For any of your flue & ducting needs when purchasing your rangehood. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Whispair flue & ducting when purchasing a Whispair rangehood.

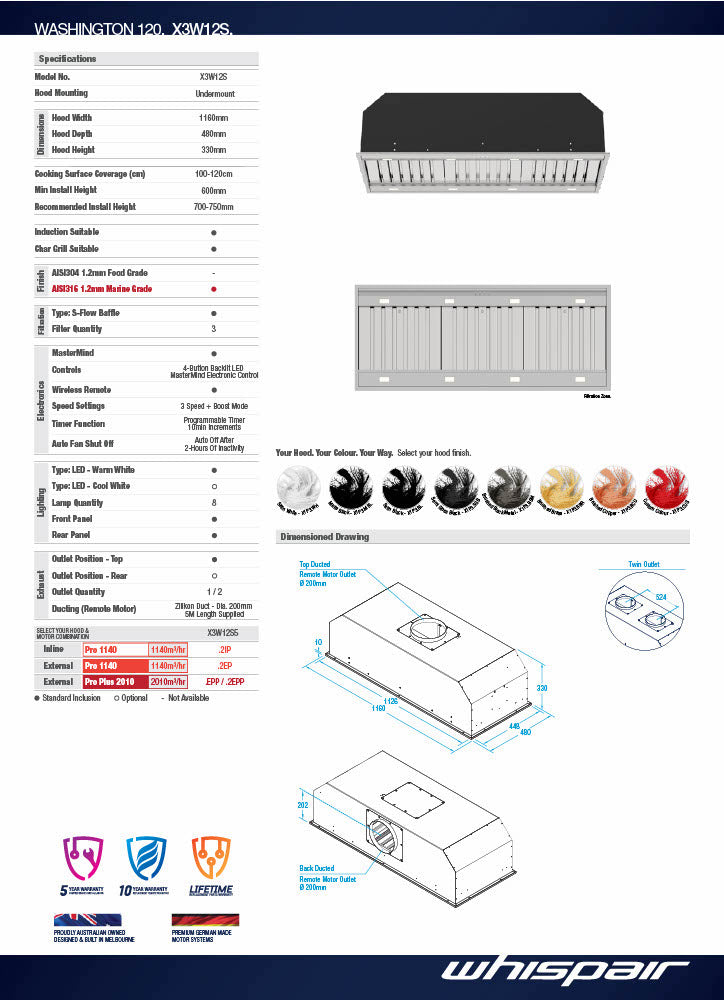

SPECIFICATIONS SHEET

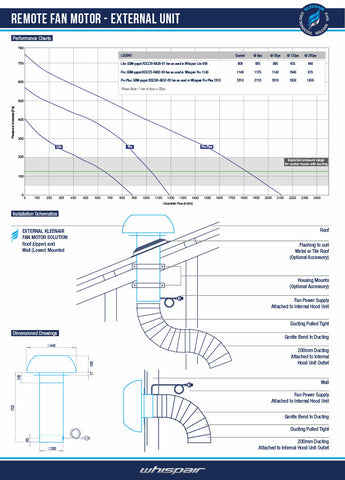

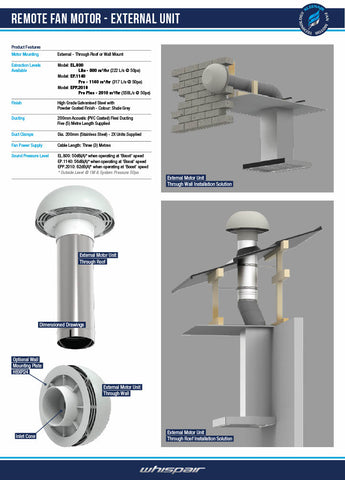

EXTERNAL REMOTE MOTOR SPEC SHEET 1

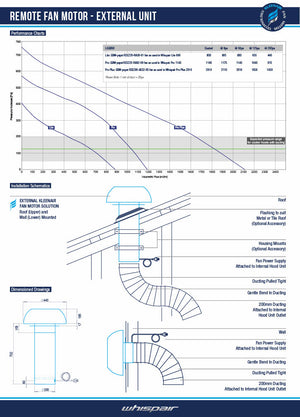

EXTERNAL REMOTE MOTOR SPEC SHEET 2

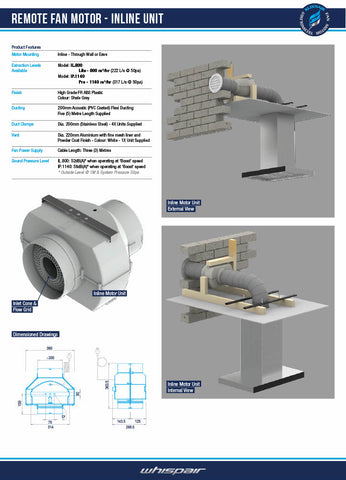

INLINE REMOTE MOTOR SPEC SHEET 1

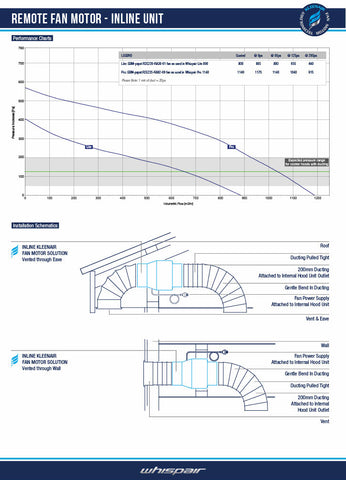

INLINE REMOTE MOTOR SPEC SHEET 2
