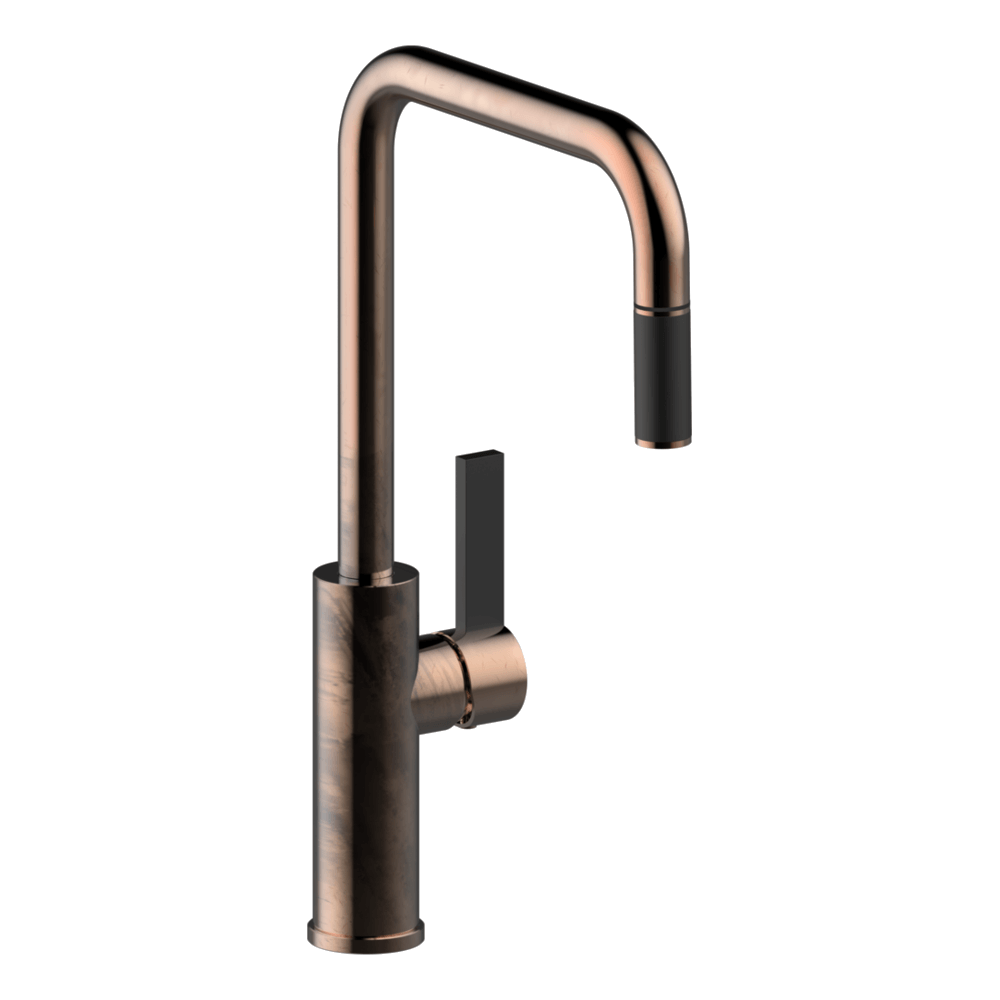

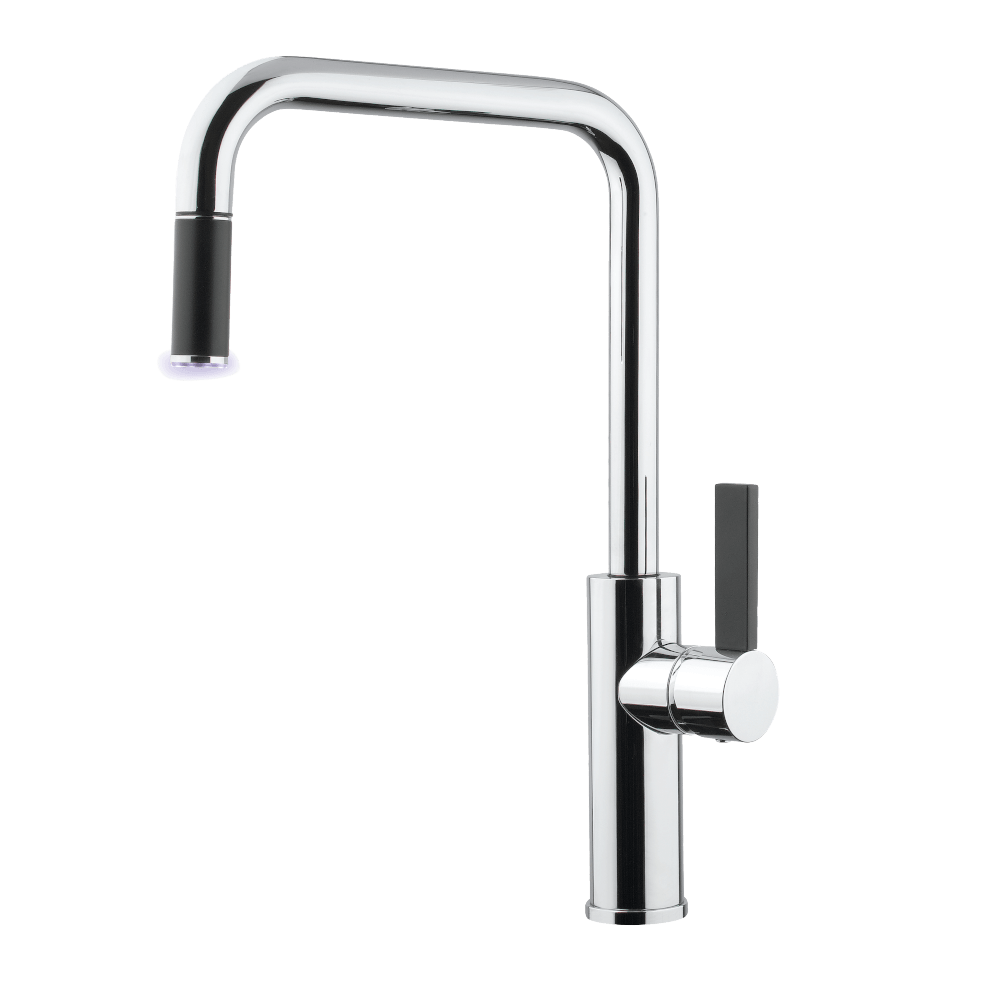

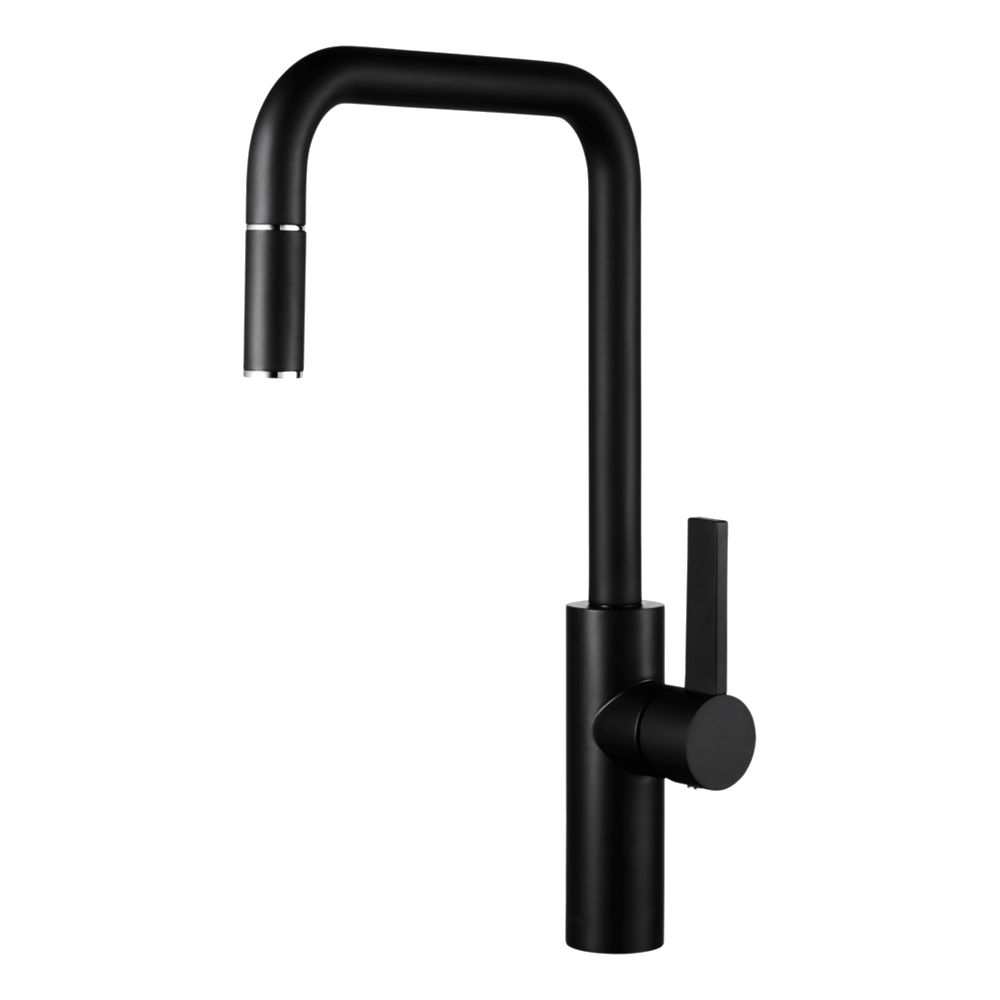

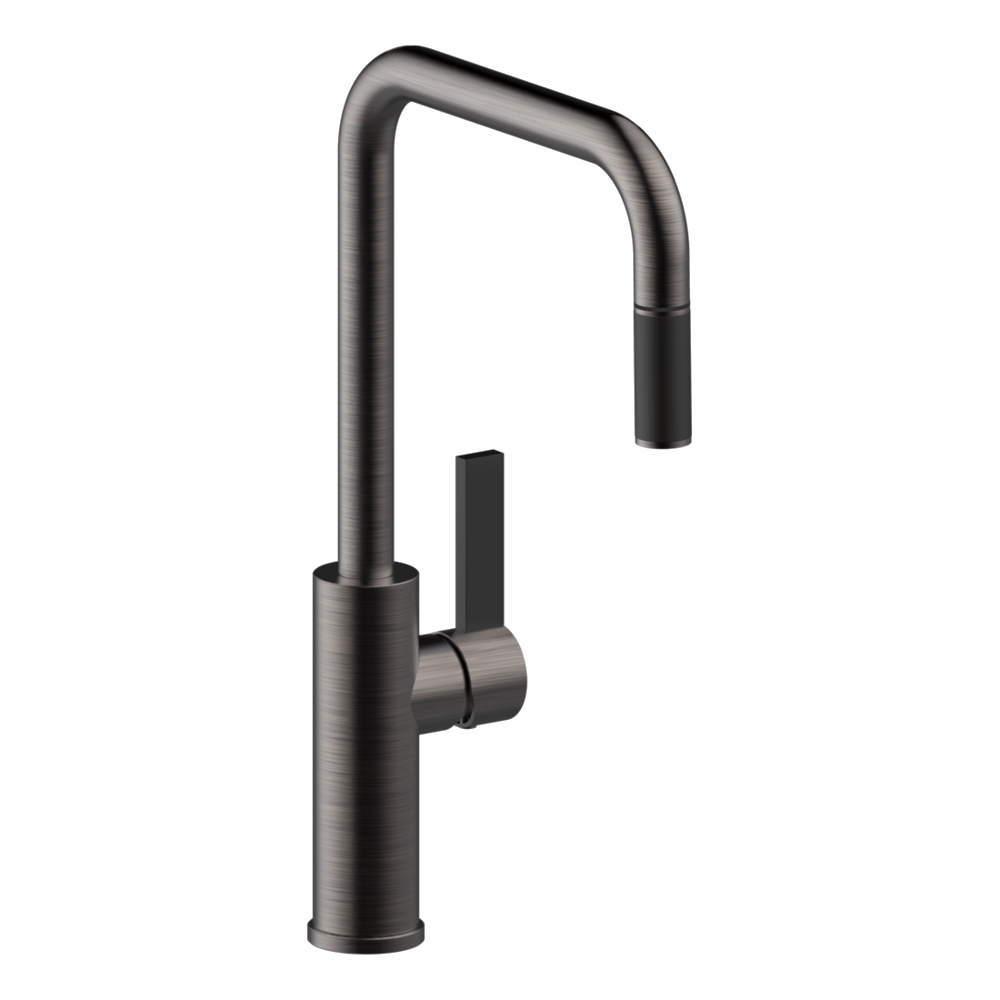

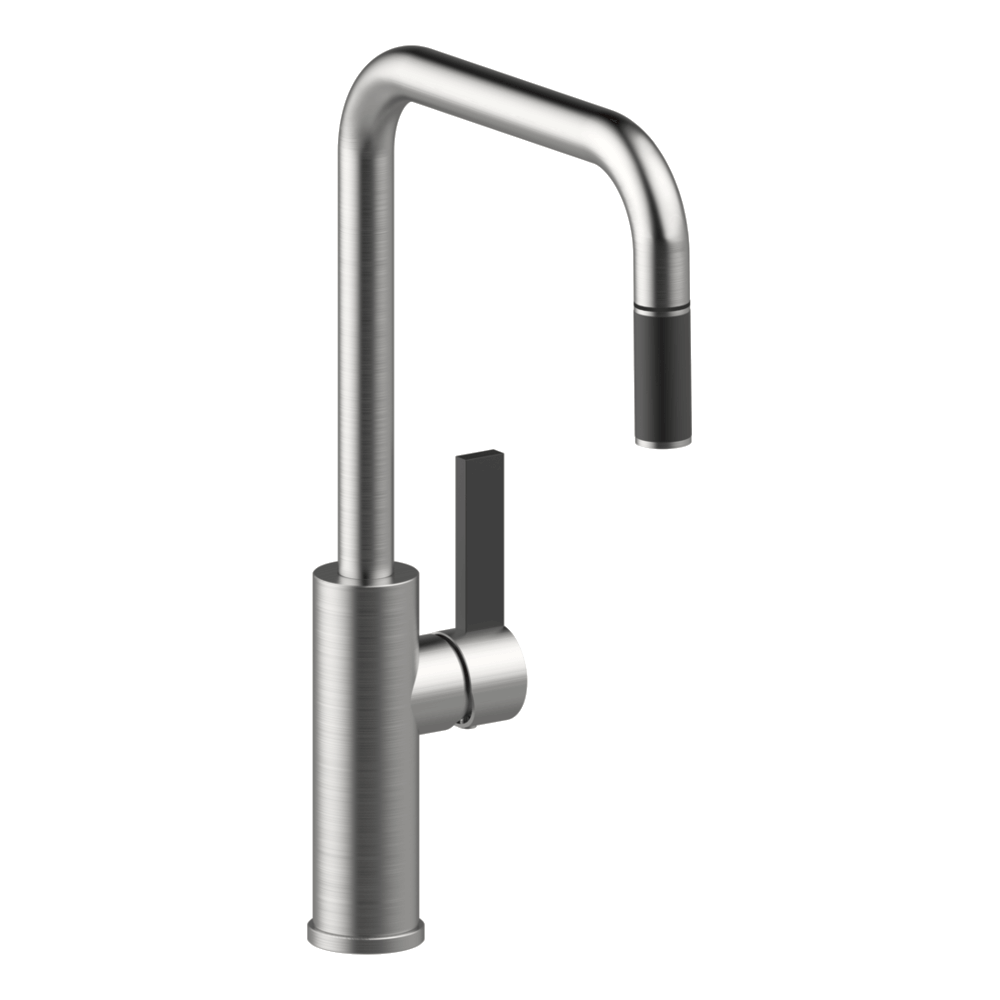

Armando Vicario LUZ Lead Free Kitchen Mixer with Pull-Out

• Pull-out flexibility: A 1500mm hose extends reach for targeted rinsing and cleaning.
• 360-degree swivel spout: Provides flexible access across single and multiple-bowl sinks.
• Lead-free construction: Designed for contemporary drinking-water applications.
• Italian design and manufacture: Pairs sculptural square-neck styling with a slim flat lever.
• Water-efficient operation: Rated 5 stars under WELS at 5.5L/min.

• Product Type: Square-Neck pull-out kitchen mixer
• Collection: LUZ
• Design Style: Modern
• Construction: Lead free
• Handle Direction: Forwards (hot), backwards (cold)
• Pull-Out Hose Length: 1500mm
• Spout Rotation: 360 degrees
• Maximum Operating Pressure: 500kPa
• WELS Rating: 5 stars
• Water Consumption: 5.5L/min
• WELS Registration Number: T45546
• Compliance: In accordance with AS/NZS 6400

• Installation Type: Bench-mounted kitchen mixer.
• Operating Pressure: Do not exceed 500kPa; install pressure-limiting equipment where required.
• Clearance: Allow adequate under-sink clearance for the 1500mm pull-out hose.
• Pre-Installation Check: Confirm the mounting hole, benchtop thickness, connections and surrounding clearances.
• Professional Installation: Installation must be completed by a licensed plumber in accordance with supplied instructions and applicable requirements.

Armando Vicario products are backed by a comprehensive warranty provided by Abey Australia Pty Ltd, the official importer and warrantor in Australia. This warranty is valid in addition to your rights under the Australian Consumer Law.

Warranty Coverage

• Cartridge: 20 years replacement
• Product / Parts: 10 years replacement for defects in materials and workmanship
• Labour: 1 year
• Finishes: 5 years (for PVD and plated finishes); other finishes covered for manufacturing defects only

This warranty applies to the original purchaser only and is not transferable.

What You Need to Know

• The product must be installed by a licensed plumber in accordance with Abey’s published guidelines (installation instructions, user manuals, etc.).
• Maximum operating water pressure must not exceed 500 kPa.
• Proof of purchase is required to validate all warranty claims.
• Products must be used and maintained in line with Abey’s care & cleaning instructions.

Warranty Exclusions

The warranty will be voided where:

• Proof of purchase cannot be provided.
• The product is not installed by a licensed plumber.
• Installation does not comply with Abey’s instructions or relevant standards.
• Water pressure or temperature exceeds recommended limits.
• Water supply lines are not flushed prior to installation.
• Isolation stop taps or necessary regulators are missing.
• Product has been altered, modified, or fitted with non-approved accessories (e.g., water filters).
• Damage results from misuse, neglect, harsh cleaning agents, or chemical exposure.
• Wear and tear, improper maintenance, or failure to clean regularly.
• The product has been damaged due to incorrect or unqualified installation.

How to Lodge a Warranty Claim

To make a claim:

1. Ensure the product has been installed (items not installed must be returned to the place of purchase).
2. Visit www.abey.com.au/after-sales.
3. Complete the online warranty claim form and upload proof of purchase.
4. You will receive a claim number via email for future correspondence.
5. An Abey Warranty Representative will contact you within 2 business days regarding your claim.

The LUZ’s high square-neck form creates useful clearance beneath the outlet, while its pull-out hose makes it easier to rinse large cookware, fill vessels and clean beyond the centre of the bowl. The swivel spout also supports flexible placement with a broad range of kitchen-sink layouts.

Finish appearance may vary between displays and surrounding materials. Review a physical finish sample where precise matching is important, follow the supplied care advice, and confirm plumbing pressure, mounting-hole and clearance requirements with your licensed plumber before installation.

• Kitchen Mixer: 1 x Armando Vicario LUZ lead-free square-neck pull-out kitchen mixer in the selected finish
• Installation Components: Pull-out hose and standard installation components supplied with the mixer

• SPECIFICATIONS SHEET (PDF)
• INSTALLATION GUIDE (PDF)
• ABEY KITCHEN COLLECTION 2026 BROCHURE (PDF)
