Atherton Avenel Outdoor Rangehood

• Triple Motor System (2700m³/hr Airflow)
  Provides powerful ventilation with a triple motor system, delivering an airflow of 2700m³/hr to effectively remove smoke, grease, and cooking odors.
• Wall Mounted Design
  The rangehood is designed for wall mounting, offering a professional, space-saving installation above your outdoor cooking area.
• Available in Two Sizes (1200mm & 1500mm)
  Choose from two widths—1200mm and 1500mm—to best suit your outdoor kitchen space and ensure optimal coverage for your cooking area.
• Top or Back Ducted Conversion
  Offers flexible ducting options with either top or back ducted conversion, allowing for easy installation in a variety of kitchen layouts.
• Optional Remote Switching (Models AVE1200L-3R & AVE1500L-3R)
  Select models feature remote switching, enabling easy control of the rangehood from a distance, perfect for hard-to-reach areas or added convenience.
• Stainless Steel Finish
  Constructed from durable stainless steel, ensuring resistance to outdoor elements and maintaining a modern, sleek appearance.

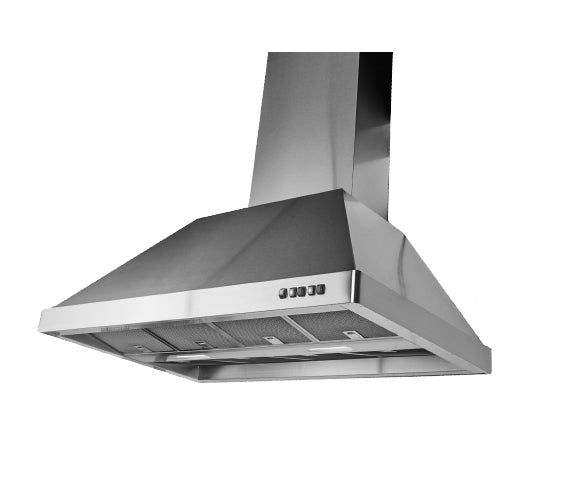

The Avenel rangehood is wall mounted rangehood that comes with three motors. Available in 1200mm and 1500mm widths, either top or back ducted. An optional shroud is available.

RANGEHOOD SIZES:

• 1200mm Wide
• 1500mm Wide

MODELS:

• AVE 1200L-3 (1200mm Wide Triple Motor Wall Mounted Rangehood - Top or back ducted conversion)
• AVE 1200L-3R (1200mm Wide Triple Motor Wall Mounted Rangehood with remote switching- Top or back ducted conversion)
• AVE 1500L-3 (1500mm Wide Triple Motor Wall Mounted Rangehood - Top or back ducted conversion)
• AVE 1500L-3R (1500mm Wide Triple Motor Wall Mounted Rangehood with remote switching- Top or back ducted conversion)

TYPE:

• Wall Mounted

FINISH:

• Stainless Steel

AIRFLOW:

These models come with 3 motors only

• Triple Motor 2700m3/hr

OPTIONAL ACCESSORIES:

• Atherton Shroud - 75mm - 1400mm (Min/Max Height)

Ducting not included. If you are unsure on whether you need a top or back ducted rangehood and/or for any of your rangehood flue & ducting needs. Please enquire with the 8Appliances showroom via email or phone. It is recommended to use Qasair flue & ducting when purchasing a Qasair rangehood.

Warranty coverage

Condari is an Australian-owned manufacturer with over 50 years of experience producing premium rangehoods. Their Qasair, Arlington, Condor, and Atherton ranges are backed by a comprehensive manufacturer's warranty, with extended coverage available when installed by an approved Condari installer.

Qasair & Arlington indoor rangehoods

• Standard warranty: 3 years — Parts and labour
• Extended warranty (approved installer): 6 years — Parts and labour
• Motor replacement warranty: 10 years — Changeover warranty, carried out by an authorised technician

Condor outdoor & BBQ alfresco rangehoods

• Standard warranty: 3 years — Parts and labour
• Extended warranty (recommended installer): 6 years — Parts and labour

Atherton outdoor & BBQ alfresco rangehoods

• Standard warranty: 3 years — Parts and labour
• Extended warranty (recommended installer): 6 years — Parts and labour

Proof of purchase is required for all warranty claims. The warranty applies to domestic use only. The 6-year extended warranty requires installation by a Condari-approved or recommended installer.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• Motor replacement within the 10-year motor warranty period (Qasair & Arlington)

What's not covered

• Incorrect installation, including incorrect ducting size or duct run length
• Failure to follow manufacturer installation and operating instructions
• Misuse, abuse, accidental damage, or neglect
• Failure to regularly clean filters (at least once per month)
• Normal wear and tear
• Consumable items
• Commercial use of domestic appliances
• Use of Qasair rangehoods over outdoor barbecues (Condor and Atherton only for alfresco use)

Conditions

• Must be installed in accordance with Condari installation guidelines
• Ducting must be the correct size and within the recommended duct run length
• Filters must be cleaned regularly — at least once per month by hand or dishwasher
• For the 6-year extended warranty, installation must be carried out by a Condari-approved installer
• Proof of purchase must be provided with all claims
• Warranty applies to personal, domestic, and household use only

Making a claim

Claims should be directed through the original place of purchase or by contacting Condari directly. Please have your proof of purchase and installation details ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

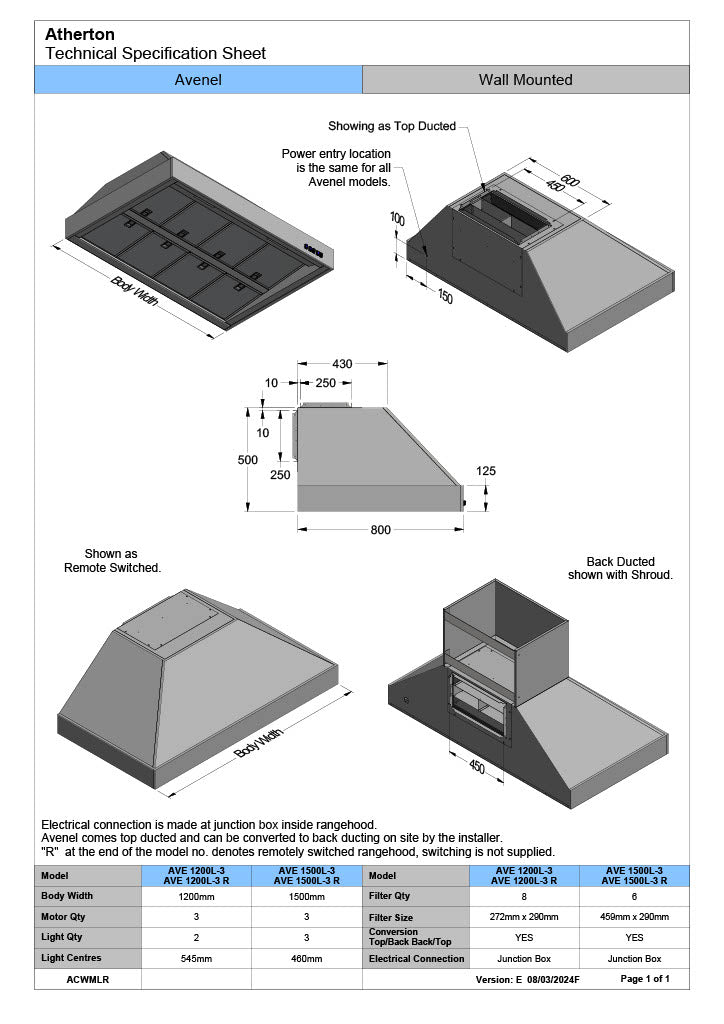

SPECIFICATIONS SHEET

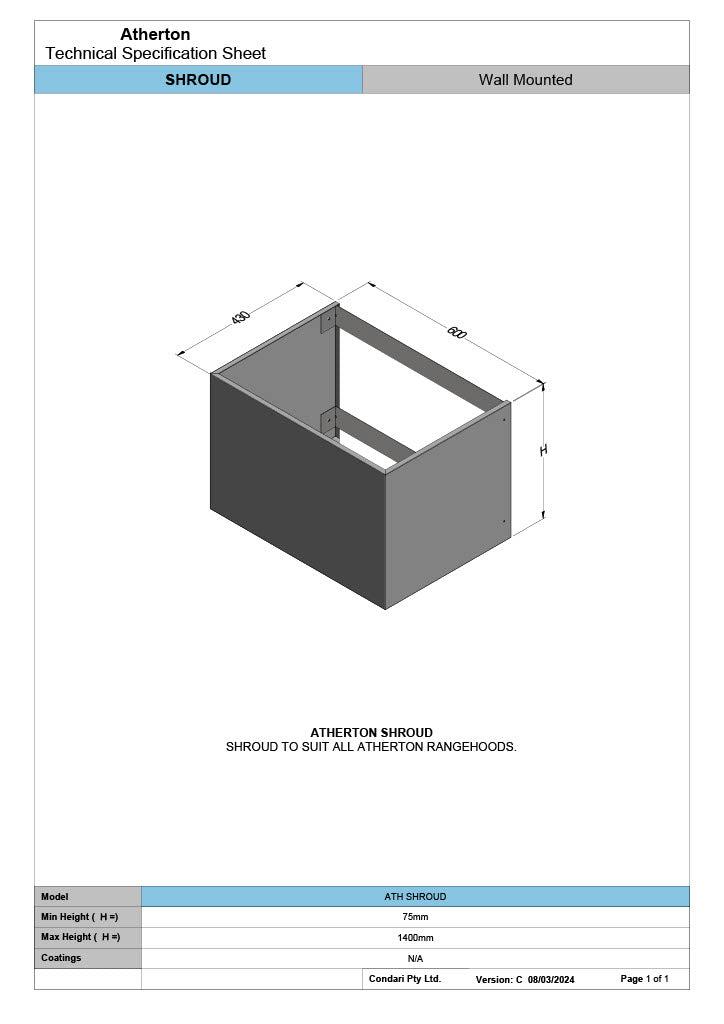

ATHERTON SHROUD SPECIFICATIONS

ATHERTON RANGEHOOD INSTALLATION INSTRUCTIONS (PDF)
