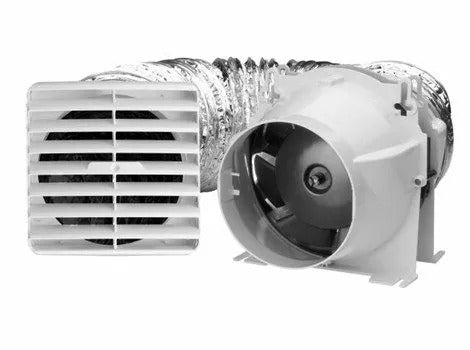

IXL 10380 Ventflo Easy Duct Exhaust System

• Complete ducted package: Includes the inline fan, six metres of flexible duct and two grilles.
• Back draught protection: Engineered to seal when idle and reduce unwanted air movement.
• Inline extraction: Delivers 198m³/hr through a 170mm blower.
• Energy-conscious design: Suited to eco-sensitive and appropriate 5-Star energy-rated homes.
• Australian made: Manufactured locally for Australian household conditions.

• Ventilation: Extracts up to 198 m³/hr (55 L/s) to help remove steam, humidity and odours.
• On/off operation: Use the connected wall control to operate ventilation as required.

• Product type: Ceiling exhaust fan
• Model: 10380
• Barcode: 9313416103809
• Finish: White
• Airflow extraction: 198 m³/hr (55 L/s)
• Fan size: 170 mm
• Fan wattage: 40W
• Ducted: Yes
• Back draught protection: Yes
• Rated supply: 240V
• Warranty: 3-year parts and labour warranty
• Country of origin: China

• Installation type: Ceiling mounted.
• Required trade: Installation and electrical work must be completed in accordance with the user guide and applicable wiring rules.
• Cut-out: Provide a Ø160 mm ceiling opening.
• Ceiling cavity: Allow at least 230 mm total cavity height.
• Air replacement: Ensure sufficient replacement air can enter through windows, vents or beneath the door.
• Ducting: Connect to the specified 150 mm outlet and discharge outdoors with the shortest practical duct run.

Warranty coverage

IXL is an Australian-owned company with over 165 years of history, proudly designing and manufacturing their range of heating, ventilation, and lighting products in Geelong, Victoria. Every product is backed by a comprehensive manufacturer's warranty.

• Tastic units (Luminate, Ovation & Classic ranges): 5 years — In-home warranty
• Heat lamps & in-line exhaust fan (selected models): 2 years — Replacement
• Ventflo exhaust fans: 3 years — Parts and labour
• Aeroflow ceiling fans: 3 years in-home service, 2 years replacement

Proof of purchase is required for all warranty claims. Register your product at ixlappliances.com.au for faster after-sales service.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• In-home service where specified

What's not covered

• Damage caused by incorrect installation or failure to follow the product user guide
• Misuse, abnormal use, or negligent use of the product
• Accidental damage
• Normal wear and tear
• Products damaged after delivery without prior reporting
• Repairs or modifications carried out by unauthorised parties

Conditions

• Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules
• Must be used in accordance with the product user guide
• Products must be inspected for damage within 7 days of delivery
• Proof of purchase must be provided with all claims
• Register your product at ixlappliances.com.au for faster service

Making a claim

Contact IXL's customer service team on 1300 727 421 to initiate a warranty claim. IXL will first attempt to resolve the issue over the phone and if required will send a service agent to assess the product. Please have your proof of purchase ready when making contact.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Ducted ventilation carries humid air away from the room and building cavity, supporting better moisture management when correctly installed.

Select and position the fan in accordance with room size, ceiling height and the installation guide for best results.

• 1 x inline exhaust unit

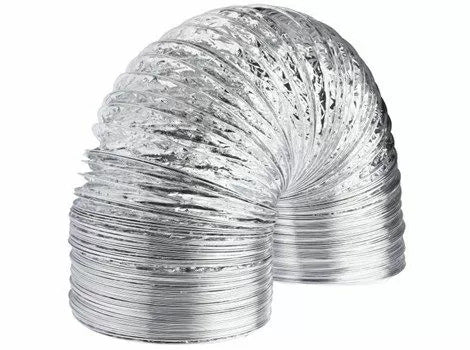

• 6 m x 150 mm flexible duct

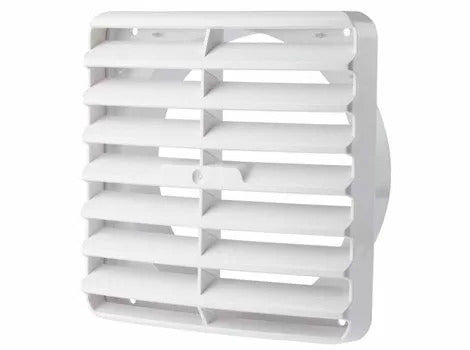

• 2 x interior/exterior grilles
• Flex and plug

• USER GUIDE & INSTALLATION INSTRUCTIONS (PDF)
• PRODUCT SPECIFICATIONS CHART (JPG)
