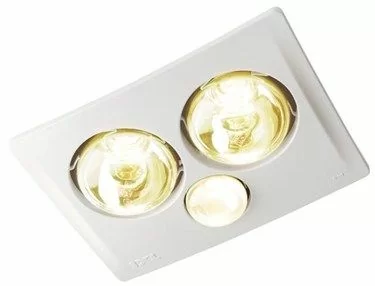

IXL 11511 Tastic Easy Duct Triumph 3 in 1 - Bathroom Heater, Exhaust Fan & Light

• Complete 3-in-1 solution: Combines twin-lamp heating, bathroom lighting and ducted steam extraction.
• Immediate radiant heat: Two 275W infrared lamps provide fast comfort for colder mornings and evenings.
• Ducted outdoor extraction: The 210m³/hr inline fan moves humid air outside rather than into the ceiling cavity.
• Installation kit included: Supplied with six metres of 150mm flexi-duct, an exterior grille and back draught flaps.
• Easy-clean fascia: The removable fascia is dishwasher safe for simpler routine maintenance.
• Room-matched performance: Suitable for bathrooms up to 4.38m² with a shower or 10.94m² without a shower.
• Australian made: Proudly manufactured in Australia for local bathroom conditions.
• Wall-switch operation: Heat, ventilation and light functions are conveniently controlled from the supplied switch.

• Heat: Two 275W infrared heat lamps provide independently selected radiant warmth.
• Ventilation: A 210m³/hr inline fan extracts steam through the supplied external ducting system.
• Lighting: The 10W R80 centre globe provides practical bathroom illumination.
• Wall-switch control: Use the supplied switch to operate heat, light and fan functions as required.

• Product type: 3-in-1 bathroom heater, exhaust fan and light
• Model: Tastic Easy Duct Triumph 11511
• Barcode: 9313416115116
• Finish: White
• Airflow extraction: 210 m³/hr (58 L/s)
• Fan size: 170 mm
• Heat lamps: 2 x 275W infrared
• Centre light: 10W R80 LED
• Total wattage: 590W (40W fan)
• Ducting: 6 m x 150 mm diameter flexi-duct included
• Room suitability with shower: Up to 4.38 m²
• Room suitability without shower: Up to 10.94 m²
• Minimum ceiling height: 2.1 m
• Maximum ceiling height: 2.4 m
• Total ceiling cavity required: 230 mm
• Inline fan maximum height: 215 mm
• Back draught flaps: Included
• Wall switch: Included
• Ducted: Yes
• Warranty: 5-year in-home unit warranty; 2-year replacement coverage on heat lamps and inline fan

• Installation type: Horizontal ceiling installation with externally ducted inline fan.
• Required trade: Installation must be completed by a qualified electrical tradesperson.
• Ducting: Use the supplied 6 m x 150 mm flexi-duct and exterior grille to exhaust outdoors.
• Ceiling height: Designed for ceiling heights from 2.1 to 2.4 metres.
• Ceiling cavity: Allow 230 mm total cavity height and follow the manual’s clearance requirements.
• Ventilation planning: Ensure adequate replacement air enters the bathroom for effective steam removal.

Warranty coverage

IXL is an Australian-owned company with over 165 years of history, proudly designing and manufacturing their range of heating, ventilation, and lighting products in Geelong, Victoria. Every product is backed by a comprehensive manufacturer's warranty.

• Tastic units (Luminate, Ovation & Classic ranges): 5 years — In-home warranty
• Heat lamps & in-line exhaust fan (selected models): 2 years — Replacement
• Ventflo exhaust fans: 3 years — Parts and labour
• Aeroflow ceiling fans: 3 years in-home service, 2 years replacement

Proof of purchase is required for all warranty claims. Register your product at ixlappliances.com.au for faster after-sales service.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• In-home service where specified

What's not covered

• Damage caused by incorrect installation or failure to follow the product user guide
• Misuse, abnormal use, or negligent use of the product
• Accidental damage
• Normal wear and tear
• Products damaged after delivery without prior reporting
• Repairs or modifications carried out by unauthorised parties

Conditions

• Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules
• Must be used in accordance with the product user guide
• Products must be inspected for damage within 7 days of delivery
• Proof of purchase must be provided with all claims
• Register your product at ixlappliances.com.au for faster service

Making a claim

Contact IXL's customer service team on 1300 727 421 to initiate a warranty claim. IXL will first attempt to resolve the issue over the phone and if required will send a service agent to assess the product. Please have your proof of purchase ready when making contact.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The Easy Duct configuration places the exhaust fan inline with the supplied ducting, allowing steam to be discharged outside while keeping the ceiling unit focused on heat and light.

The listed room suitability assumes a standard bathroom layout. Open showers and unusually high moisture loads may require supplementary ventilation.

• Wall switch
• 2 x 275W infrared heat lamps
• 10W R80 LED centre globe

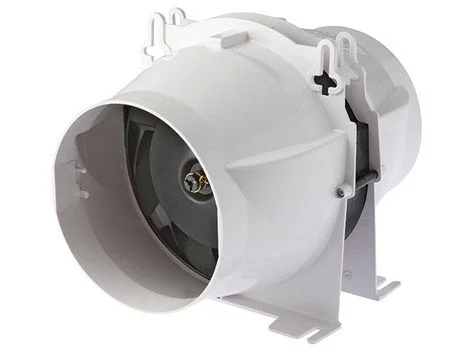

• Inline exhaust fan
• Back draught flaps

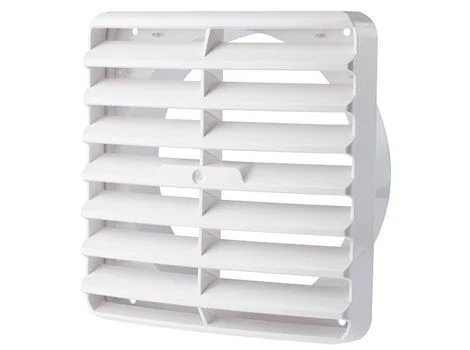

• Exterior grille

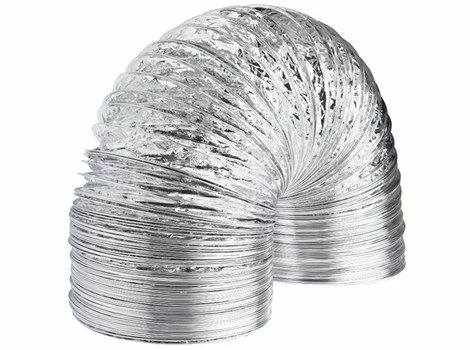

• 6 m x 150 mm flexi-duct
