IXL 4223 Aeroflow Skywave 132cm DC Ceiling Fan

• Efficient 35W DC motor: Delivers strong circulation with considered energy use.
• Six-speed remote control: Makes precise comfort adjustments easy from across the room.
• High maximum airflow: Moves up to 12,000m³/hr.
• Streamlined ABS blades: Creates a contemporary three-blade profile.
• White and black variants: Offers flexibility for different interior palettes.

• Six fan speeds: Select gentle background circulation or stronger cooling.
• Summer mode: Creates a cooling downward breeze.
• Winter mode: Reverses airflow to redistribute warm air.
• Remote operation: Controls airflow speed and direction from across the room.

• Product type: DC ceiling fan
• Model range: Aeroflow Skywave 4223

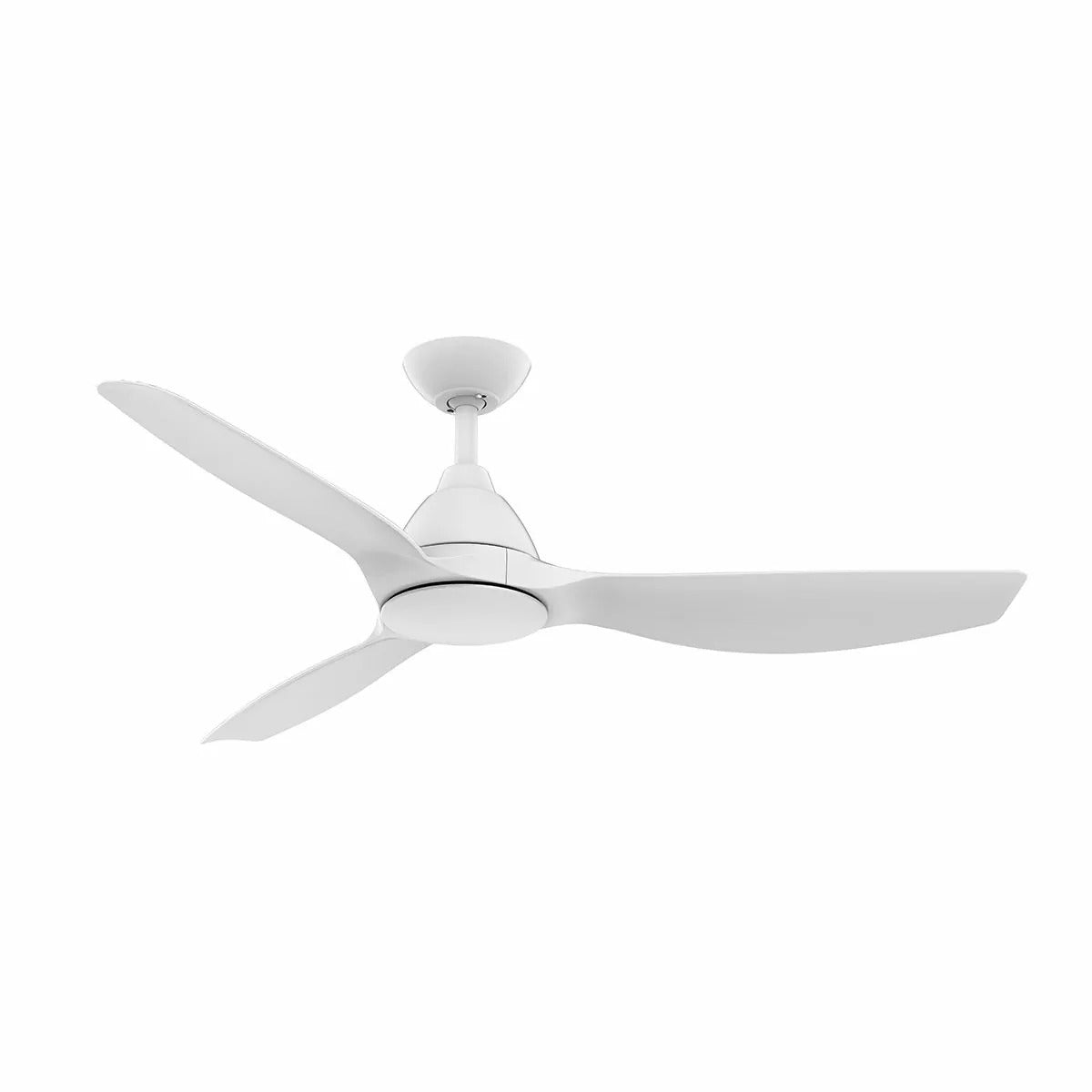

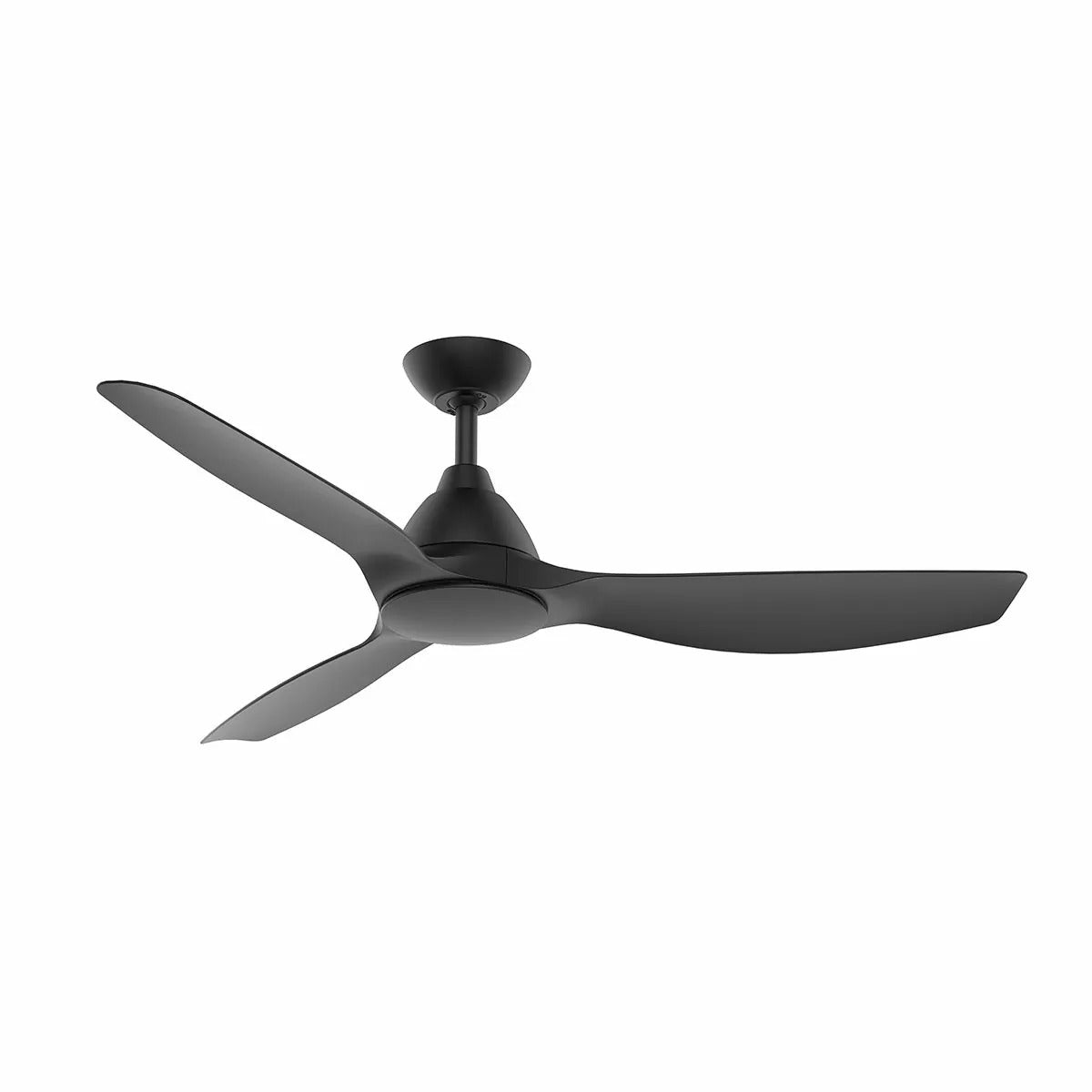

• Variant SKUs: 42230 White; 42231 Black
• Motor: 35W DC
• Control: 6-speed remote control
• Blade material: ABS plastic
• Blade pitch: 13°
• Maximum speed: 180 RPM
• Maximum airflow: 12,000m³/hr
• Downrod: 12.7cm
• Room suitability: Up to 27m²
• Reversible airflow: Yes
• Light: No
• Country of origin: China
• IP rating: IPX0
• Supplied rod length: 5"
• Overall installed height: 34 cm
• Remote control batteries included: Yes

• Installation type: Ceiling mounted.
• Required trade: Installation must be completed by a licensed electrician.
• Minimum clearance: Maintain at least 2.1m between blades and finished floor.
• Remote receiver: Install and pair according to the supplied instructions.
• Location: Suitable indoors or in an appropriately protected undercover outdoor area.

Warranty coverage

IXL is an Australian-owned company with over 165 years of history, proudly designing and manufacturing their range of heating, ventilation, and lighting products in Geelong, Victoria. Every product is backed by a comprehensive manufacturer's warranty.

• Tastic units (Luminate, Ovation & Classic ranges): 5 years — In-home warranty
• Heat lamps & in-line exhaust fan (selected models): 2 years — Replacement
• Ventflo exhaust fans: 3 years — Parts and labour
• Aeroflow ceiling fans: 3 years in-home service, 2 years replacement

Proof of purchase is required for all warranty claims. Register your product at ixlappliances.com.au for faster after-sales service.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• In-home service where specified

What's not covered

• Damage caused by incorrect installation or failure to follow the product user guide
• Misuse, abnormal use, or negligent use of the product
• Accidental damage
• Normal wear and tear
• Products damaged after delivery without prior reporting
• Repairs or modifications carried out by unauthorised parties

Conditions

• Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules
• Must be used in accordance with the product user guide
• Products must be inspected for damage within 7 days of delivery
• Proof of purchase must be provided with all claims
• Register your product at ixlappliances.com.au for faster service

Making a claim

Contact IXL's customer service team on 1300 727 421 to initiate a warranty claim. IXL will first attempt to resolve the issue over the phone and if required will send a service agent to assess the product. Please have your proof of purchase ready when making contact.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

• Black is presented first on this product to vary the colour order across the range.
• Estimated carton dimensions are used until confirmed by IXL.

• Ceiling fan assembly
• Three ABS blades
• 6-speed remote control
• Remote receiver
• 12.7cm downrod

• INSTALLATION INSTRUCTIONS (PDF)
