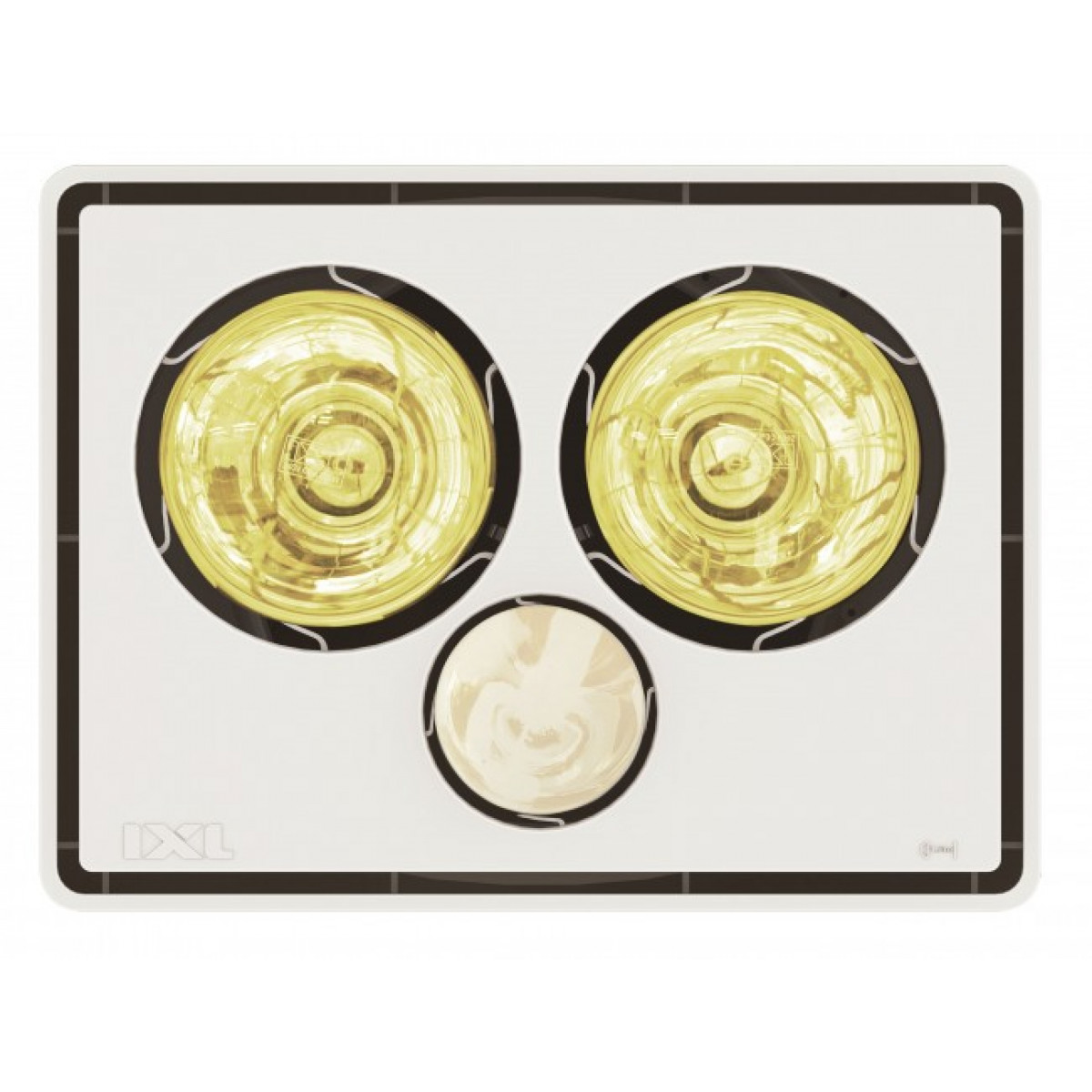

IXL Appliances 11323 Tastic Vivid 3 in 1 - Bathroom Heater, Exhaust Fan & Light

• Three functions in one: Combines radiant bathroom heating, steam extraction and adaptable LED lighting in a single ceiling unit.
• Fast infrared warmth: Two 275W heat lamps provide immediate directional warmth when stepping out of the shower.
• Powerful extraction: A 310m³/hr exhaust fan helps clear steam, humidity and condensation from the bathroom.
• Multi-option lighting: The 10W R80 LED globe switches between Warm, Cool and Daylight illumination.
• Australian made: Designed and manufactured in Australia for local homes and installation requirements.
• Clean white fascia: A simple neutral finish integrates easily into contemporary and traditional bathrooms.
• Independent wall controls: Operate the heating, light and ventilation functions according to the room’s needs.
• Room-matched performance: Suitable for bathrooms up to 6.46m² with a shower or 16.15m² without a shower.

• Heat: Independently controlled twin 275W infrared heat lamps provide fast directional warmth.
• Ventilation: The 310m³/hr exhaust fan helps remove steam and humidity from the bathroom.
• Lighting: A 10W R80 centre globe provides selectable Warm, Cool or Daylight illumination.
• Wall-switch control: Heat, light and ventilation functions can be selected to suit the moment.

• Product type: 3-in-1 bathroom heater, exhaust fan and light
• Model: Tastic Vivid 11323
• Barcode: 9332048028939
• Finish: White
• Airflow extraction: 310 m³/hr (86 L/s)

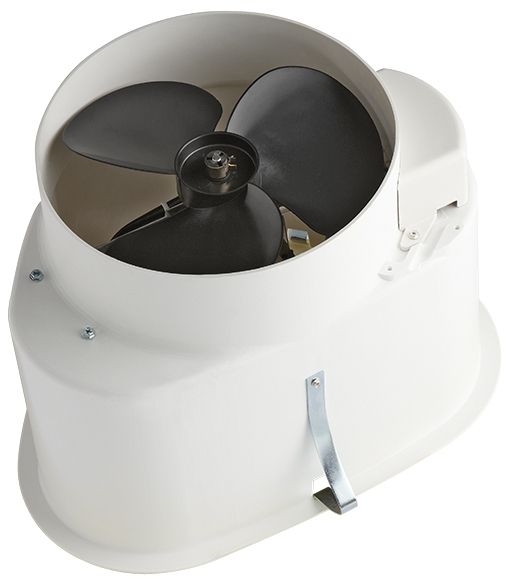

• Fan size: 200 mm
• Heat lamps: 2 x 275W infrared
• Centre light: 10W R80 multi-option LED
• Lighting modes: Warm, Cool and Daylight
• Total wattage: 590W (40W fan)
• Room suitability with shower: Up to 6.46 m²
• Room suitability without shower: Up to 16.15 m²
• Minimum ceiling height: 2.1 m
• Maximum ceiling height: 2.4 m
• Maximum unit height: 230 mm
• Minimum ceiling cavity including clearance: 305 mm
• Back draught flaps: No
• Wall switch: Included
• Ducted: No
• Warranty: 5-year in-home unit warranty; 2-year replacement coverage on specified components

• Installation type: Horizontal ceiling installation.
• Required trade: Installation must be completed by a qualified electrical tradesperson.
• Ceiling height: Suitable for ceiling heights from 2.1 to 2.4 metres.
• Ceiling cavity: Allow at least 305 mm including the required clearance.
• Ventilation planning: Provide adequate replacement air into the bathroom and follow the supplied positioning guidance.
• Safety: Do not cover the appliance with ceiling insulation and install in accordance with AS/NZS 3000 requirements for damp locations.

Warranty coverage

IXL is an Australian-owned company with over 165 years of history, proudly designing and manufacturing their range of heating, ventilation, and lighting products in Geelong, Victoria. Every product is backed by a comprehensive manufacturer's warranty.

• Tastic units (Luminate, Ovation & Classic ranges): 5 years — In-home warranty
• Heat lamps & in-line exhaust fan (selected models): 2 years — Replacement
• Ventflo exhaust fans: 3 years — Parts and labour
• Aeroflow ceiling fans: 3 years in-home service, 2 years replacement

Proof of purchase is required for all warranty claims. Register your product at ixlappliances.com.au for faster after-sales service.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• In-home service where specified

What's not covered

• Damage caused by incorrect installation or failure to follow the product user guide
• Misuse, abnormal use, or negligent use of the product
• Accidental damage
• Normal wear and tear
• Products damaged after delivery without prior reporting
• Repairs or modifications carried out by unauthorised parties

Conditions

• Must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules
• Must be used in accordance with the product user guide
• Products must be inspected for damage within 7 days of delivery
• Proof of purchase must be provided with all claims
• Register your product at ixlappliances.com.au for faster service

Making a claim

Contact IXL's customer service team on 1300 727 421 to initiate a warranty claim. IXL will first attempt to resolve the issue over the phone and if required will send a service agent to assess the product. Please have your proof of purchase ready when making contact.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The Tastic Vivid uses radiant infrared heating, which is designed to warm the person standing beneath the unit rather than heat the entire bathroom. Positioning the appliance near the drying area provides the most effective comfort.

Bathrooms with open showers, unusually high moisture loads or restricted replacement air may require additional ventilation.

• Wall switch
• 2 x 275W infrared heat lamps
• 10W R80 multi-option LED globe
• Cut-out template

• USER GUIDE (PDF)
• PRODUCT SPECIFICATIONS CHART (JPG)
