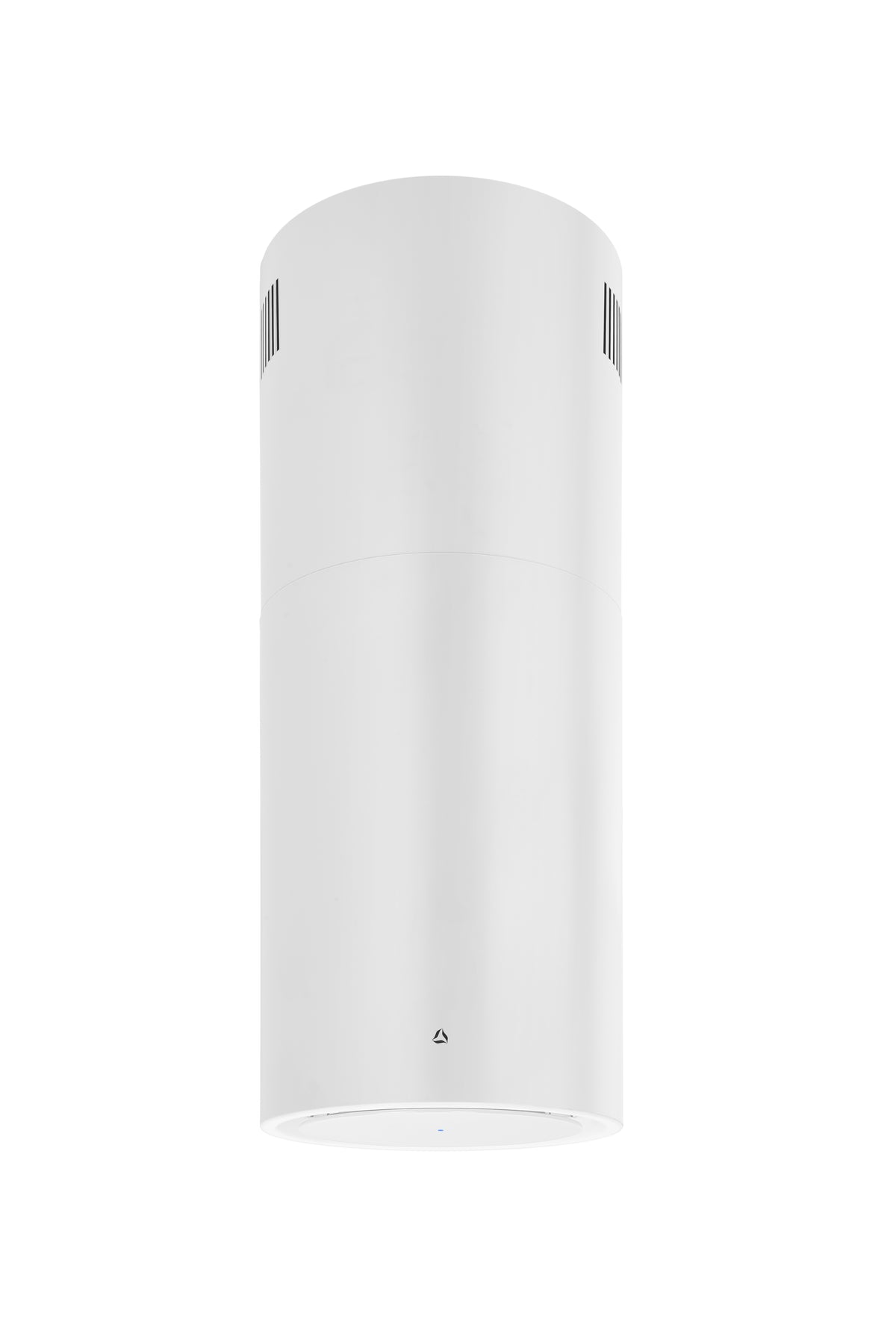

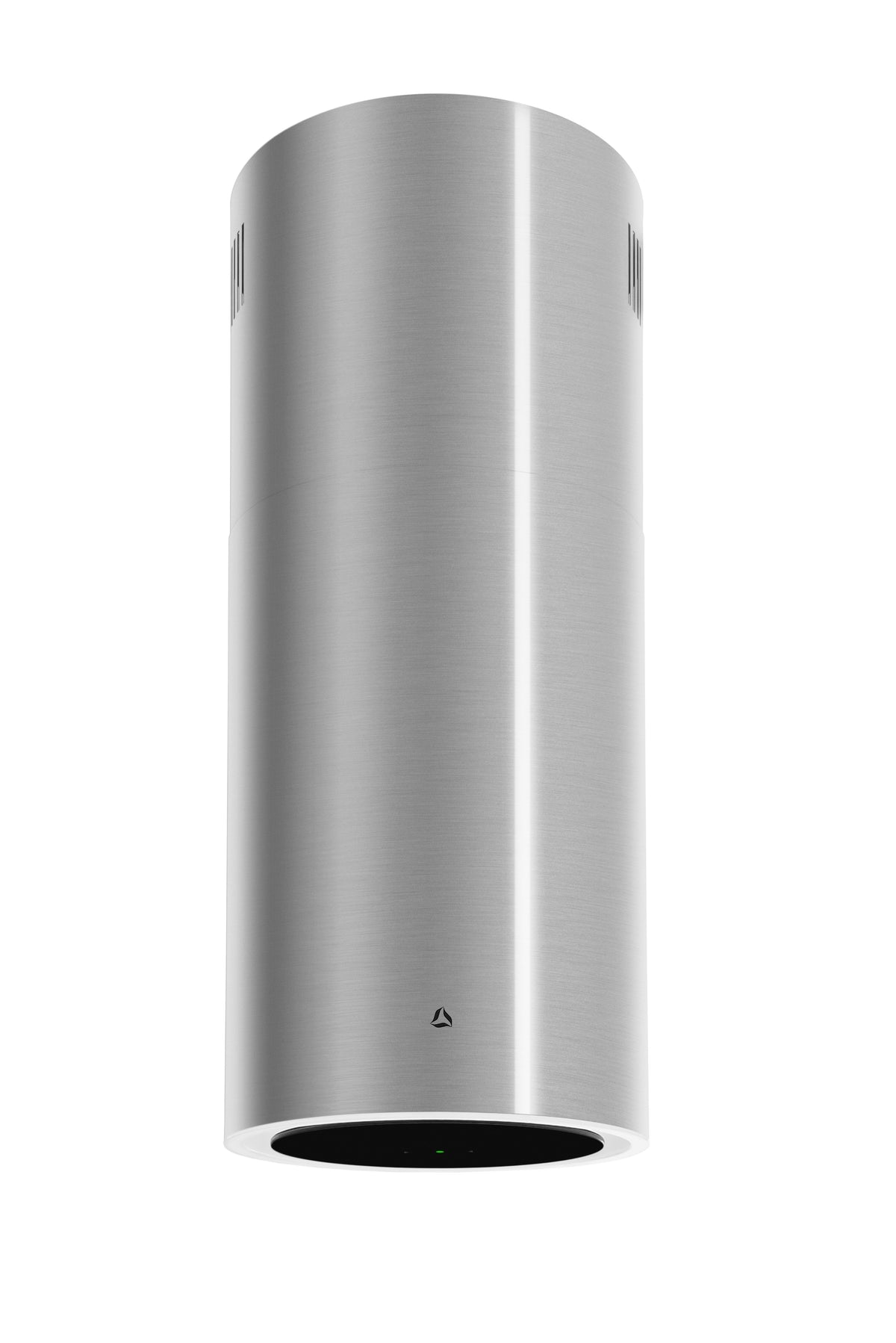

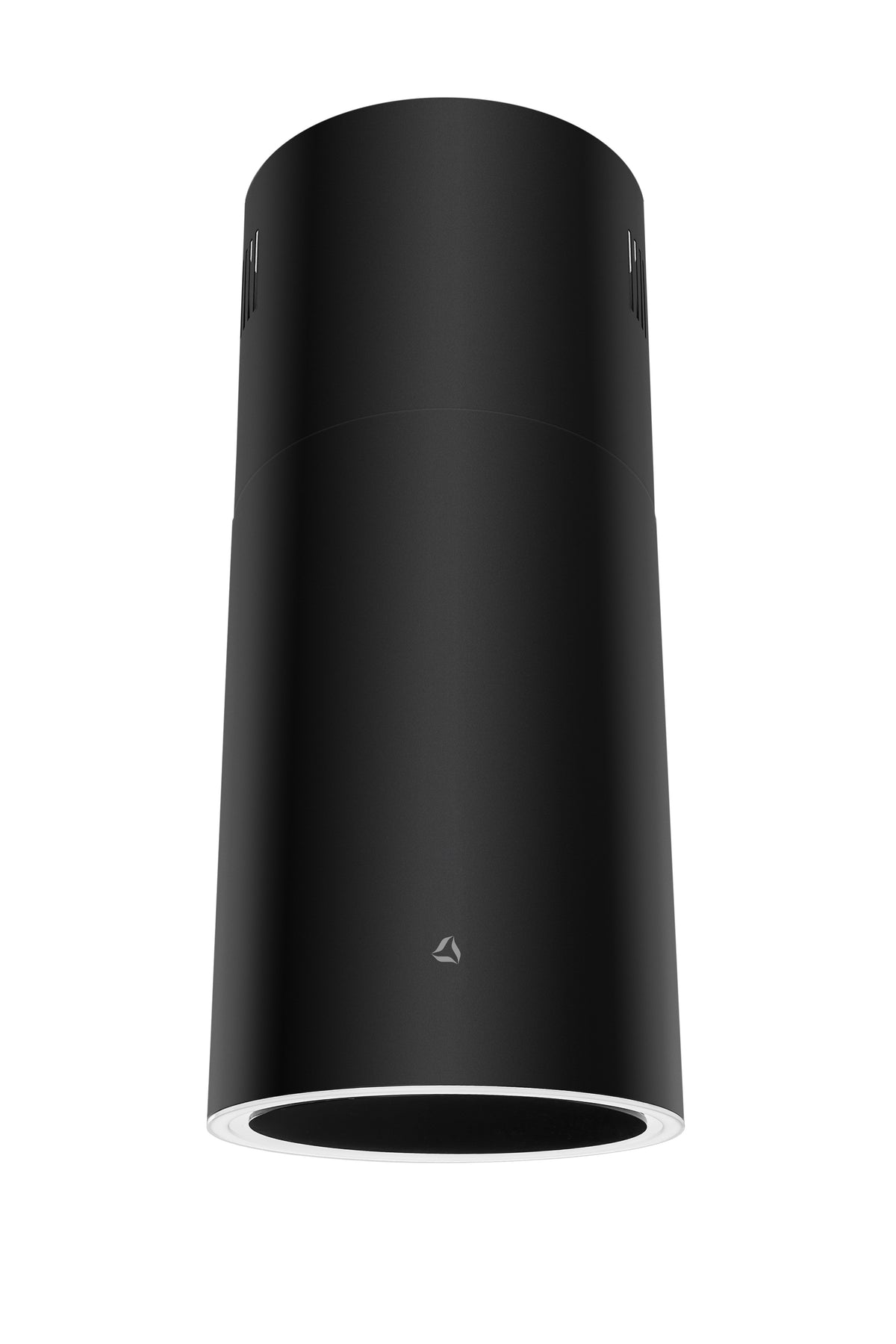

Schweigen Design SDHALO 38cm Wide Halo Island Rangehood

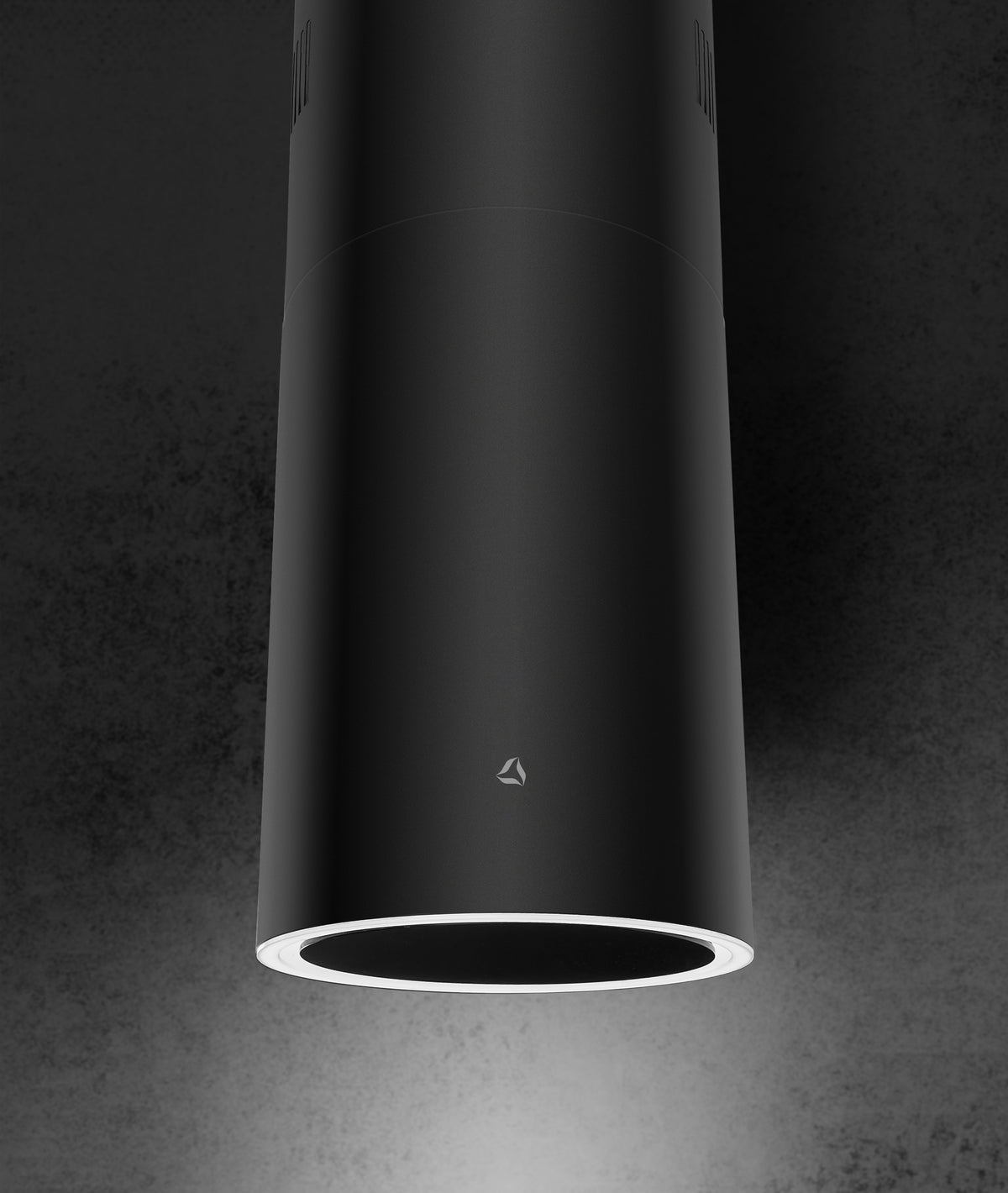

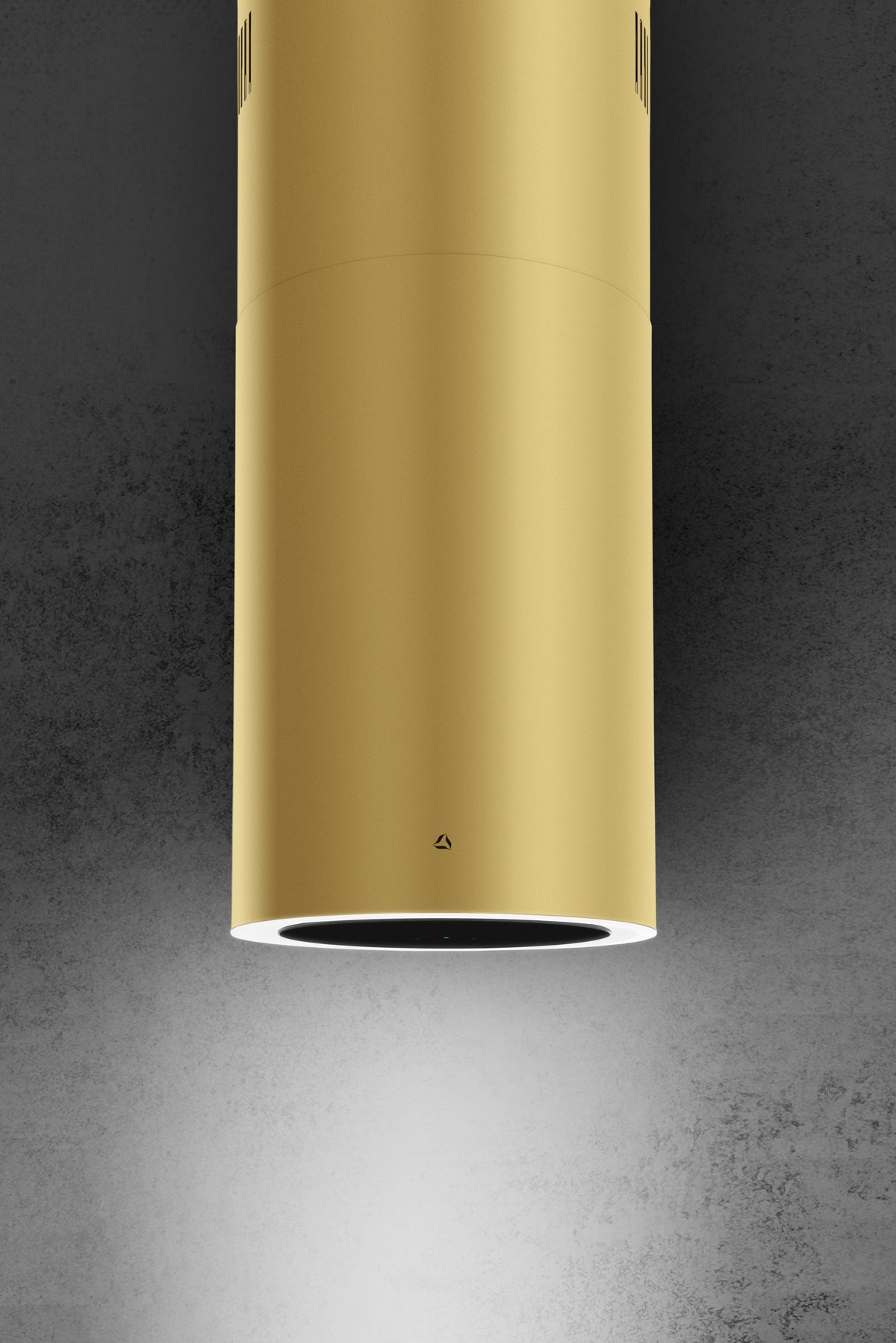

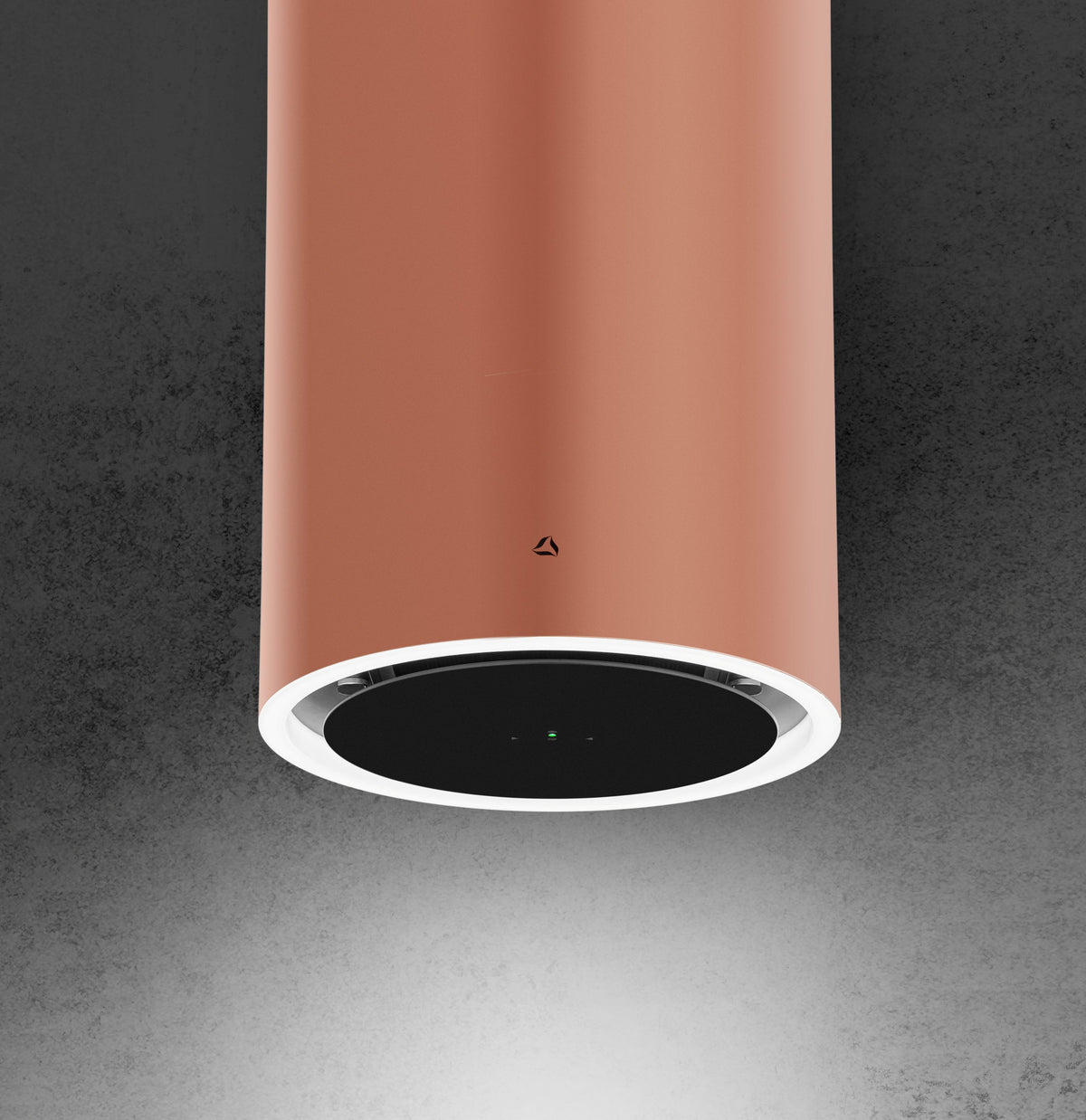

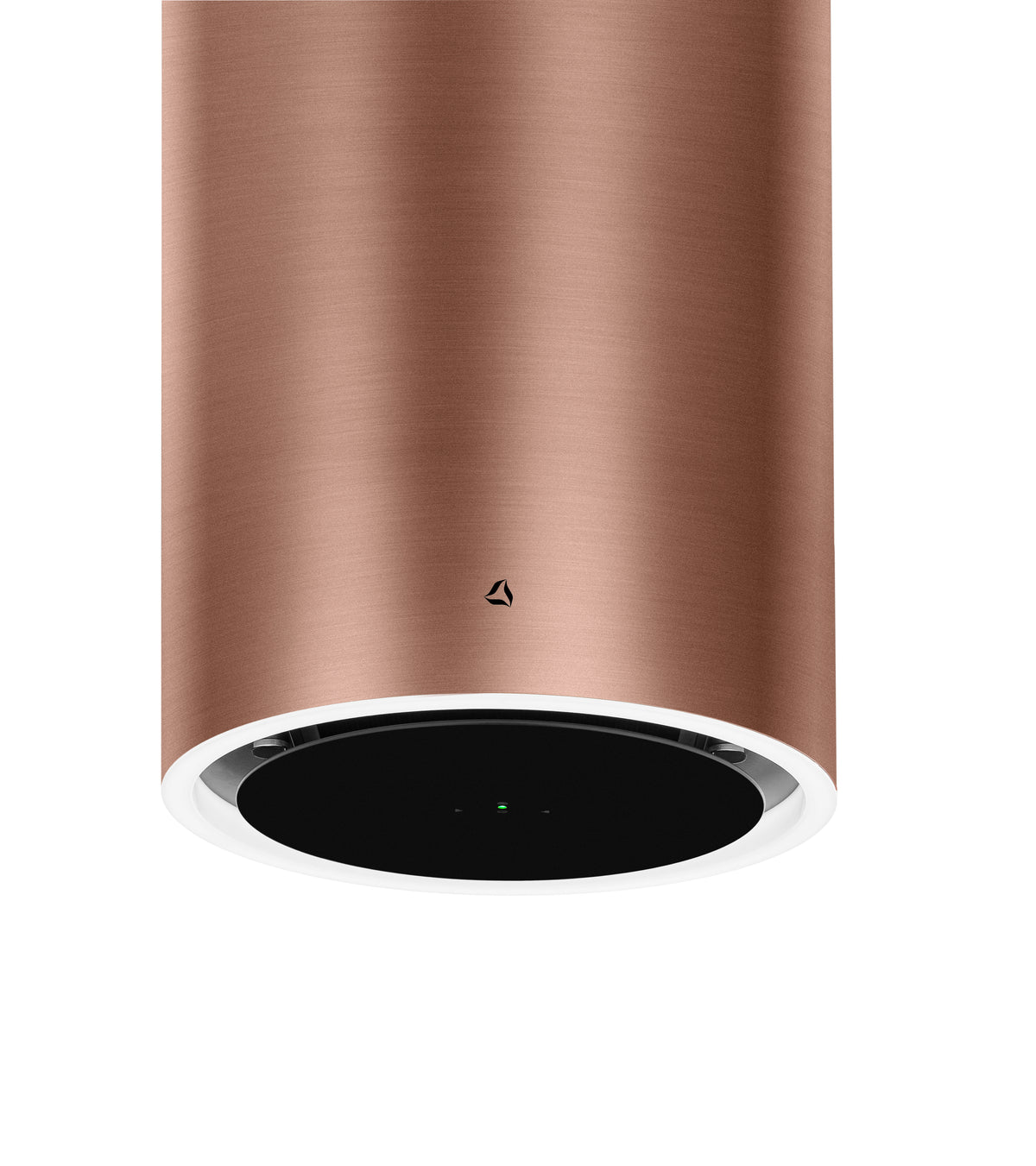

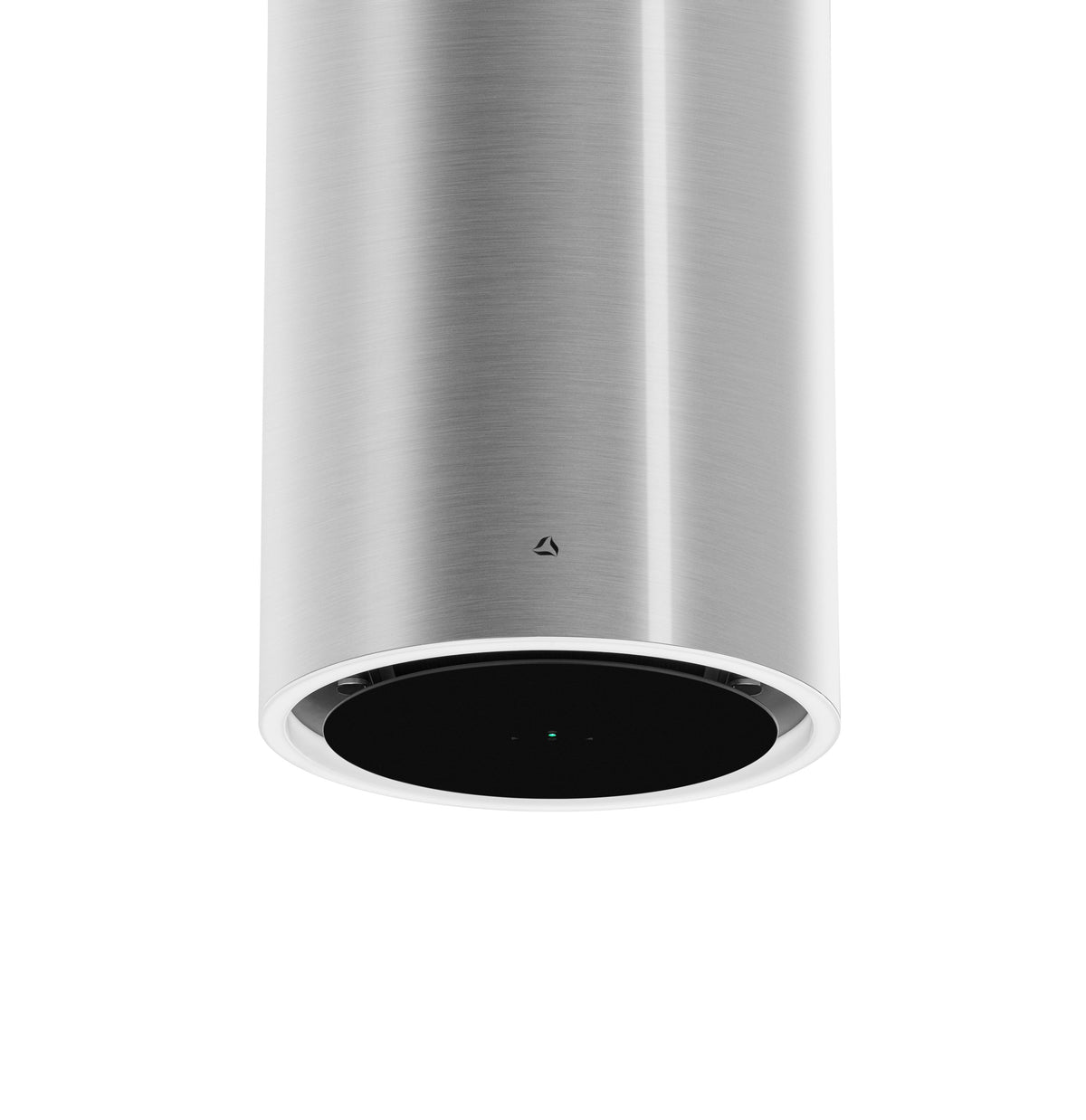

• Cylindrical island design: A 382mm-diameter form creates a compact statement above the island.
• 1080m³/h airflow: Provides high-capacity onboard extraction for everyday cooking.
• Brushless onboard motor: Delivers energy-efficient ventilation within the suspended canopy.
• Gesture and remote control: Enables touch-free or remote operation without visible front controls.

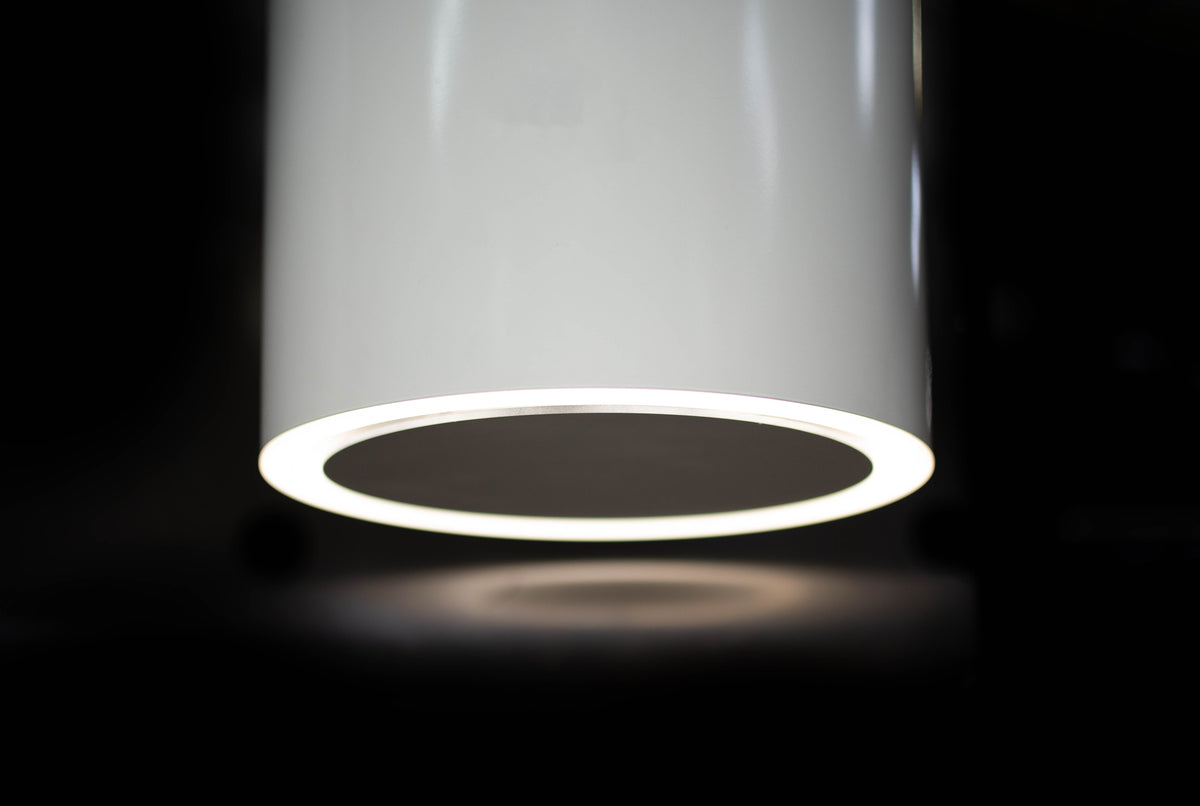

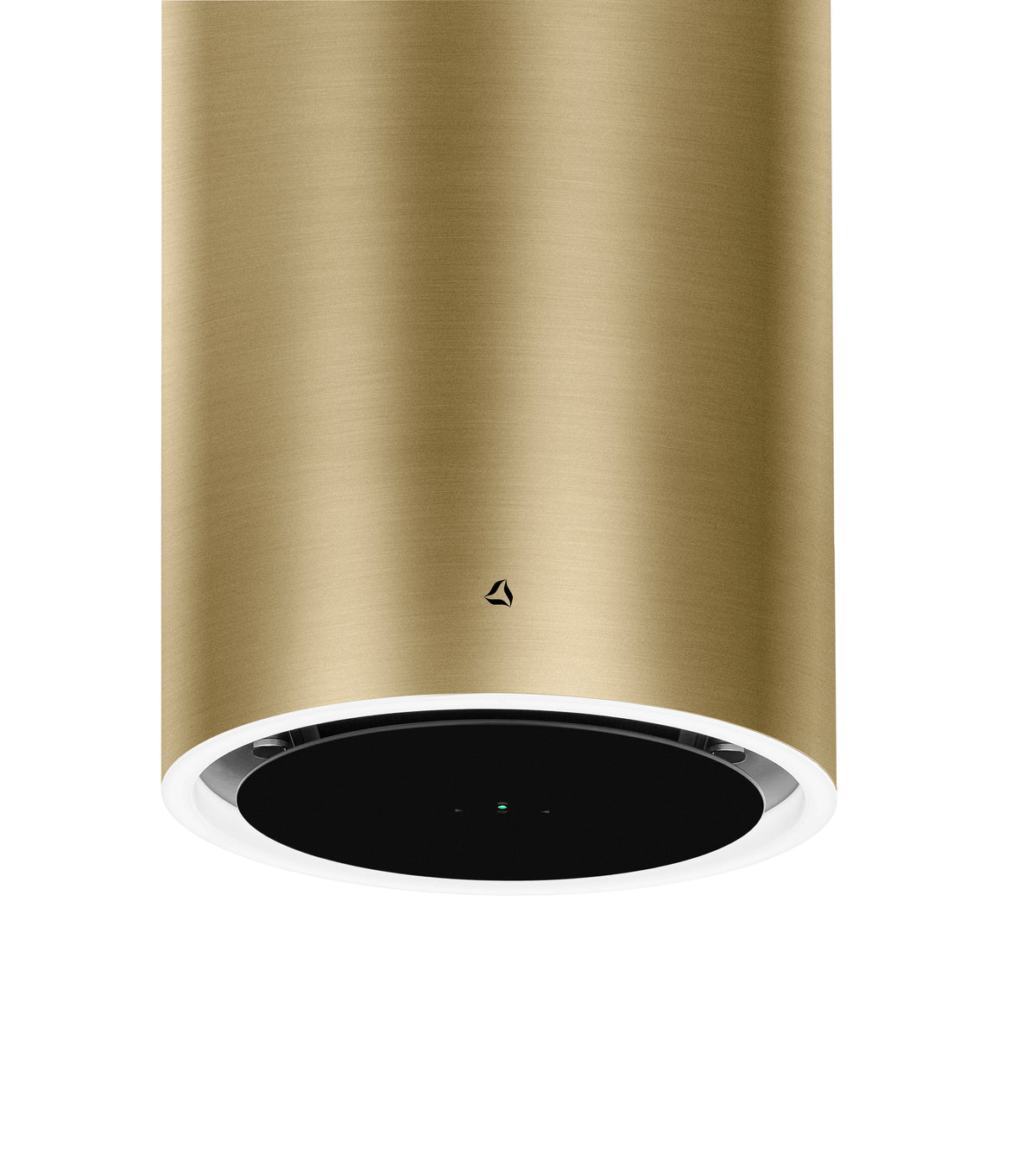

• Cylindrical Warm2Cold LED: The 8W ring adjusts from 2900K to 6000K for ambience or task clarity.

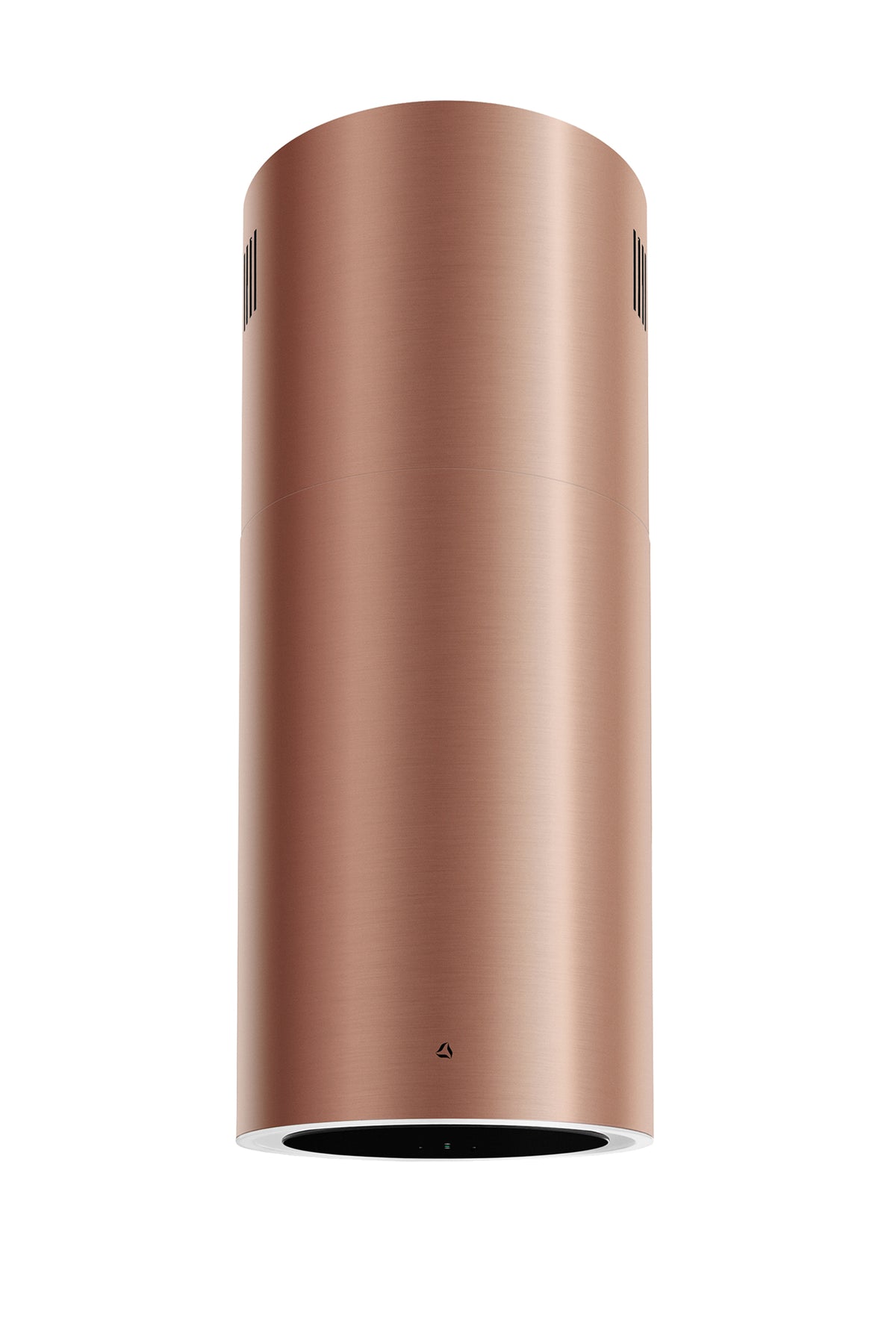

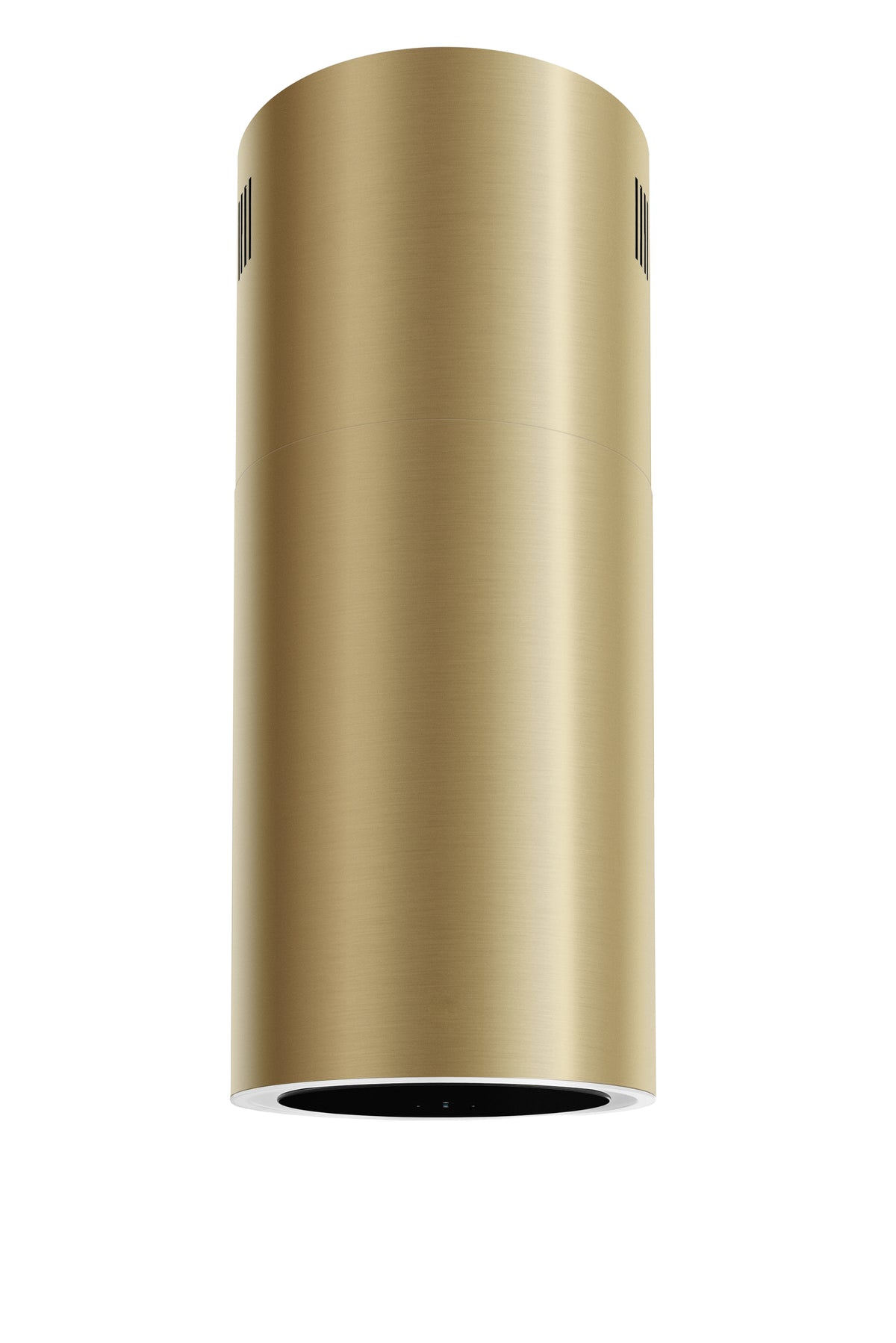

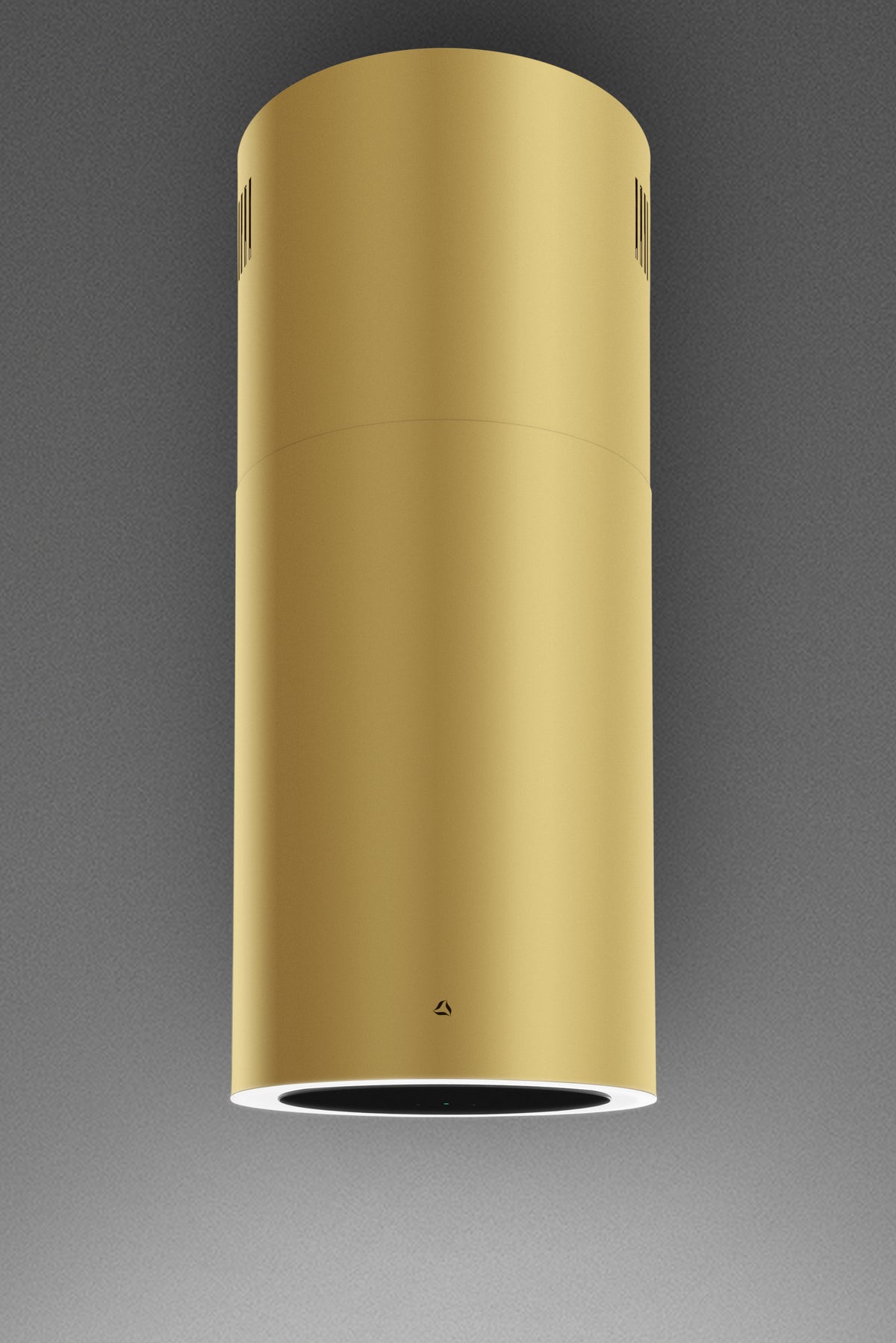

• Tri-coat hand-painted finish: Designed for improved resistance to grease, dirt and dust.
• Fine-mesh filtration: The removable filter supports regular dishwasher cleaning.

• Four extraction levels: Select from three regular fan speeds plus boost; boost automatically returns to level 3 after five minutes.

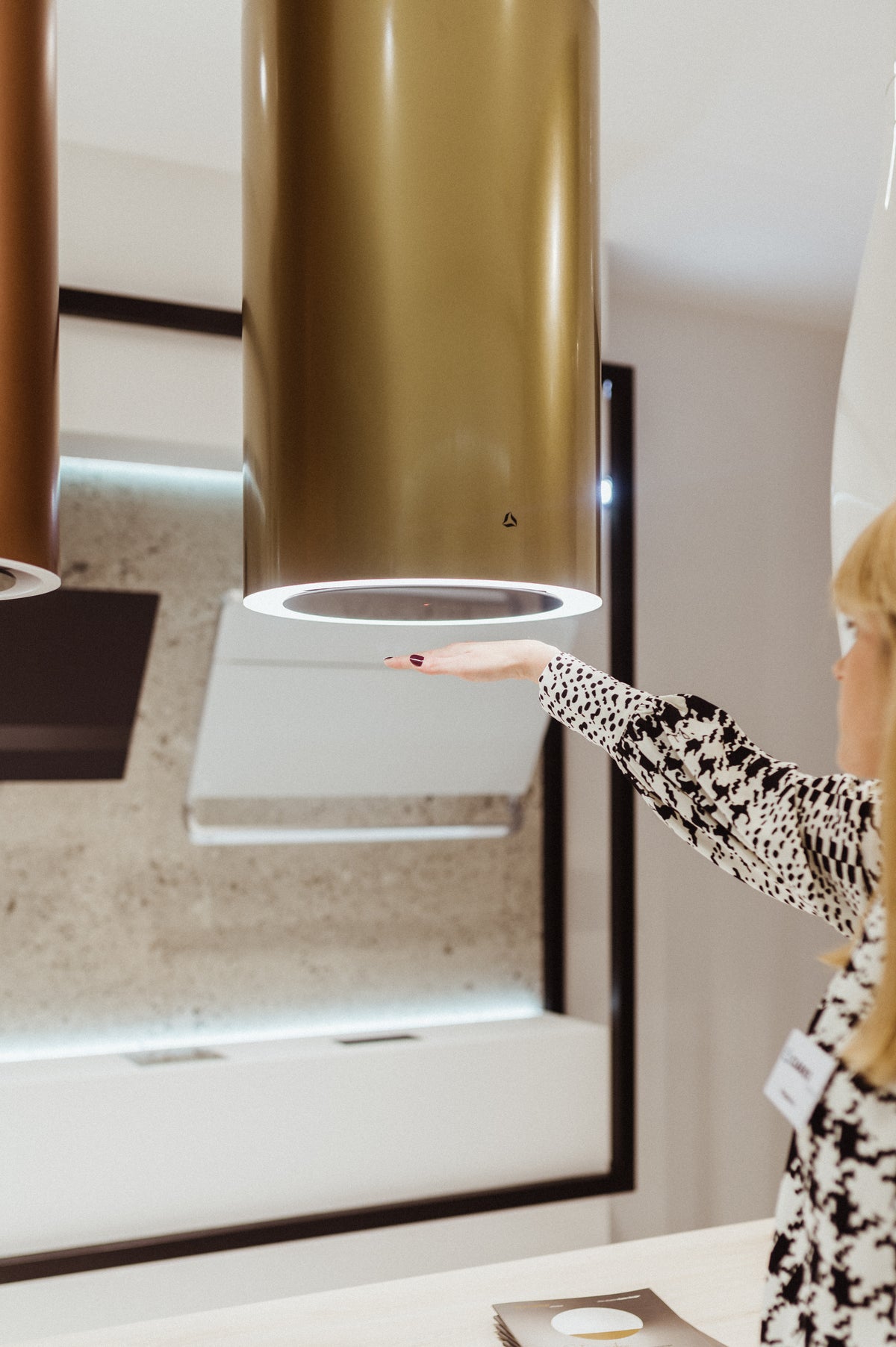

• Gesture Control: Operate the motor speeds and lighting without touching the rangehood.
• Remote control: Adjust extraction, lighting and timer functions conveniently from around the kitchen.
• Warm2Cold lighting: Adjust the LED colour temperature from warm 2900K illumination to cool 6000K task lighting.
• Three-stage light dimming: Select from three lighting intensity levels to suit cooking, dining or ambient use.
• 10-minute timer: Set the rangehood to continue extracting for 10 minutes before switching off automatically.

• Brand: Schweigen Design
• Model: SDHALO
• Product type: Island rangehood
• Motor type: Integrated onboard brushless motor
• Maximum airflow: 1080m³/h
• Fan speeds: 4, including boost
• Controls: Gesture Control and remote control
• Lighting: 1 × 8W cylindrical Warm2Cold LED, 2900K-6000K
• Filtration: 1 × fine-mesh grease filter
• Electrical supply: 220-240V, 50Hz
• Ducting outlet: 150mm

• Professional installation: Installation and electrical connection must be completed by an appropriately qualified and authorised professional in accordance with local requirements.

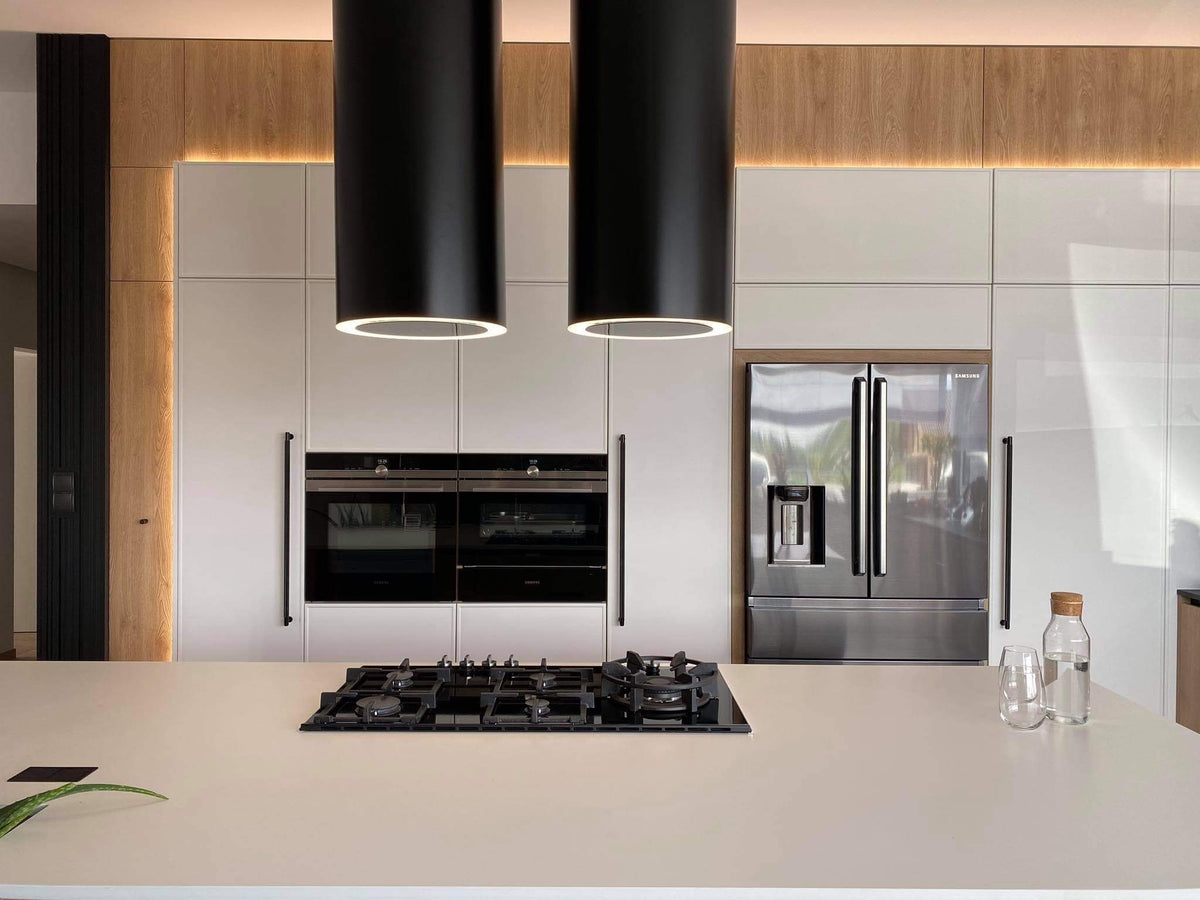

• Cooktop positioning: Centre the rangehood over the cooking surface to support effective capture of steam, smoke and airborne grease.
• Minimum clearance: Allow at least 600mm above an electric cooktop or 650mm above a gas cooktop, unless the cooktop manufacturer requires more.
• Induction guidance: Schweigen recommends at least 700mm above induction cooking surfaces to help manage condensation.
• Ducting: Use 150mm ducting vented outdoors. Keep the ducting taut, avoid reductions and restrictive bends, and limit the run to approximately 4 metres where practical.
• Service access: Keep controls, electrical components and connection points accessible for future servicing.

Warranty coverage

Schweigen is a 100% Australian-owned company specialising in German-engineered silent rangehoods. Every product is backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance behind every appliance.

• Schweigen silent rangehoods (standard range): 5 years — Parts and labour
• Schweigen Design rangehoods: 5 years — Parts and labour
• Schweigen X & Exclusive rangehoods: 3 years — Parts and labour
• Schweigen onboard BBQ alfresco rangehoods: 3 years — Parts and labour
• Schweigen SteelFlex™ ducting: Limited lifetime — Against fair wear and tear from normal use
• Filters & GU10 LED globes (purchased from 1 January 2017): Limited lifetime — Against fair wear and tear from normal use
• Isodrive® & Ecodrive® motors: Refer to individual motor warranty card
• Silent exhaust fans: Refer to silent exhaust fan warranty card

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable. Warranty claims must be lodged within 10 business days of becoming aware of the fault.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• Lifetime coverage on SteelFlex™ ducting, filters, and GU10 LED globes against fair wear and tear

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Damage from power surges, incorrect voltage, or liquid spillage
• Moisture, condensation, or water build-up not caused by a manufacturing defect
• Unauthorised modifications or repairs
• Normal wear and tear
• Commercial use of domestic appliances without written Schweigen consent
• Products not purchased as brand new from an authorised Australian retailer

Conditions

• Must be installed by a qualified installer with appropriate licences and experience
• Must be installed using the correct high-flow vent and ducting size
• Must be used and maintained in accordance with the product manual
• Warranty claims must be lodged within 10 business days of becoming aware of the fault
• Proof of purchase must be provided with all claims
• The warranty applies to the original purchaser only

Making a claim

Claims can be submitted via the service request form at schweigen.com.au or by contacting Schweigen's customer support team on 1300 881 693. Please have your proof of purchase and product model and serial numbers ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

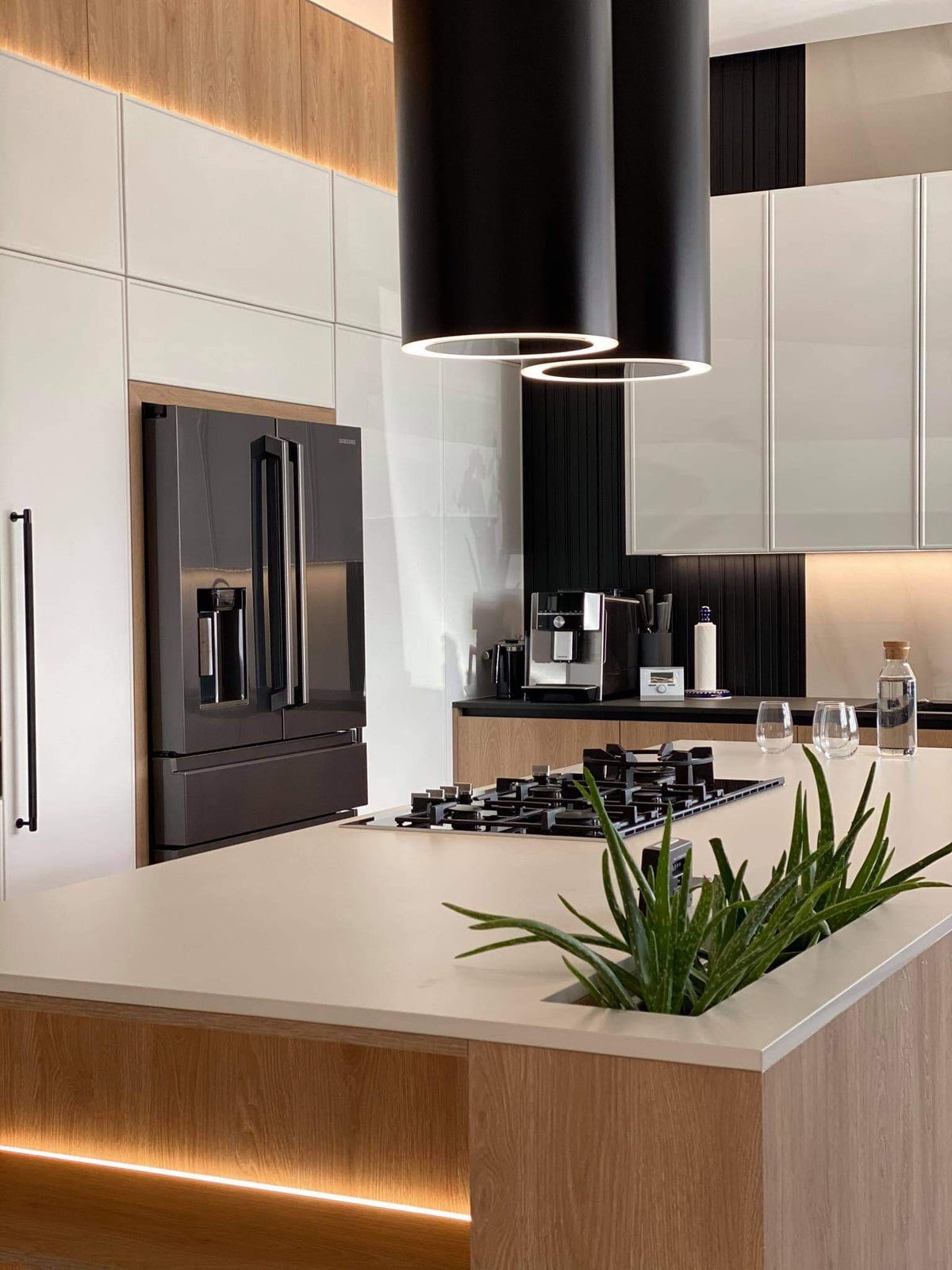

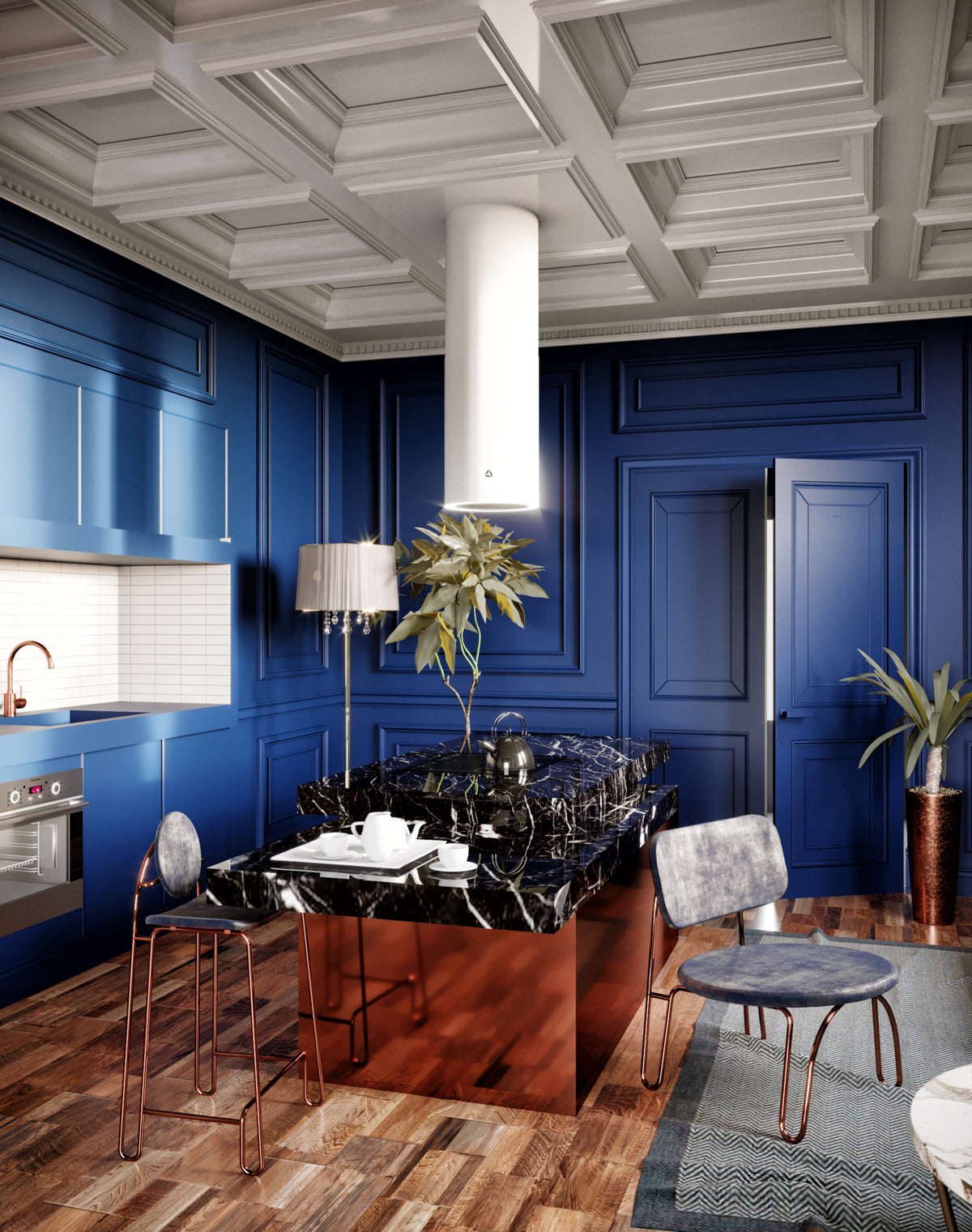

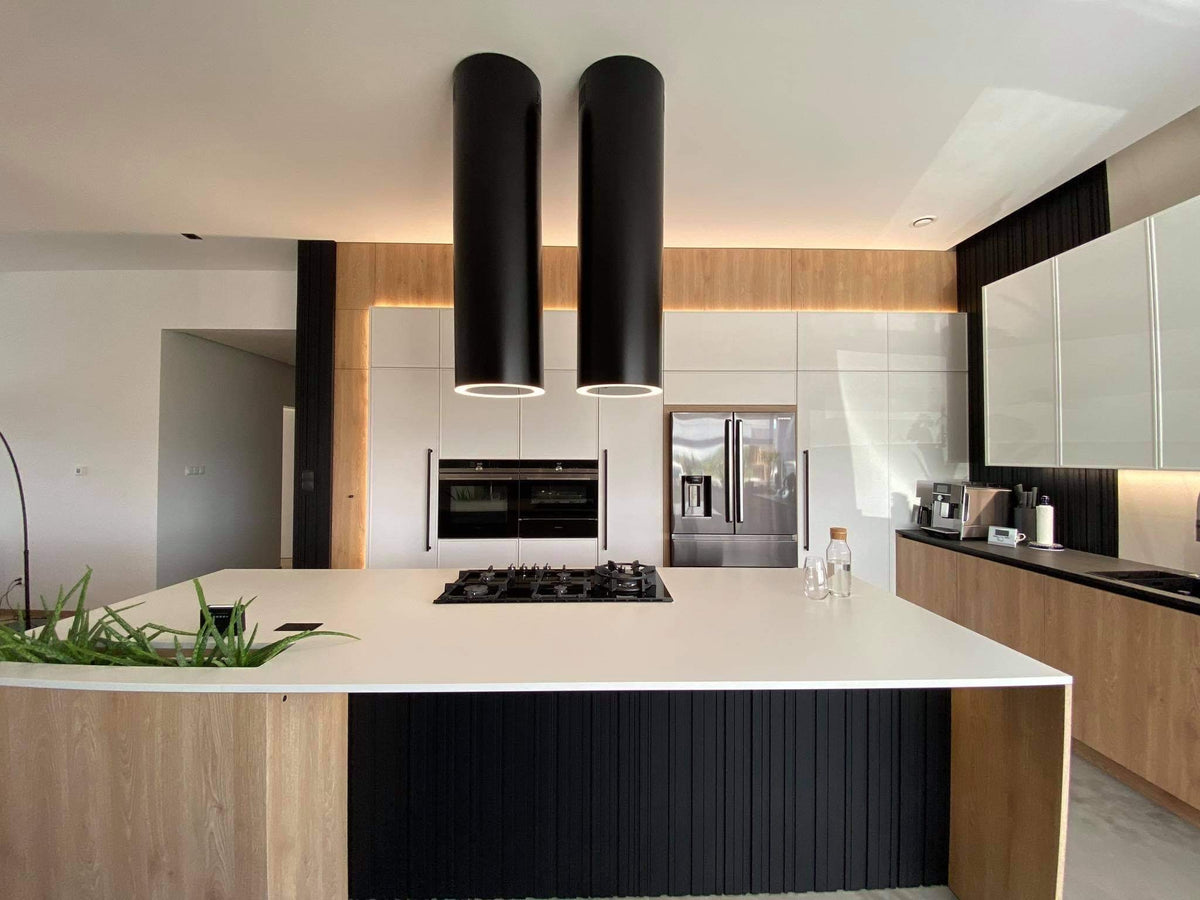

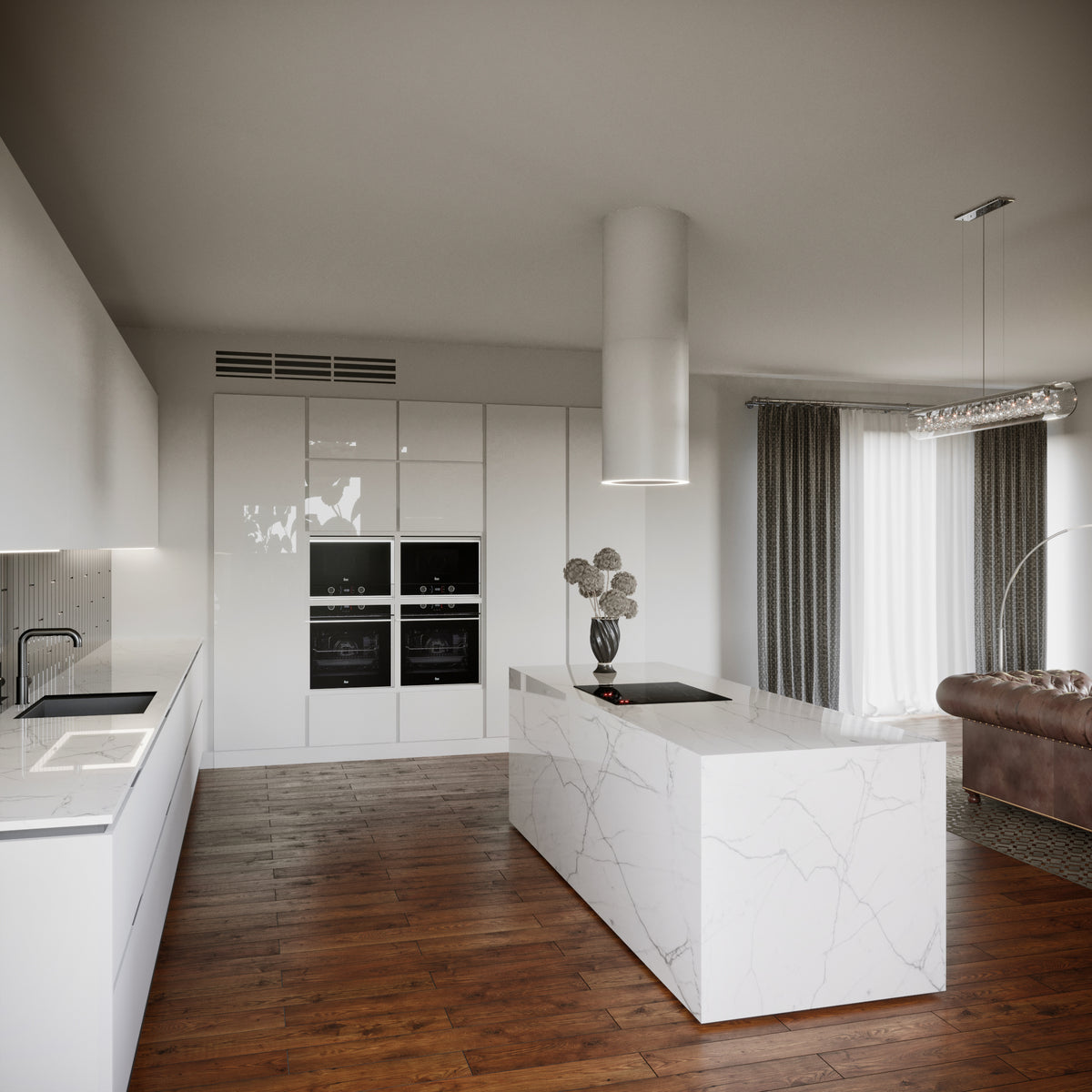

Halo is an island-mounted model with an adjustable overall height. Ceiling structure, final suspension height and duct routing must be confirmed before installation.

This listing uses an onboard motor configuration; it should not be confused with Schweigen off-board Isodrive Silent models.

• Rangehood: Canopy and integrated onboard brushless motor.
• Fine-mesh filtration: 1 × fine-mesh grease filter
• Remote control: Supplied for convenient operation where specified.
• Installation components: Model-specific mounting hardware and product documentation.
• Ducting components: 150mm × 4m Schweigen SteelFlex™ ducting and steel ring clamps where included by the manufacturer.
