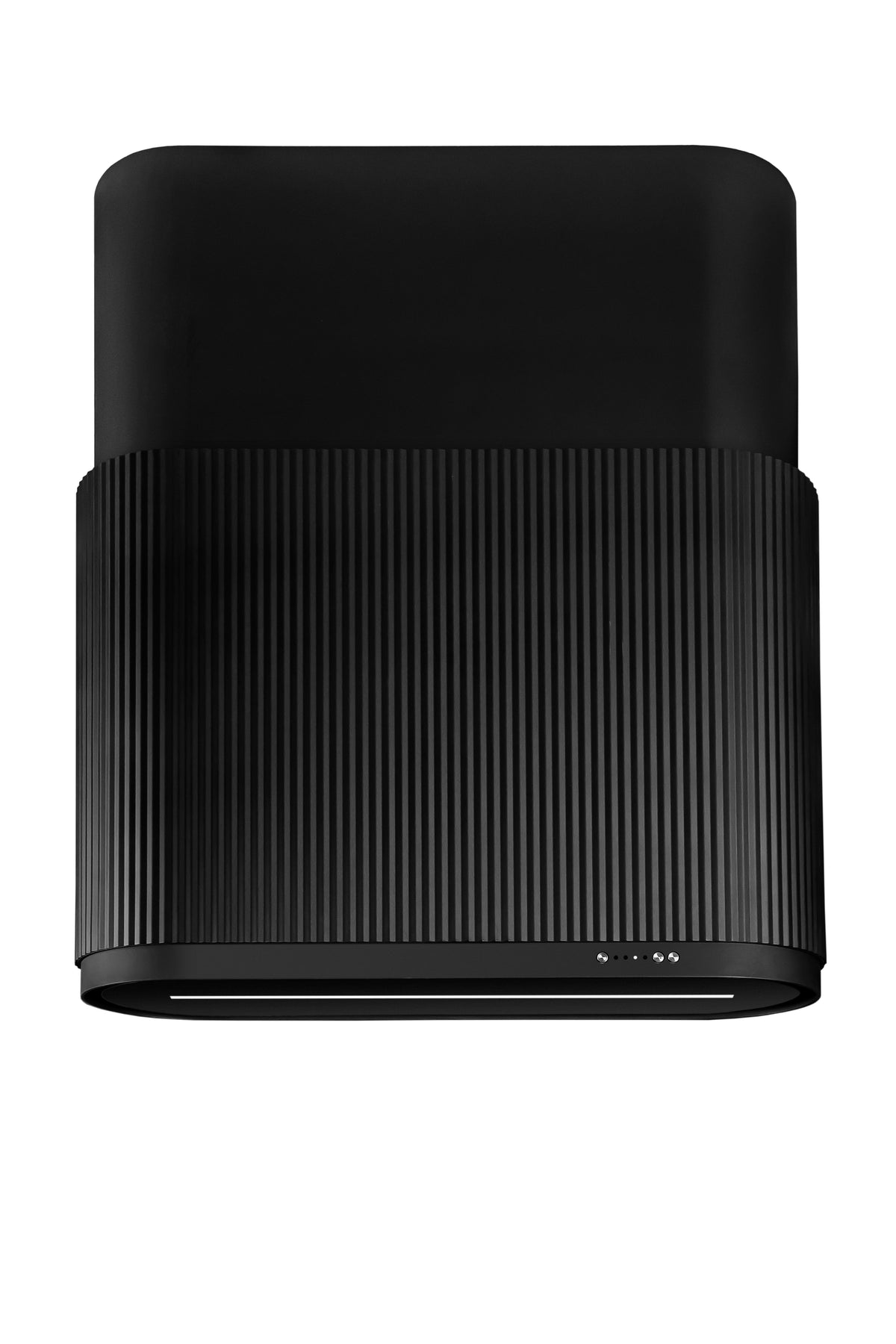

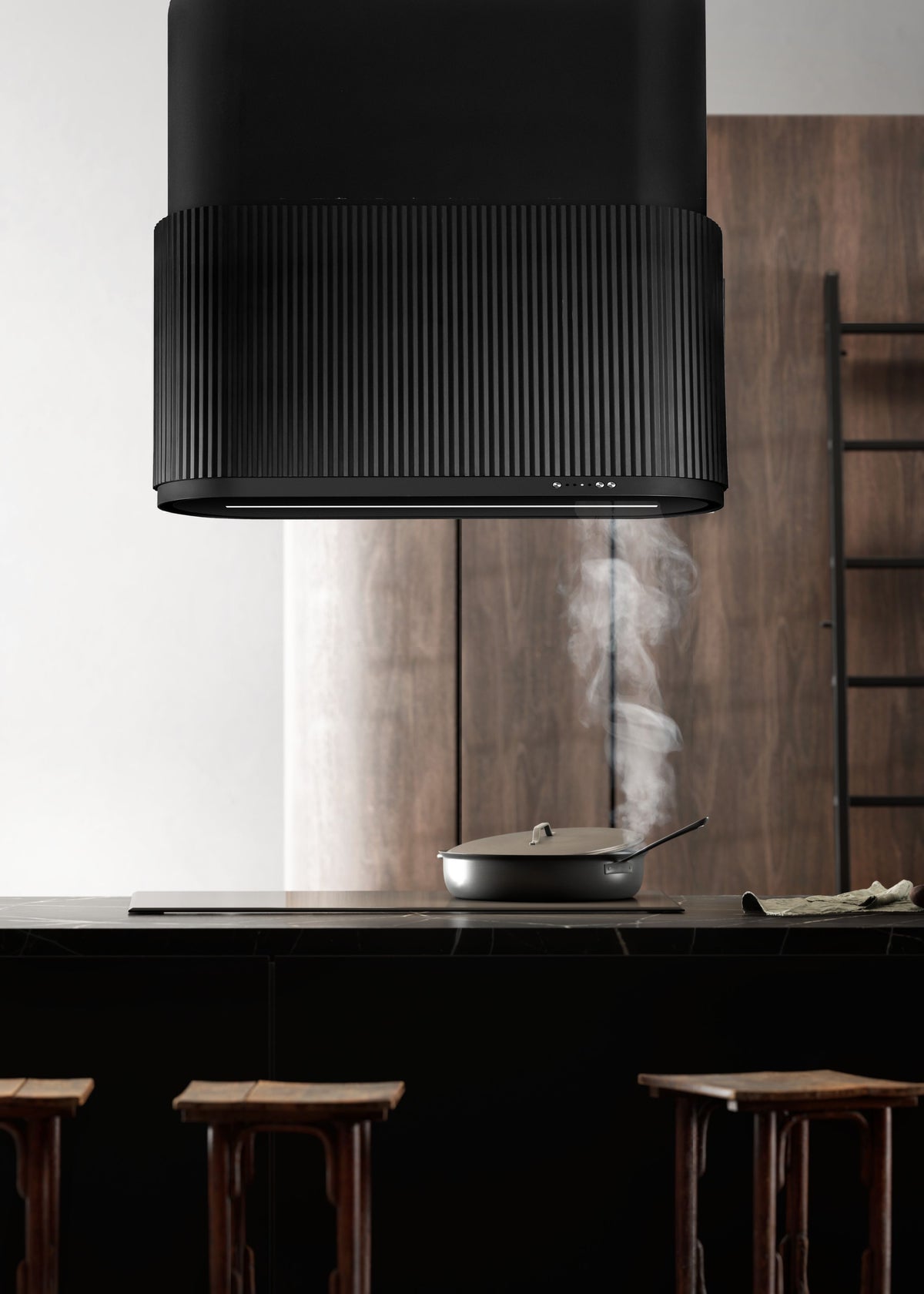

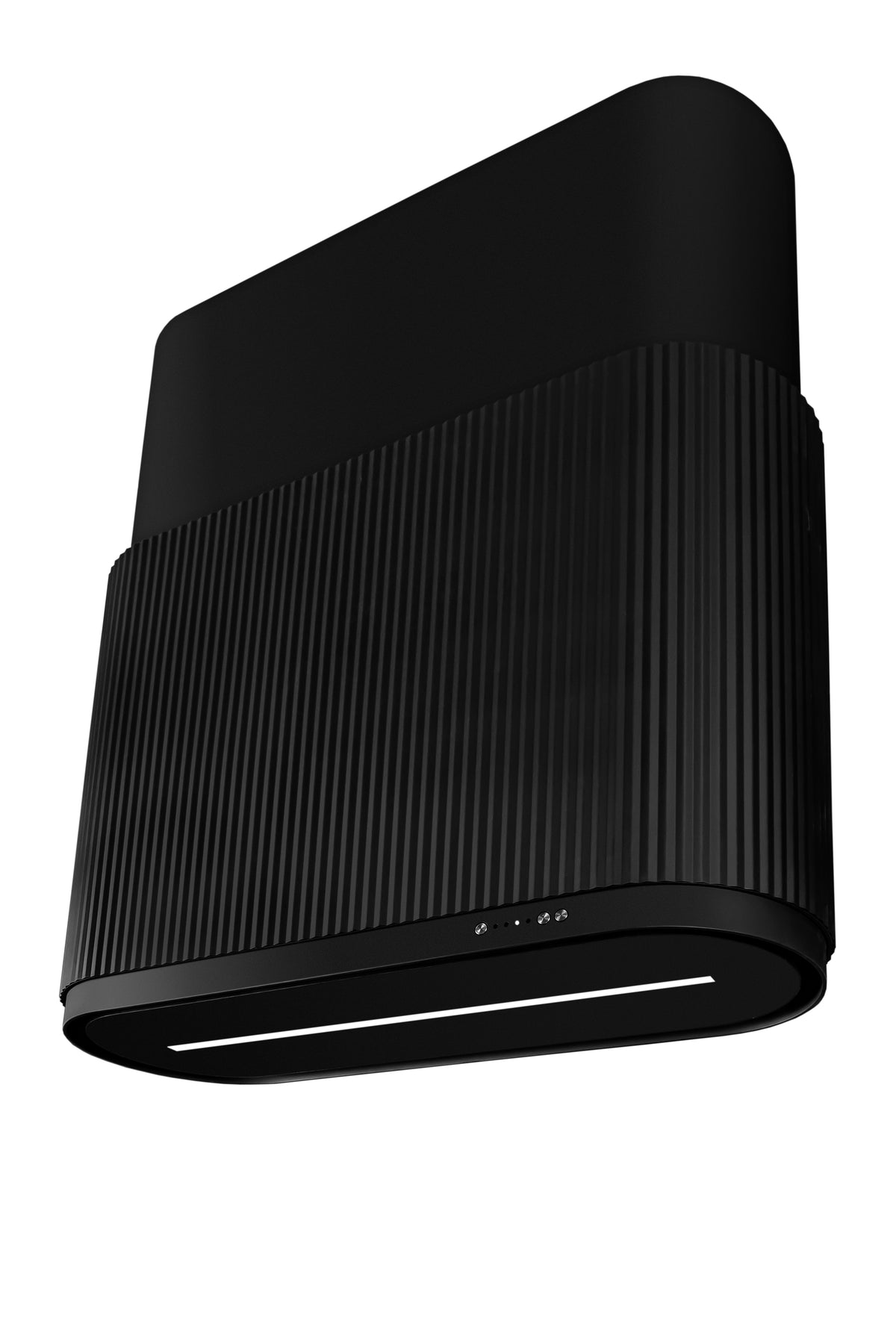

Schweigen Design SDISAU-9 90cm Wide Aura-W Island Rangehood

• Fluted 90cm island canopy: The 902mm-wide suspended form creates a distinctive architectural focal point.
• 1080m³/h airflow: Provides high-capacity onboard extraction for airborne grease, steam and odours.
• Brushless onboard motor: Supports energy-efficient ventilation within the canopy.

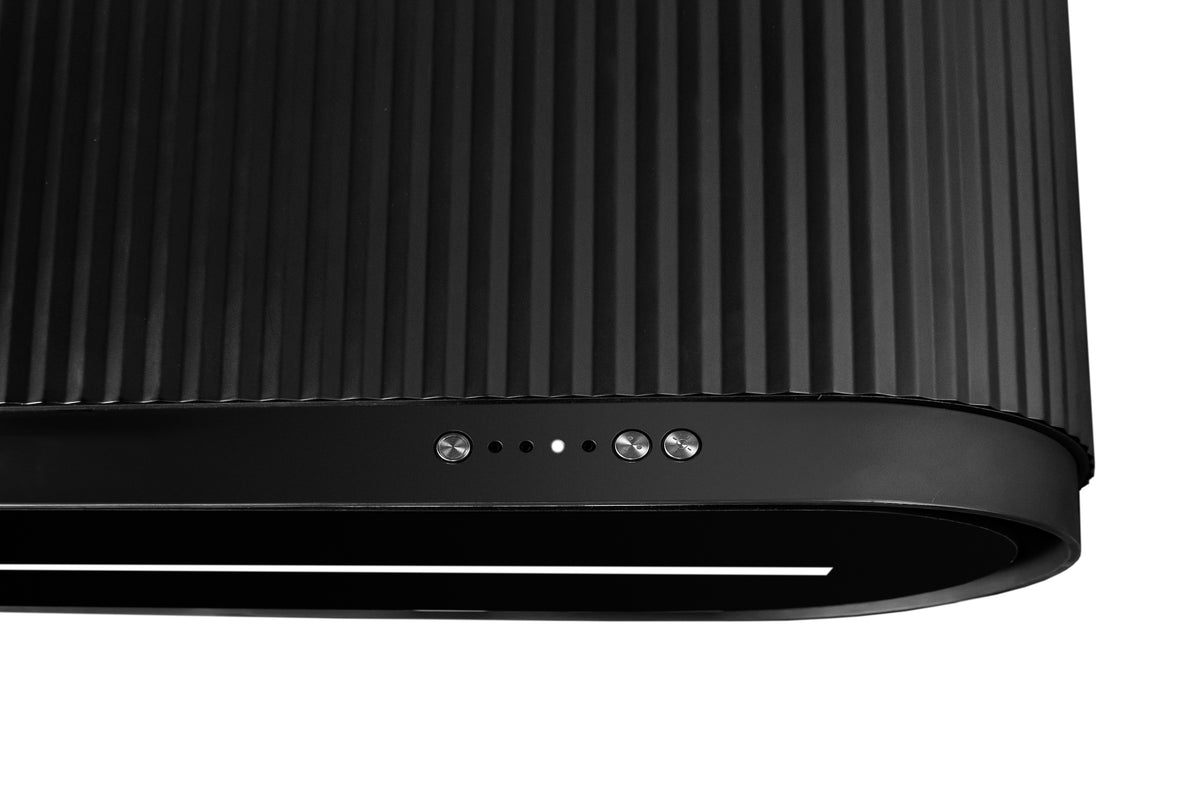

• Gesture and touch control: Allows convenient adjustment without repeatedly handling the finished surface.
• Automatic sensing: Can respond to cooking conditions and vary extraction automatically.
• Warm2Cold LED: The 5W light adjusts from warm 2900K ambience to cool 6000K task illumination.
• Removable fine-mesh filter: The supplied filter captures airborne grease and supports straightforward routine cleaning.
• Hand-painted matte steel: Anti-fingerprint protection assists with everyday presentation.

• Four extraction levels: Select from three regular fan speeds plus a higher-output boost setting for intensive cooking.
• Automatic mode: Integrated sensing can respond to cooking conditions and adjust extraction automatically.
• Gesture Control: Operate key functions without touching the control surface, helping keep the finish cleaner while cooking.
• Warm2Cold lighting: Adjust the LED colour temperature from warm 2900K illumination to cool 6000K task lighting.
• Delay and refresh modes: A 15-minute delay-off function clears residual vapour, while refresh mode periodically ventilates the kitchen.

• Brand: Schweigen Design
• Model: SDISLAU-9 (technical model SDISAU)
• Product type: Island rangehood
• Motor type: Integrated onboard brushless motor
• Maximum airflow: 1080m³/h
• Fan speeds: 4, including boost
• Controls: Gesture Control, automatic mode and remote/touch control as specified
• Lighting: 1 × 5W Warm2Cold LED, 2900K-6000K
• Filtration: 1 × fine-mesh grease filter
• Electrical supply: 220-240V, 50Hz
• Ducting outlet: 150mm

• Professional installation: Installation and electrical connection must be completed by an appropriately qualified and authorised professional in accordance with local requirements.
• Cooktop positioning: Centre the rangehood over the cooking surface to support effective capture of steam, smoke and airborne grease.
• Minimum clearance: Allow at least 600mm above an electric cooktop or 650mm above a gas cooktop, unless the cooktop manufacturer requires more.
• Induction guidance: Schweigen recommends at least 700mm above induction cooking surfaces to help manage condensation.
• Ducting: Use 150mm ducting vented outdoors. Keep the ducting taut, avoid reductions and restrictive bends, and limit the run to approximately 4 metres where practical.
• Service access: Keep controls, electrical components and connection points accessible for future servicing.

Warranty coverage

Schweigen is a 100% Australian-owned company specialising in German-engineered silent rangehoods. Every product is backed by a comprehensive manufacturer's warranty, giving you confidence in the quality and performance behind every appliance.

• Schweigen silent rangehoods (standard range): 5 years — Parts and labour
• Schweigen Design rangehoods: 5 years — Parts and labour
• Schweigen X & Exclusive rangehoods: 3 years — Parts and labour
• Schweigen onboard BBQ alfresco rangehoods: 3 years — Parts and labour
• Schweigen SteelFlex™ ducting: Limited lifetime — Against fair wear and tear from normal use
• Filters & GU10 LED globes (purchased from 1 January 2017): Limited lifetime — Against fair wear and tear from normal use
• Isodrive® & Ecodrive® motors: Refer to individual motor warranty card
• Silent exhaust fans: Refer to silent exhaust fan warranty card

Proof of purchase is required for all warranty claims. The warranty applies to the original purchaser only and is not transferable. Warranty claims must be lodged within 10 business days of becoming aware of the fault.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products within the applicable warranty period
• Lifetime coverage on SteelFlex™ ducting, filters, and GU10 LED globes against fair wear and tear

What's not covered

• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Damage from power surges, incorrect voltage, or liquid spillage
• Moisture, condensation, or water build-up not caused by a manufacturing defect
• Unauthorised modifications or repairs
• Normal wear and tear
• Commercial use of domestic appliances without written Schweigen consent
• Products not purchased as brand new from an authorised Australian retailer

Conditions

• Must be installed by a qualified installer with appropriate licences and experience
• Must be installed using the correct high-flow vent and ducting size
• Must be used and maintained in accordance with the product manual
• Warranty claims must be lodged within 10 business days of becoming aware of the fault
• Proof of purchase must be provided with all claims
• The warranty applies to the original purchaser only

Making a claim

Claims can be submitted via the service request form at schweigen.com.au or by contacting Schweigen's customer support team on 1300 881 693. Please have your proof of purchase and product model and serial numbers ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Aura-W is a 902mm-wide island model using an integrated onboard motor. It is not an off-board Isodrive Silent configuration.

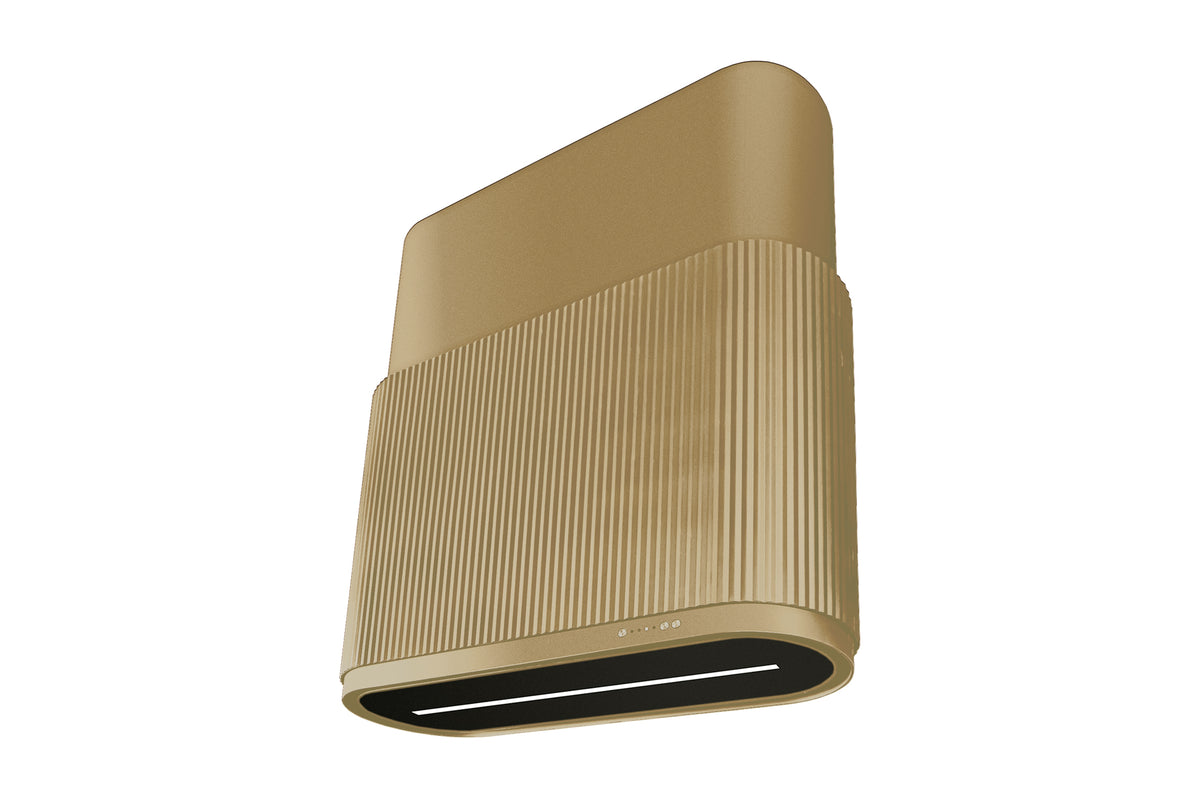

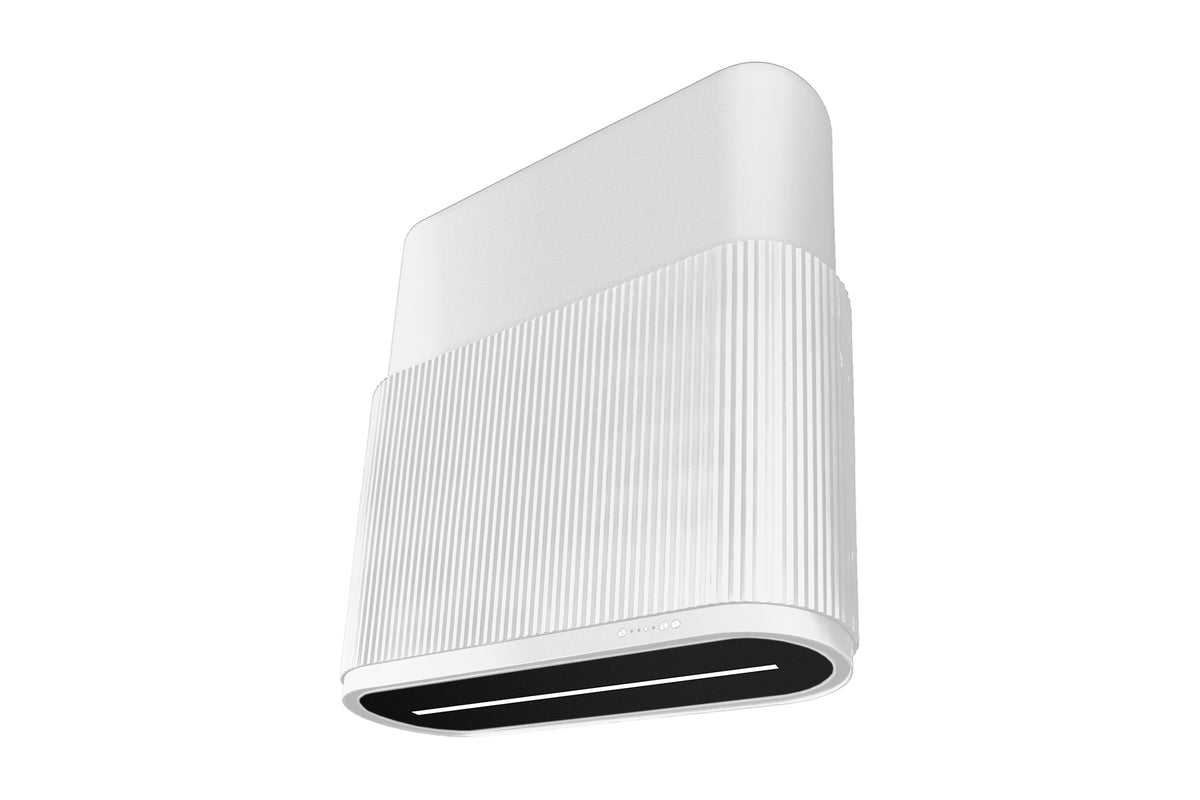

The supplier's technical documentation identifies the design as Aura-W under technical model SDISAU, while the saleable Black, White and Gold variants use the SDISLAU-9 SKU prefix.

• Rangehood: Canopy and integrated onboard brushless motor.
• Fine-mesh filtration: 1 × fine-mesh grease filter
• Remote control: Supplied for convenient operation.
• Installation components: Mounting template, warranty card, instructions and screws pack.
• Ducting components: 150mm × 4m Schweigen SteelFlex™ ducting and 2 × steel ring clamps.

• SPECIFICATIONS SHEET (PDF)
• USER & INSTALLATION MANUAL (PDF)
